5-4 Upgrading the Desktop Computer
Writer: Holly Jahangiri Saved by: Holly Jahangiri Saved date: 07/16/97 2:46 PM
Pages: 28 Words: 3162 Template: c:\msoffice\templates\comm.dot
File Name Ch5.doc Part Number 278019-002
Removing the Front
Bezel The front bezel is attached to the computer chassis with release
latches that are integrated into the bezel. To remove the front
bezel, complete the following steps:
1. From the inside of the chassis, push down on the release
latches (see inset) and push the bottom of the bezel out and
away from the chassis.
2. Slide the front bezel up to separate it from the chassis.

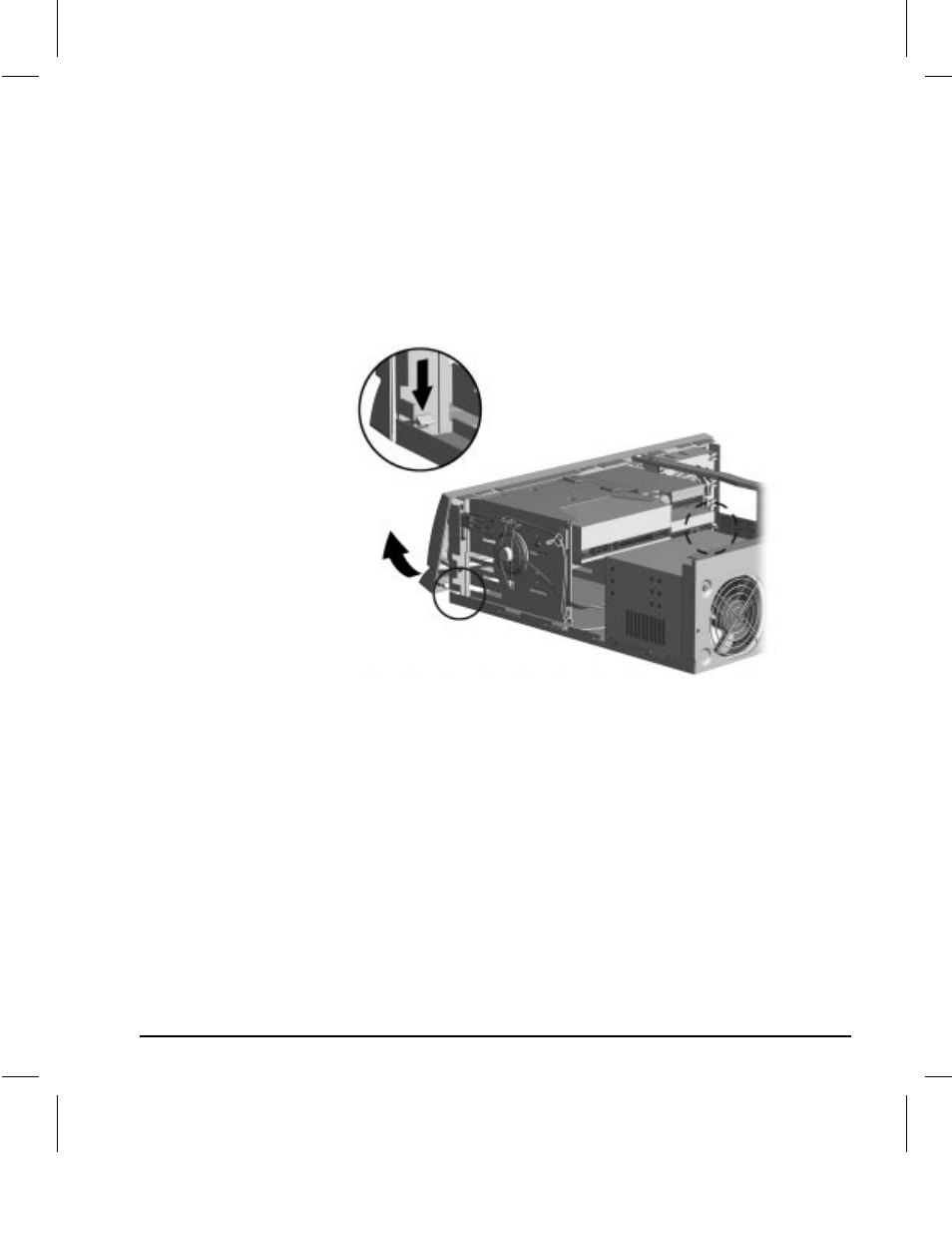

Removing the Front Bezel
To install the front bezel, reverse the above procedure. Ensure
that the hinge points at the top of the bezel and the release
latches at the bottom of the bezel are properly positioned before
latching the bezel into place.
