Reference Guide 6-5
Writer: Holly Jahangiri Saved By: ACastle Saved Date: 07/25/97 2:13 PM
Pages: 28 Words: 3072 Template: c:\msoffice\templates\comm.dot
File Name Ch6.doc Part Number 278019-001
Removing the Front
Bezel
The front bezel is attached to the computer chassis with release
latches that are integrated into the bezel. To remove the front
bezel, complete the following steps:
1. From the inside of the chassis, push in the release latches
1
and push the side of the bezel out and away from the
chassis
2.
2. Rotate the front bezel out from the chassis, then slide it to
the left.
3. Separate the bezel from the chassis.

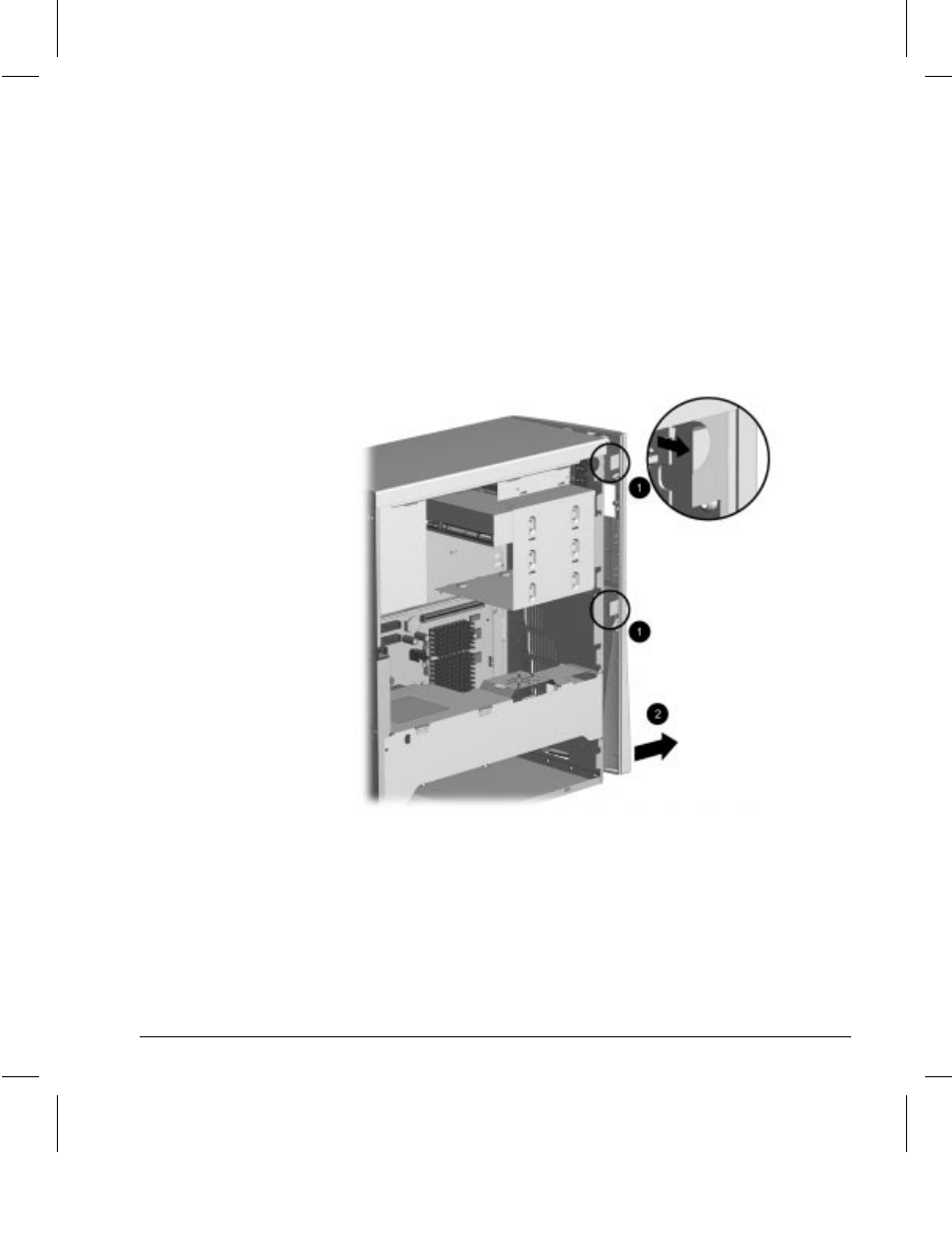

Removing the Front Bezel
To replace the bezel, reverse the above procedure. Ensure that
the hinge points at the side of the bezel and the release latches
are properly positioned before latching the bezel into place.
