Welch Allyn TMX428CP Trackmaster Medical Treadmill - User Manual User Manual
Page 59
TRACKMASTER
Parts List with Part Numbers
July 2014
TMX428 Owner’s Manual
8-13

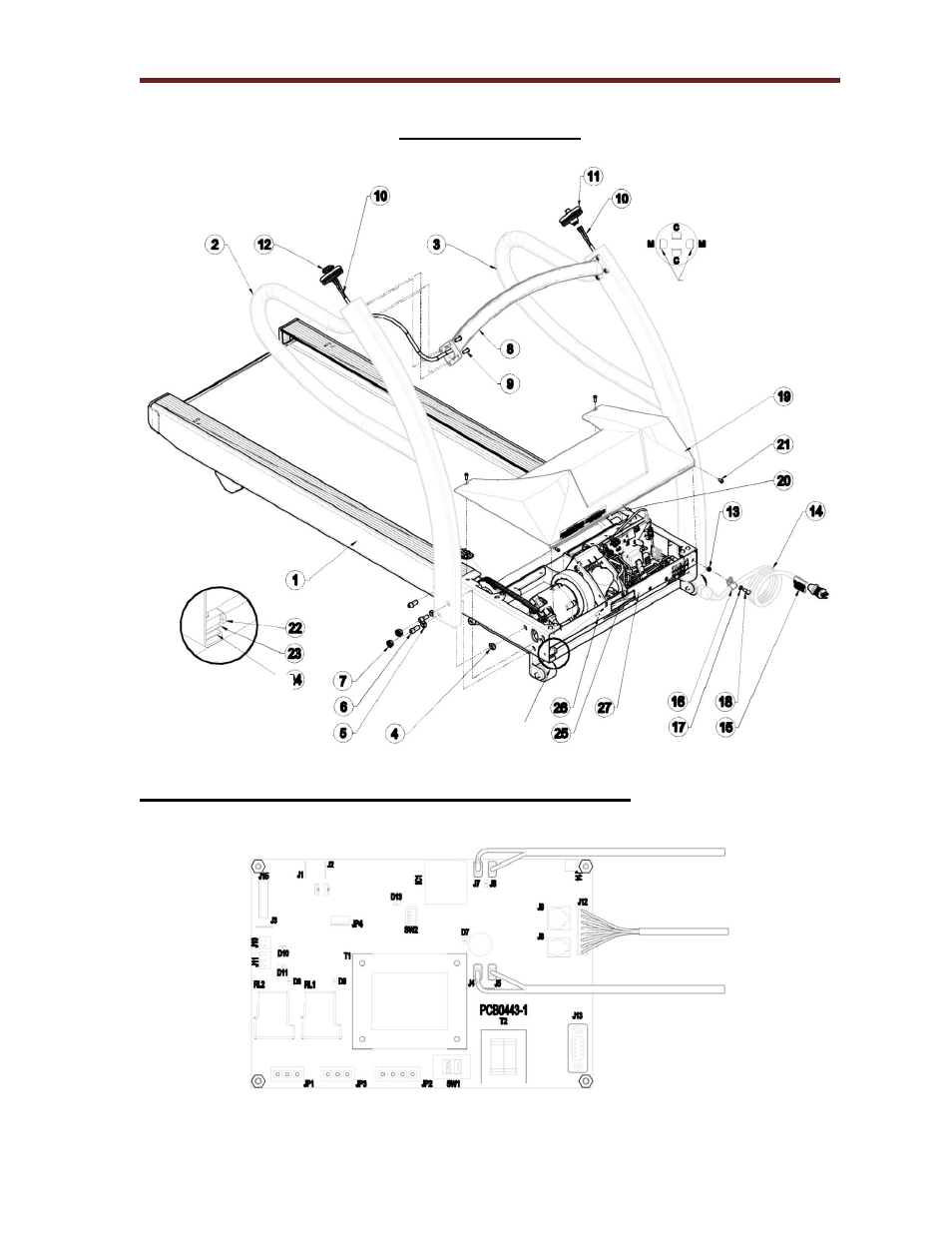

Final Assembly
Final Assembly Circuit Board Connection
DETAIL 1
SEE DETAIL 1
OUTSIDE CONTACT
CONNECT CABLE TO PULL TETHER
CONNECT CONTACT I&I ROUTE
THRU LEFT HANDRAIL
CONNECT CABLE TO ESB
ROUTE WIRES THRU
CENTER & LEFT HAND
CONTROLLER OPTION
CONNECT CONSOLE
COMMUNICATION CABLE TO J12
CONNECT EMERGENCY STOP
CABLE TO J4 & J5
CONNECT PULL TETHER
CABLE TO J7 & J6
