TRACKMASTER

Preventive Maintenance

July 2014

TMX428 Owner’s Manual

7-5

NOTE: The drive belt may stretch and loosen with regular use. This looseness may

result in a flapping noise under the hood.

1. MAKE SURE THE TREADMILL IS SWITCHED TO THE OFF

POSITION AND DISCONNECTED FROM ITS POWER OUTLET.

2. Remove the (3) #10-32 screws located on the bottom hood with

1

/

8

Allen wrench.

3. With the ¾” socket and wrench loosen the TENSION ADJUSTMENT

back nut.

4. Measure from the head of the ½”-13 bolt to the motor housing. The

spring compression should be 1-3/16” or 30mm.

5. Using a ¾” wrench turn the TENSION BOLT clockwise to compress

the spring. To decrease compression, turn the wrench counter
clockwise.

6. When the spring is compressed to 1-3/16” or 30mm, tighten the

TENSION ADJUSTMENT back nut.

NOTE: Failure to lock the TENSION ADJUSTMENT Back Nut will allow the drive

belt tension to become loose.

7. When the treadmill is properly adjusted reinstall hood with

(3) each #8-32

screws.


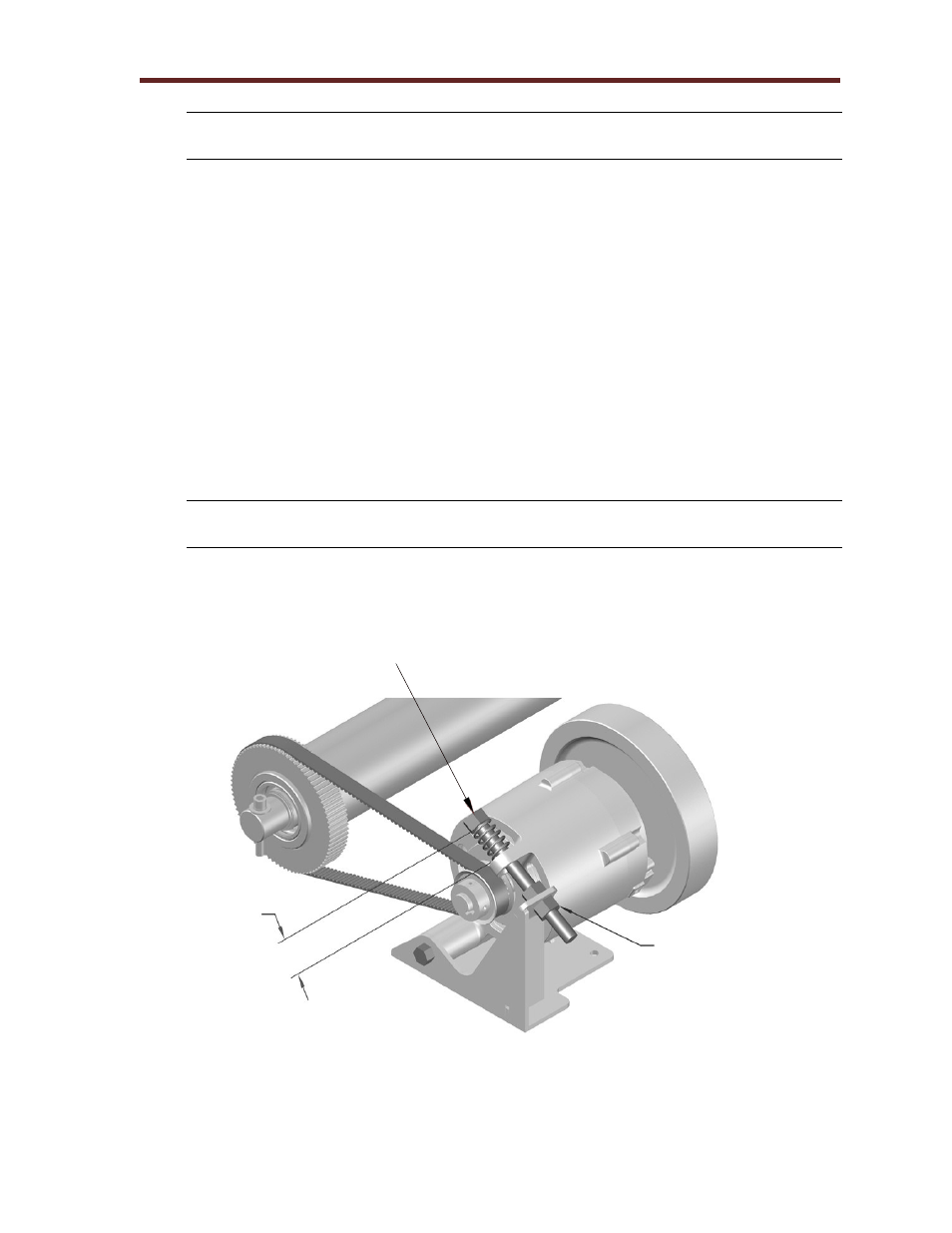

TENSION BOLT







1-3/16” OR 30mm SPRING
COMPRESSION

TENSION
ADJUSTMENT Back
Nut
