TRACKMASTER

Hi-Pot Test

July 2014

TMX428 Owner’s Manual

4-1

Hi Pot Test Instructions


This test must only be performed by a qualified electrician.

Your Trackmaster

®

Treadmill has been Hi-Pot tested at the factory just prior to shipment and

found to be within specifications. However, some facilities require Hi Pot test verification
before the treadmill is put into service. The following instructions must be followed to
prevent permanent damage to the Trackmaster

®

electronic control system. Failure to follow

these instructions will void your warranty.

NEVER USE AN AC HI-POT TESTER ON THIS TREADMILL

!

Using an AC HI-Pot tester will permanently damage the DC
motor controller board rendering the treadmill inoperable.

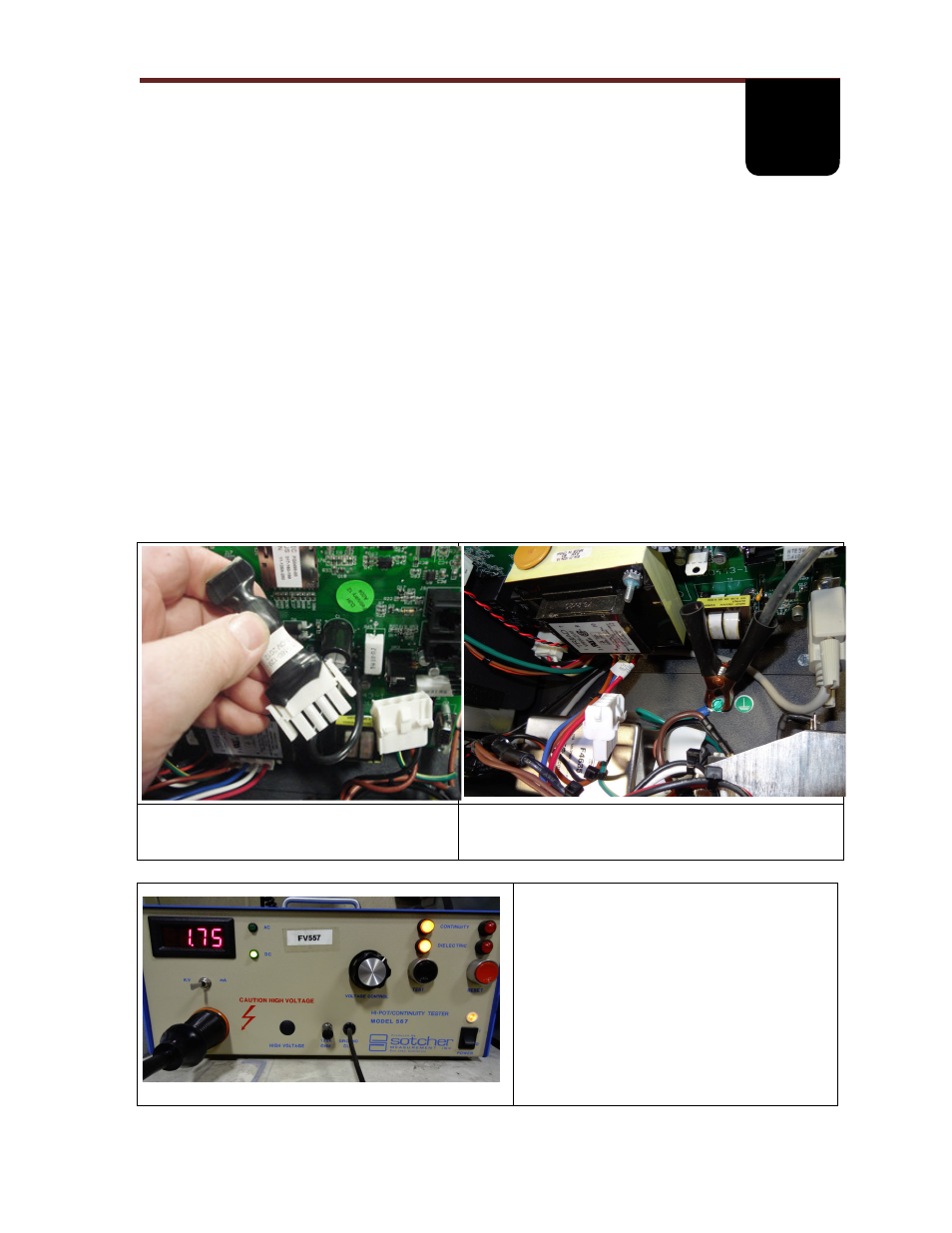

Hi-Pot test instructions for Treadmills

1. Unplug the surge suppresser from the

main wire harness.

2. Attach DC Hi-Pot tester ground clip to a known

chassis ground on the treadmill.

3. For 110V models: Test at 1.75 KV DC

for 60 seconds. This is equivalent to
1240 VAC.

4. For 220V models: Test at 2.10 KV DC

for 60 seconds. This is equivalent to 1488
VAC.

The tester should register a PASS for
either test.
