TRACKMASTER
July 2014
SEE NOTE 3
SEE NOTE 1
Parts List with Part Numbers
TMX428 Owner’s Manual

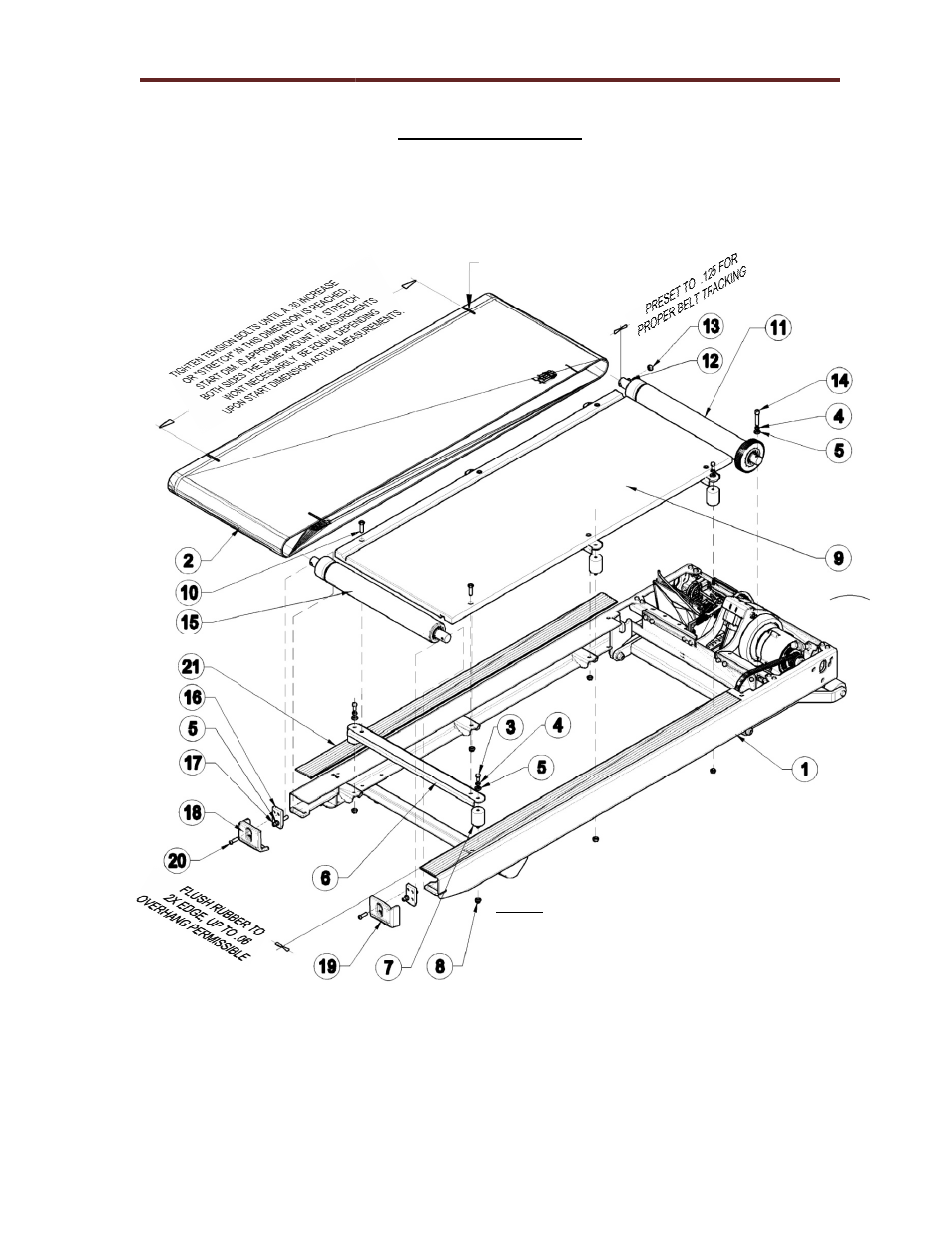

Deck Assembly
STRETCH ADJUSTMENT MARKS 4X
NOTES:
1. ADJUSTMENT SCREWS MUST BE MATCH
TIGHTENED. PROPER TENSTION
WHEN BELT CAN’T SLIP ON PULLEYS WHEN IN
OPERATION ACHIEVED WHEN BELT CAN’T SLIP ON
PULLEYS WHEN IN OPERATON.
2. ADJUST DRIVE BELT TENTION PULLING ALL FREE
PLAY OUT OF BELT. DO NOT OVER TIGHTEN
CAUSING THE BELT TO STRETCH.
3. MOVE REAR PULLEY SIDE TO
TO OBTAIN FRONT TO REAR BELT ALIGNMENT
AND TRACKING.
Parts List with Part Numbers
8-11
SEE NOTE 2
INSTALL CAMBER
UP
ADJUSTMENT SCREWS MUST BE MATCH
TIGHTENED. PROPER TENSTION IS ACHIEVED
WHEN BELT CAN’T SLIP ON PULLEYS WHEN IN
OPERATION ACHIEVED WHEN BELT CAN’T SLIP ON
PULLEYS WHEN IN OPERATON.
ADJUST DRIVE BELT TENTION PULLING ALL FREE
PLAY OUT OF BELT. DO NOT OVER TIGHTEN
CAUSING THE BELT TO STRETCH.
MOVE REAR PULLEY SIDE TO SIDE IN CHANNELS
TO OBTAIN FRONT TO REAR BELT ALIGNMENT
