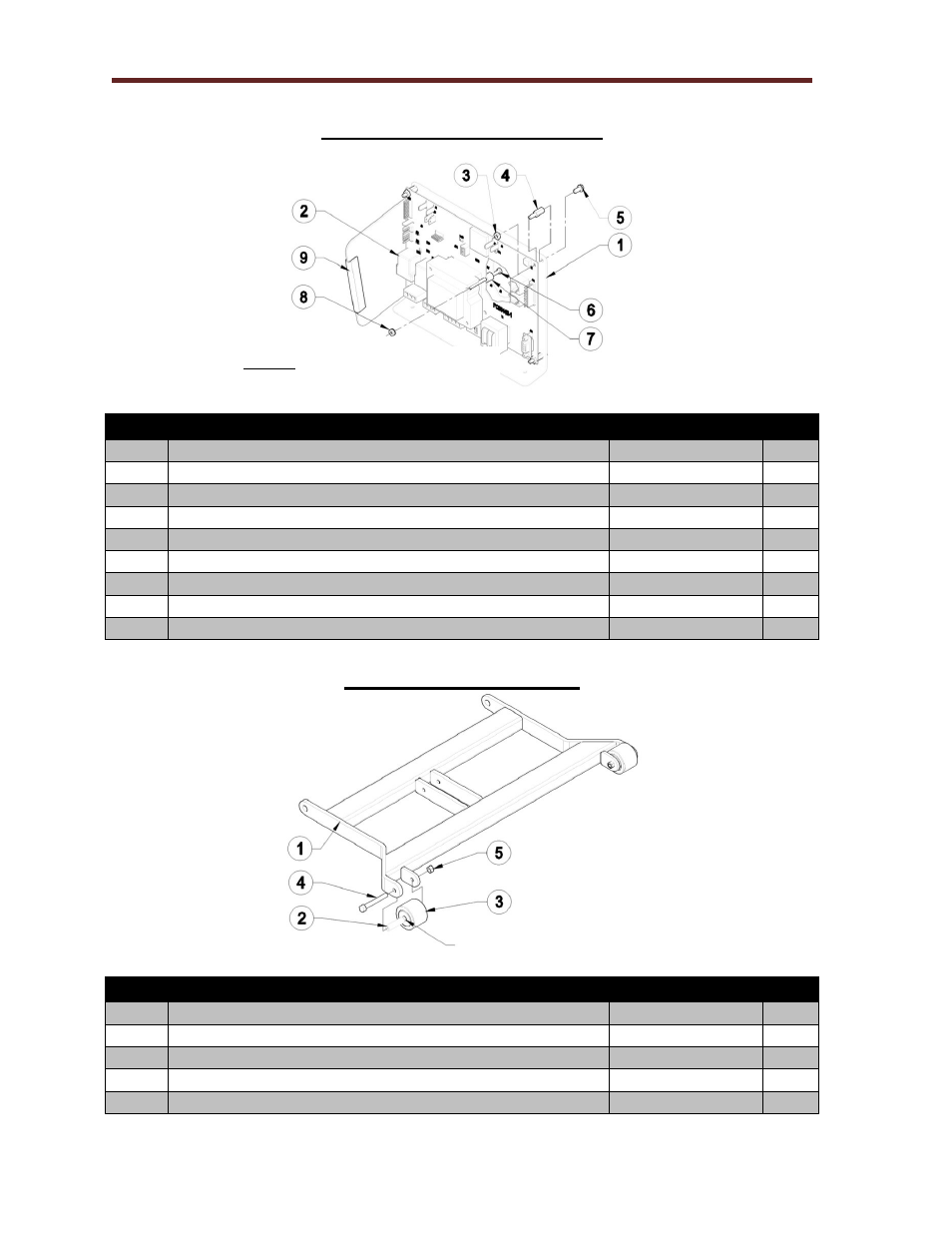

Parts List with Part Numbers
TRACKMASTER
8-2
TMX428 Owner’s Manual
July 2014
Circuit Board Assembly
Item
Description
Part Number Qty
1
Bracket Circuit Board
317-709-001
1
2
Board FG0495-0 Universal Power Supply
317-160-199
1
3
HN #8-32 Nylon
001-1763
4
4
Mount Inverter Isolation
317-160-040
4
5
HHWHTS #8-32 x .375
001-1744
4
6
RHMS #6-32 x 2.5” Lg
001-1890
1
7
Standoff Round .50 Lg .166 ID
001-1854
1
8
K-Lock Nut #6-32
001-1858
1
9
Trim Black 3” Lg
001-102-044
1
Elevation Assembly
Item
Description
Part Number Qty
1
Elevation Weldment TMX428
317-702-002
1
2
Spanner Wheel
317-160-054
2
3
Wheel Landing Gear
317-160-005
2
4
HHCS 3/8-16 x 3.25 Lg Gr5
001-1519
2
5
NLN 3/8-16
001-1430
2
NOTES:
APPLY BLUE LOCKTITE
THREADLOCKER TO ITEM 8
APPLY MOLY BASED GREASE 2X
