TRACKMASTER Parts List with Part Numbers
July 2014 TMX428 Owner’s Manual 8-1
Parts List with Part Numbers

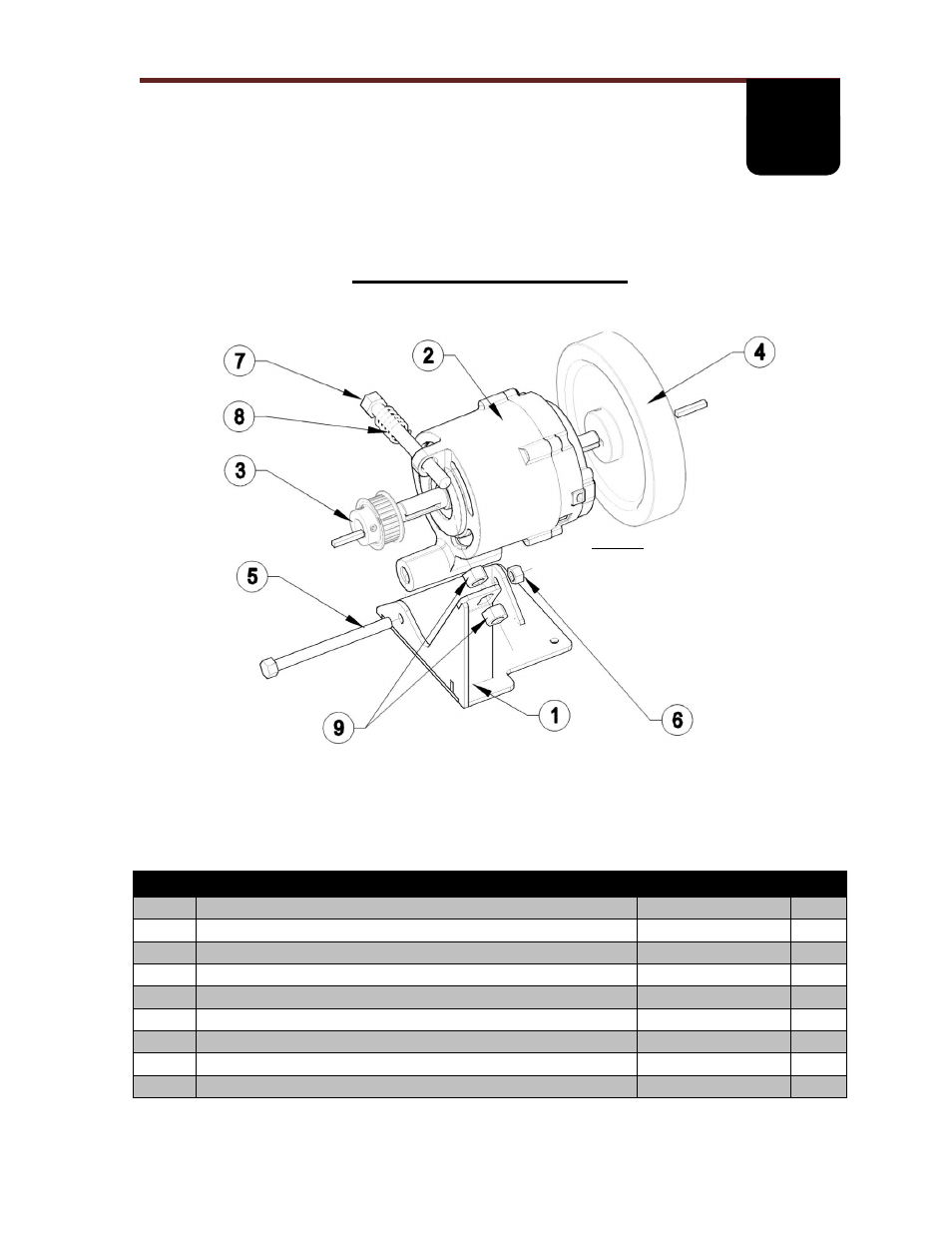

Motor Mount Assembly
Item Description Part Number Qty
1 DC Motor Base 317-701-001 1
2 Motor DC Servo PMCFA-00101-03 317-160-197 1
3 Sprocket Drive 530-5MGT-15 317-160-201 1
4 Flywheel DC W/Magnet .50 dia 317-160-200 1
5 HHCS 7/16-14 x 5” Lg 001-2332 1
6 NLN 7/16-14 001-2333 1
7 HHCS ½-13 5” Lg All Thread 001-2331 1
8 Spring Motor Tension 317-160-218 1
9 HN ½-13 Gr5 001-1390 2
NOTES:
1. TIGHTEN SET SCREWS ON KEY WAY OF
THE FLYWHEEL FIRST THEN TIGHTEN
THE SECOND SET SCREW.
2. WHEN TIGHTENING ITEM 5 & 6
CONTINUE TIGHTENING UNTIL MOTOR
CANNOT MOVE SIDE TO SIDE.
