Operating Instructions

TRACKMASTER

6-4

TMX428 Owner’s Manual

July 2014


WORKOUT GRAPHICS

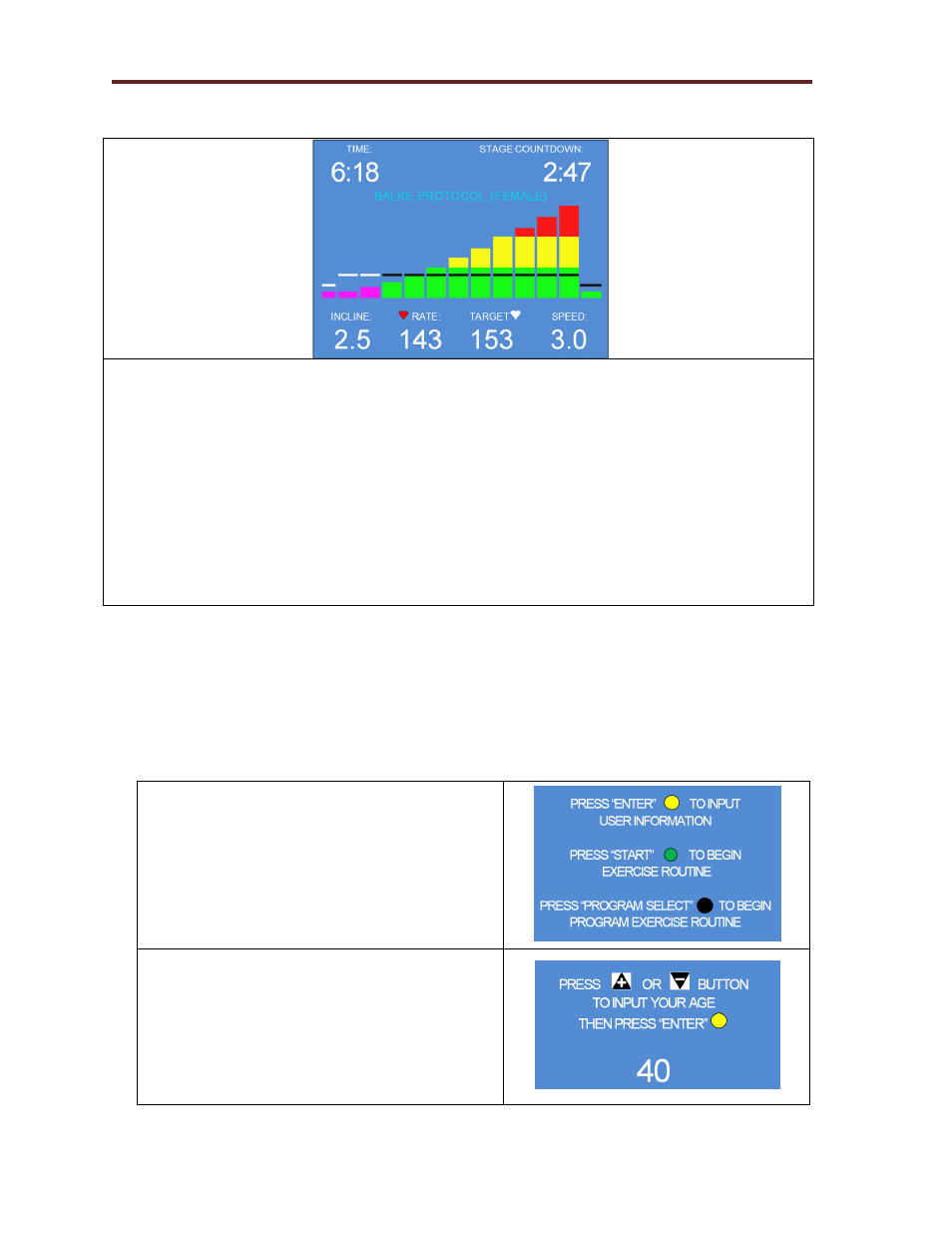

1. The entire workout is represented in the form of a colored bar graph which depicts increasing

workout intensity as well as workout progression and current treadmill settings. These values
can be displayed in either Metric or English measurements.

2. Segments that have been completed will turn to MAGENTA. In the example above, the first two

segments of the workout have been completed leaving (7) segments yet to complete.

3. The GREEN portion of the bar represents an incline between 0 and 10%
4. The YELLOW portion of the bar represents an incline between 10% and 18%.
5. The RED portion of the bar represents an incline from 18% to 25%.
6. The BLACK horizontal bars represent the running belt speed. They will turn to WHITE when

the segment is completed.



MANUAL OPERATION:

The default start-up screen allows the user to bypass the user data by simply pressing the
START button. To enter user data, complete steps 1-16. The user interface screen easily
leads the user through the appropriate steps to achieve a desired operation.

1. Press the ENTER button to input user

information.

2. Optionally, press the START button to start

the treadmill in a non-defined run mode. OR-

3.

Press the PROGRAM SELECT button to
view and select a Built-In routine. Go to step
15.

If you opted to input your user
information, follow the next 12 steps

4. Press the + or – button until the desired

age appears on the screen.

5. Press the ENTER button to continue.
