CardioPerfect Workstation

SpiroPerfect Module

– User Manual

DIR 80012334 Ver. F

55 / 95

9.8

MVV Tab

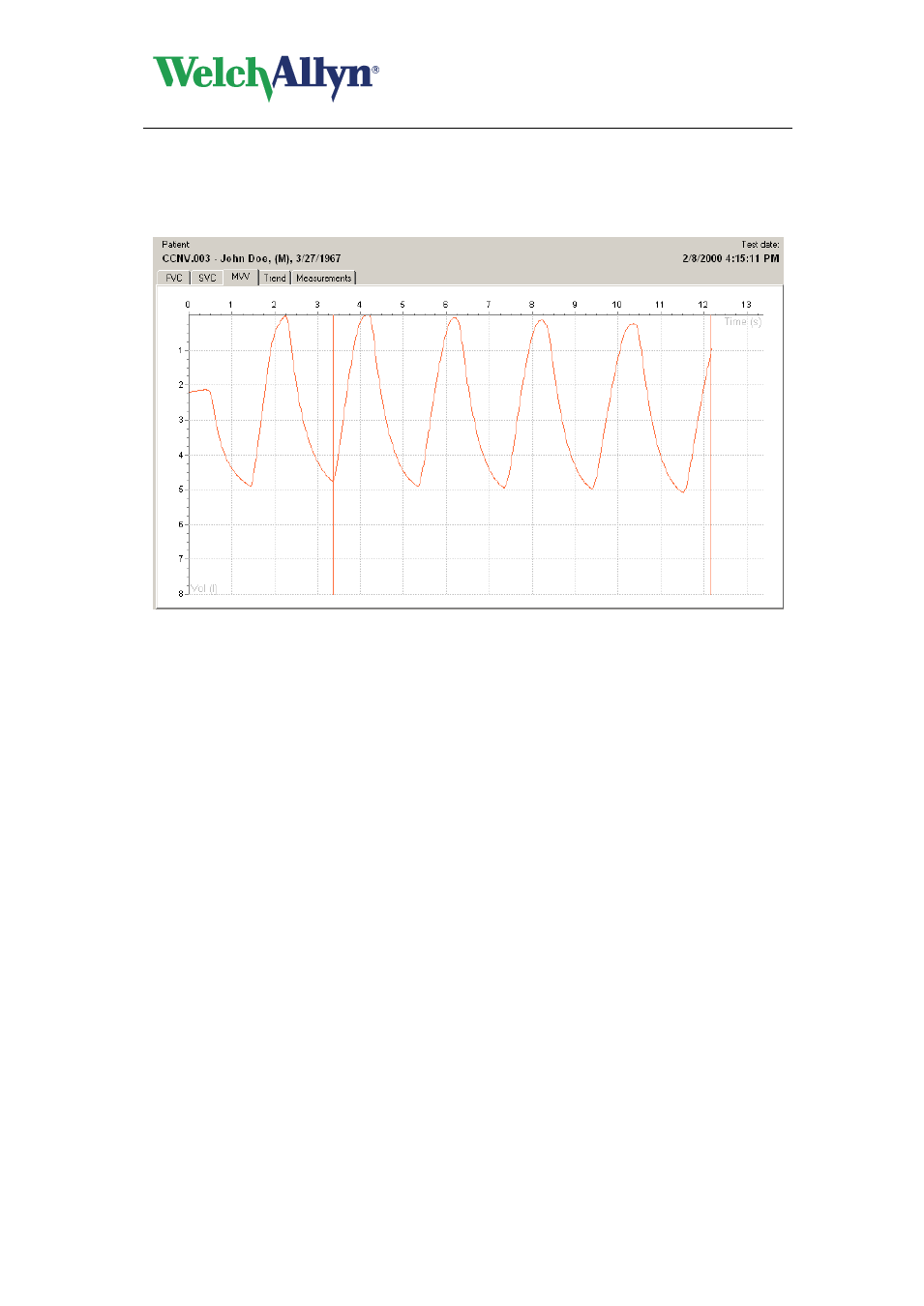

Figure 9.11 MVV Tab

MVV Test
Review the results under the MVV tab.
Only volume/time (spirogram) graphs are displayed along with six MVV parameters.

Calipers (vertical lines) mark the beginning and the end of the ventilation volume (not the tidal
area).

Note: Calipers can be manually adjusted. If so, affected parameters will automatically be
recalculated.

Tip: You can select or deselect a curve in the parameters table.

If no MVV test is performed, the MVV tab is disabled.
