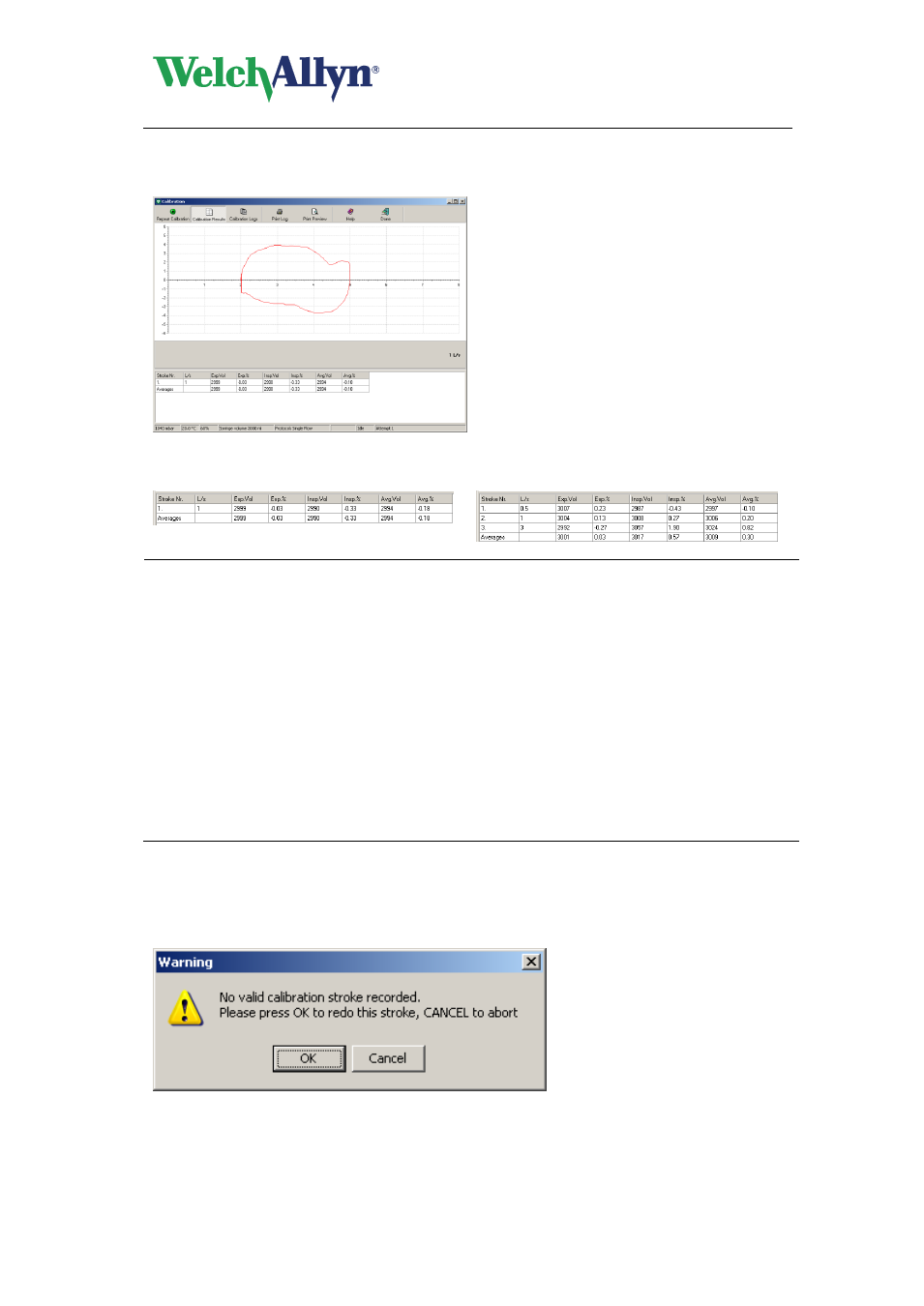

Figure 7.7 Single stroke calibration window with calibrated results
Figure 7.8a Single stroke calibration Figure 7.8b Three stroke calibration
Calibrated results table:
Selection
Description
Calibrate Press the "Calibrate" icon when you are ready to start the calibration
process. After one calibration, the icon label changes to ‘Repeat
Calibration’. It is recommended to repeat the calibration more than once.
Calibration
Results Press the Calibration Results icon to view the results of the calibration.
This can only be viewed between calibration attempts.
Calibration
Logs Press the Calibration Logs icon to view previous calibration attempts.
Print Log Press Print log icon to print the currently selected or displayed log.
Print Preview Press Print Preview.
The Print dialog box appears.
Press OK on the Print dialog box to the view the calibration results before
printing.
Done Press Done to exit the Calibration window.
7.4 Error Messages Associated with Failed Calibration
Figure 7.9 No valid stroke recorded
When the calibration attempt was not valid or if the volume read back by the sensor is not
within 35% of the selected syringe volume, the calibration fails.
This message also appears if the calibration attempt was performed in the wrong order, first
emptying the syringe instead of filling it before starting the calibration.
