CardioPerfect Workstation
SpiroPerfect Module
– User Manual
DIR 80012334 Ver. F 52 / 95
9.5.1 Parameters Area

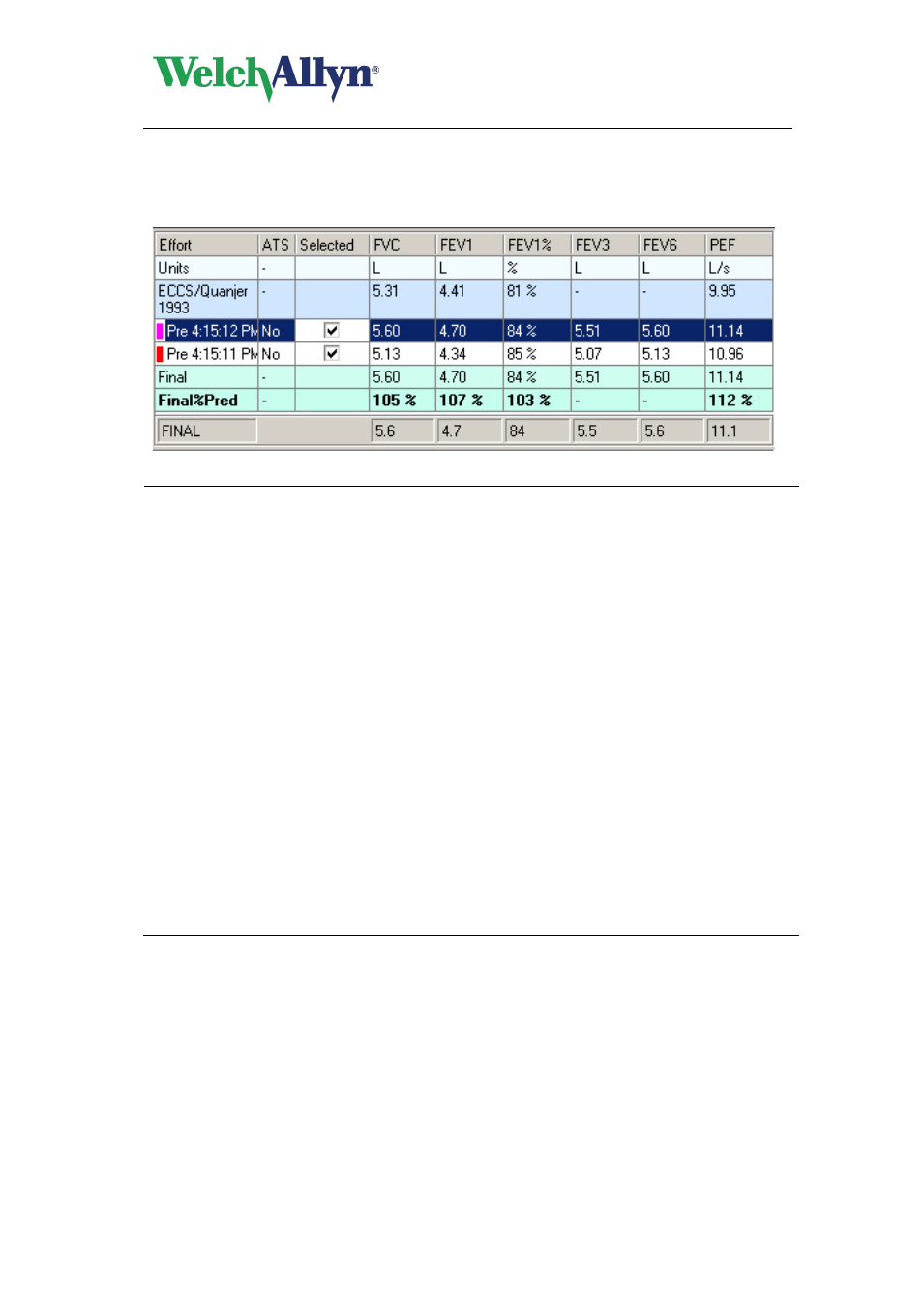

Figure 9.7 Parameters Table
Selection
Description
Parameters
area The Parameters area holds the parameters table. It is displayed under the
FVC, SVC MVV and Trend tabs.
The Parameters table lists up to six user-defined parameters. See page 24
to select the parameters.
The following information is displayed in the table:

predictive norm

ATS acceptability criteria

predictive values per parameter

effort stage & parameter value

final result parameter values

% predictive
 % change (in “All efforts” and “Post”view)
Effort The color in front of the effort name corresponds to the color of the curve in
the graph.
Select the check box in the selected row or column and the curve is
displayed in the graph. You can select to show the parameters in rows or
columns in the settings menu>viewing tab, see page 22.
Deselect a check box and the curve is hidden.
9.5.2 Interpretation Area
The interpretation area displays automatic or confirmed interpretation, medications,
comments, lung age (if enabled in the settings), and reproducibility information. See page 59
for more information.
