Introduction
Welch Allyn 1500 Patient Monitor
Information field
T
op line

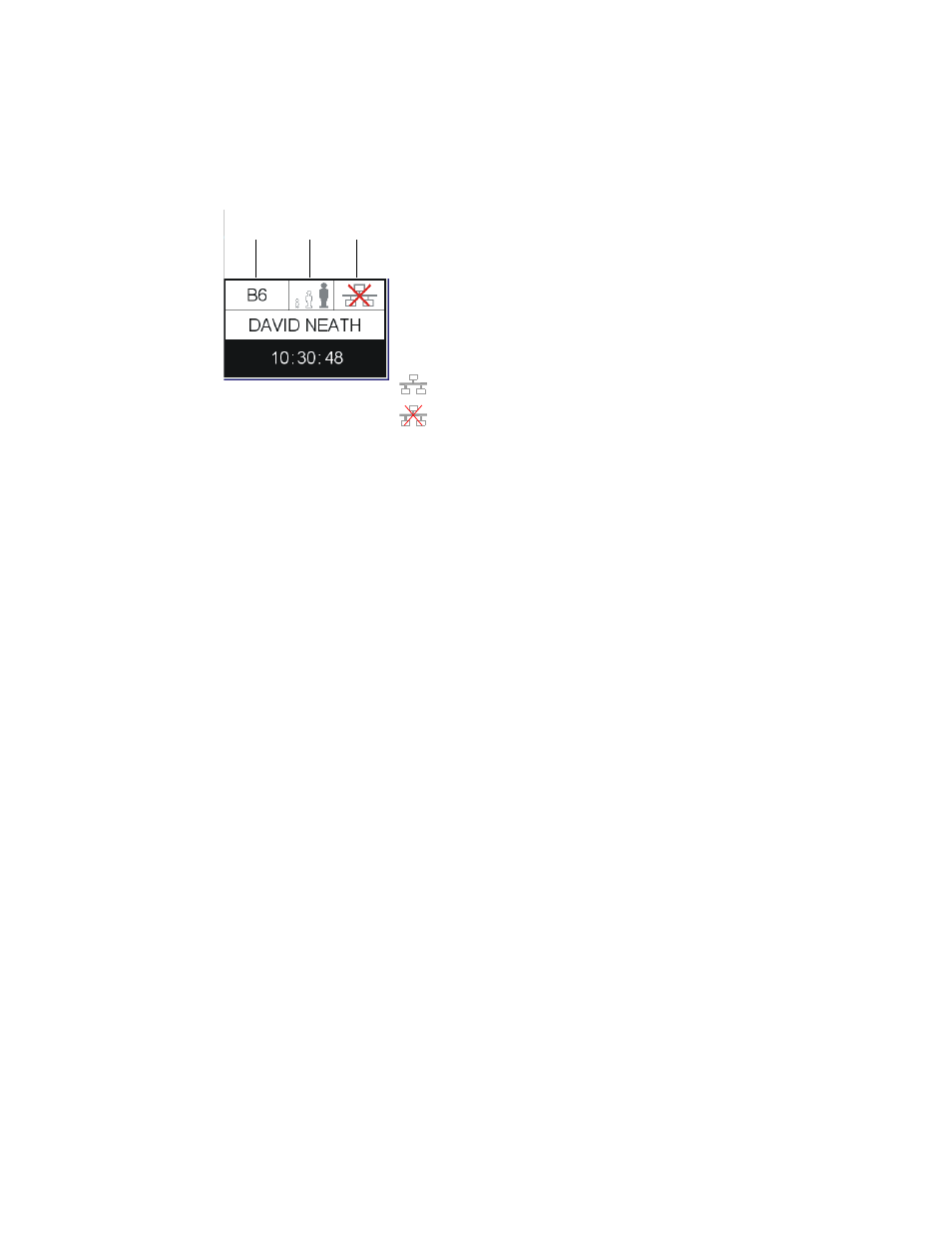

The left box on the top line (a) displays the patient’s room
number (entered in the patient information screen). If the
monitor is connected to the Acuity Central Station, the room
number is taken from Acuity.
The middle box (b) displays the patient mode (Neonatal,
Pediatric, or Adult) indicated by the highlighted icon.
The right box (c) indicates the monitor’s network connection:
Connected to Acuity Central Station.
Acuity enabled but no connection.
When the Acuity Central Station option is not enabled, this box
remains blank.
Middle line
Displays the patient name. If the monitor is connected to Acuity Central Station, the
patient name is synchronized with Acuity.
Bottom line
Displays the current time. When mains is not connected, a battery symbol is also
displayed to the left of the time (see
a
b
c
