Function buttons – Welch Allyn 1500 Patient Monitor v.1.4.X - User Manual User Manual
Page 16

12
Introduction
Welch Allyn 1500 Patient Monitor

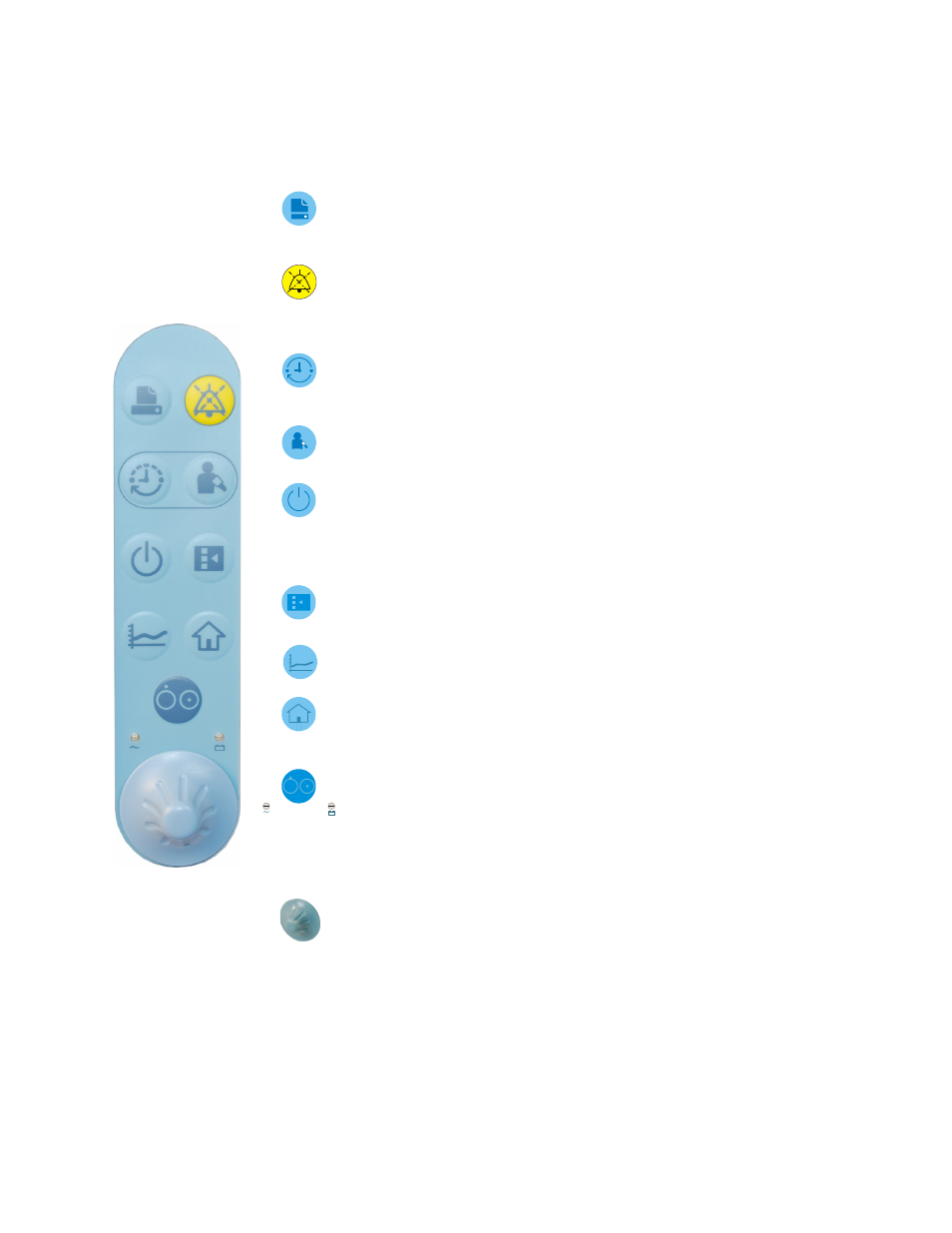

Function buttons
Print
Printout of three waveforms and all parameters. The waveforms and print settings are
defined in the printer
). Note that an auto printout
can also be obtained when a limit is violated. This is also defined in system setup.
Alarm silence
Silence / resume an audible alarm, or confirmation of displayed messages. The silence
time is defined in the Setup/Administrator menu (see
Note: It is also possible to stop the audible alarm indefinitely (see
NIBP measurement interval
Interval setup for non-invasive blood pressure measurement or switch-off of the interval
measurement (see
“Automatic blood pressure measurement” on page 65
). Saves patient
information.
NIBP measurement
Start or stop of the non-invasive blood pressure measurement (see
Standby
In standby mode patient monitoring is interrupted and the screen is blank. Monitoring is
resumed when any button is pressed.
Note when the monitor is connected to Acuity Central Station, different options are
given.
Setup
Display of the Setup menu. The required menu item can be selected by turning the trim
knob and pressing (see next page).
Trend
Displays trend data (see
Home
Pressing this button closes opened dialogues and returns to the monitoring screen.
Any settings that were changed in the opened dialogue screen are saved.
Pressing this button is the same as selecting
OK
on the opened dialogue screen.
ON/OFF
Press to switch the monitor on.
Press and hold for 4 seconds to switch the monitor off.
The LEDs below this button indicate:
•
Left LED - mains power is connected to the monitor.
•
Right LED - mains connected to the monitor and internal battery being charged.
•
(see
“Switching the monitor on or off” on page 19
Trim knob
The trim knob is used for navigation, value selection and value change. Use as follows:
1. Turn the trim knob to the left or right to select a field or value. A white frame appears around
the field.
2. Press the trim knob to open the menu of the selected parameter field or value.
3. Turning the trim knob to the left or right to select the desired value.
4. Press the trim knob to apply the changed value.
