12 SCT Weight Transmitter Operator’s Manual
2.1 Calibration

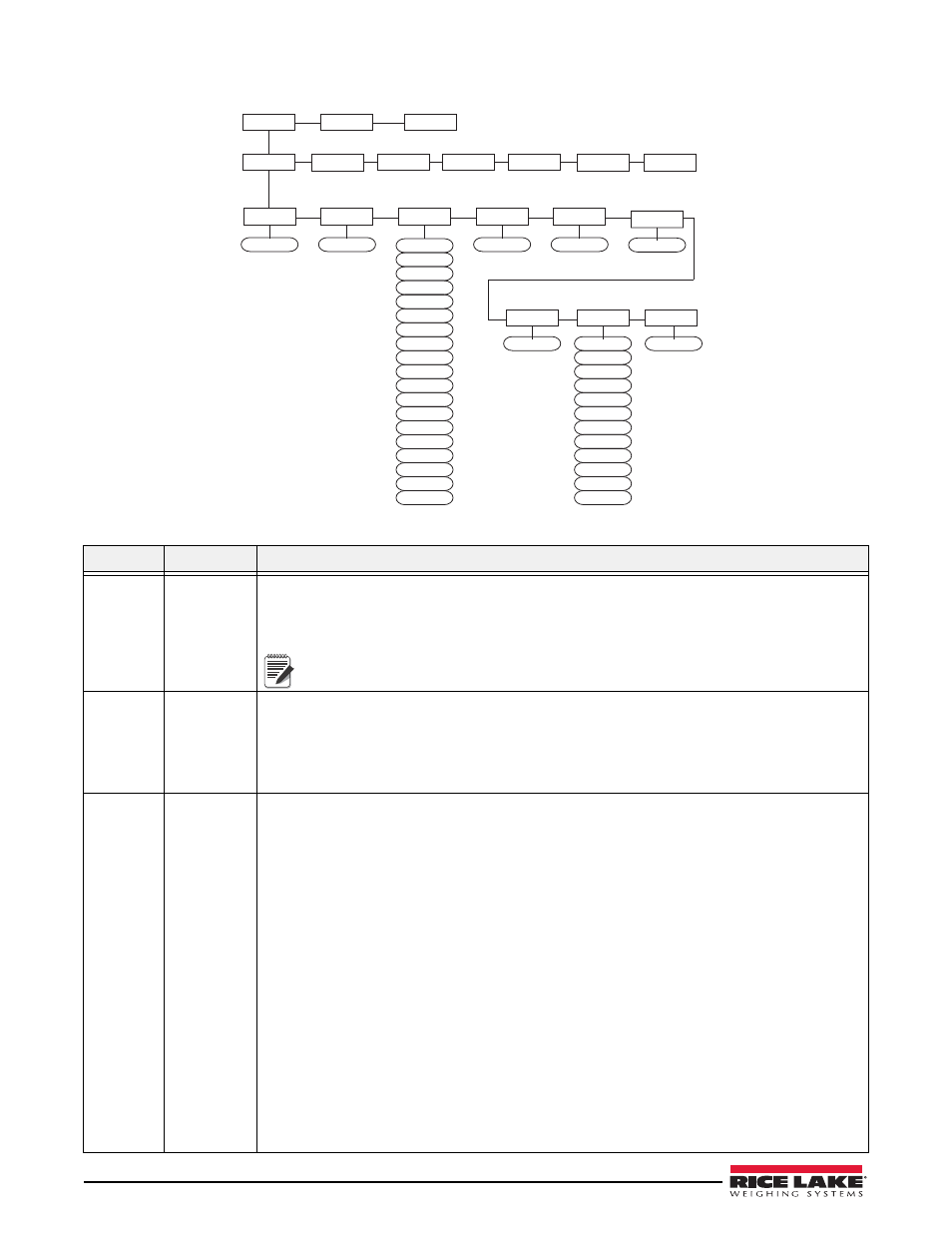

Figure 2-2. Calibration Menu Structure
Parameter Choices Description
FS-tEO
Enter #
0 =dENO *
System Full Scale is determined by multiplying one load cell capacity by the number of load cells
used. Example of system full scale value calculation:
4 cells of 1000kg ---->
FULL SCALE = 1000 X 4 = 4000
The instrument is supplied with a theoretical full scale value deno corresponding
to 10000. To restore factory values, set 0 as full scale.
SEnSI b
Enter #
0.50000
to
7.00000
2.00000 *
Sensitivity is a load cell rated parameter expressed in mV/V. Set the average sensitivity value
indicated on the load cells. Example of 4-cell system with sensitivity
2.00100, 2.00150, 2.00200, 2.00250;
enter 2.00175,
calculated as (2.00100 + 2.00150 + 2.00200 + 2.00250) / 4.
dI UI S 1
2
*
5
10
20
50
100
0.0001
0.0002
0.0005
0.001
0.002
0.005
0.01
0.02
0.05
0.1
0.2
0.5
Division (resolution) - the weight increment (display division size) that the scale counts by.
Selections are: 0.0001 and 100 with x1 x2 x5 x10 increments.
dI UI S
WEIGHt unIt COEFF
LItrE
bAr
AtN
PI ECE
nEUton
lb
OtHEr
HI LOG
HI LO-N
nEU-N
G
t
FS-tEO
Enter #
SEnS Lb
Enter #
NASS
Enter #
ZErO
Enter #
Enter # Enter #
I NP 0
Enter #
50
100
0.0001
0.0002
20
10
0.002
0.005
0.001
0.0005
2
5
0.02
0.05
0.01
0.2
0.5
0.1
1
FILtEr PArA 0 SErIAL tESt Out-In ANA LOG
000000 SEtP1
CALIb
PtArE
