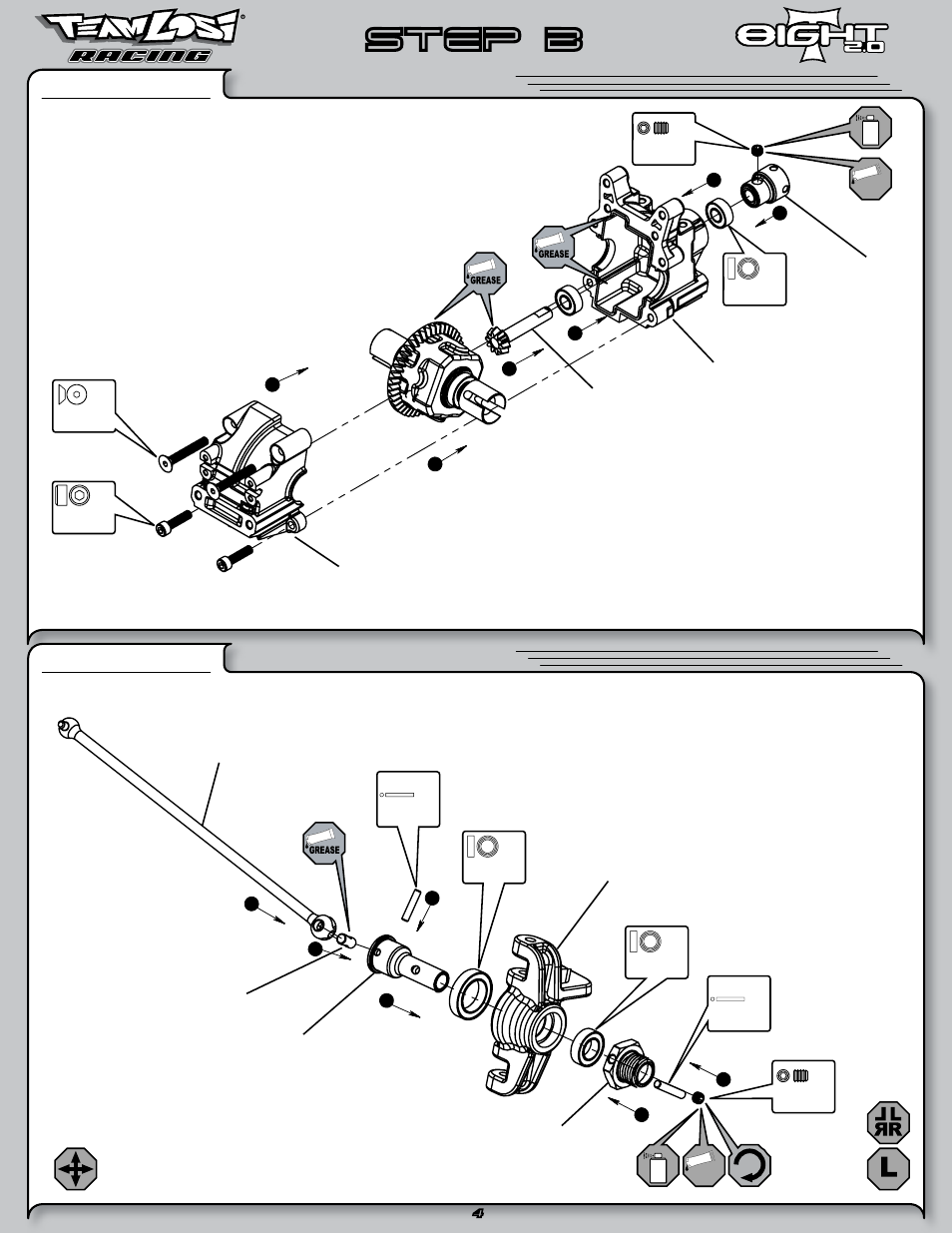

STEP B

Front Diff Install

STEP B-04

Front Spindle & CV Assembly

STEP B-05

To prevent fine dust from entering the

gearbox, apply a thin bead of grease

along the edge of the case as pictured.

LOSI-LOK

5-40 x 7/8"

A6273

x 2

5-40 x 1/2"

A6240

x 2

5x11x4mm

A6947

x 2

1/2” x 3/4"

A6953

x 1

8x14x4mm

A6945

x 1

C 8-32 x 1/8"

A6298

x 1

3 x 17mm

A3531

x 1

Solid

2.5 x 12.4mm

A3523

x 1

Solid

F 8-32 x 1/8"

A6296

x 1

A4427

Front Diff Case

A3514

Drive Adapter

A3507

Pinion Gear, Bevel

A4427

Front Diff Cover

A3586

Front Driveshaft

A3523

CV Couple

A3522

Axle

A1707

Left Spindle

A3530

Wheel Hex
