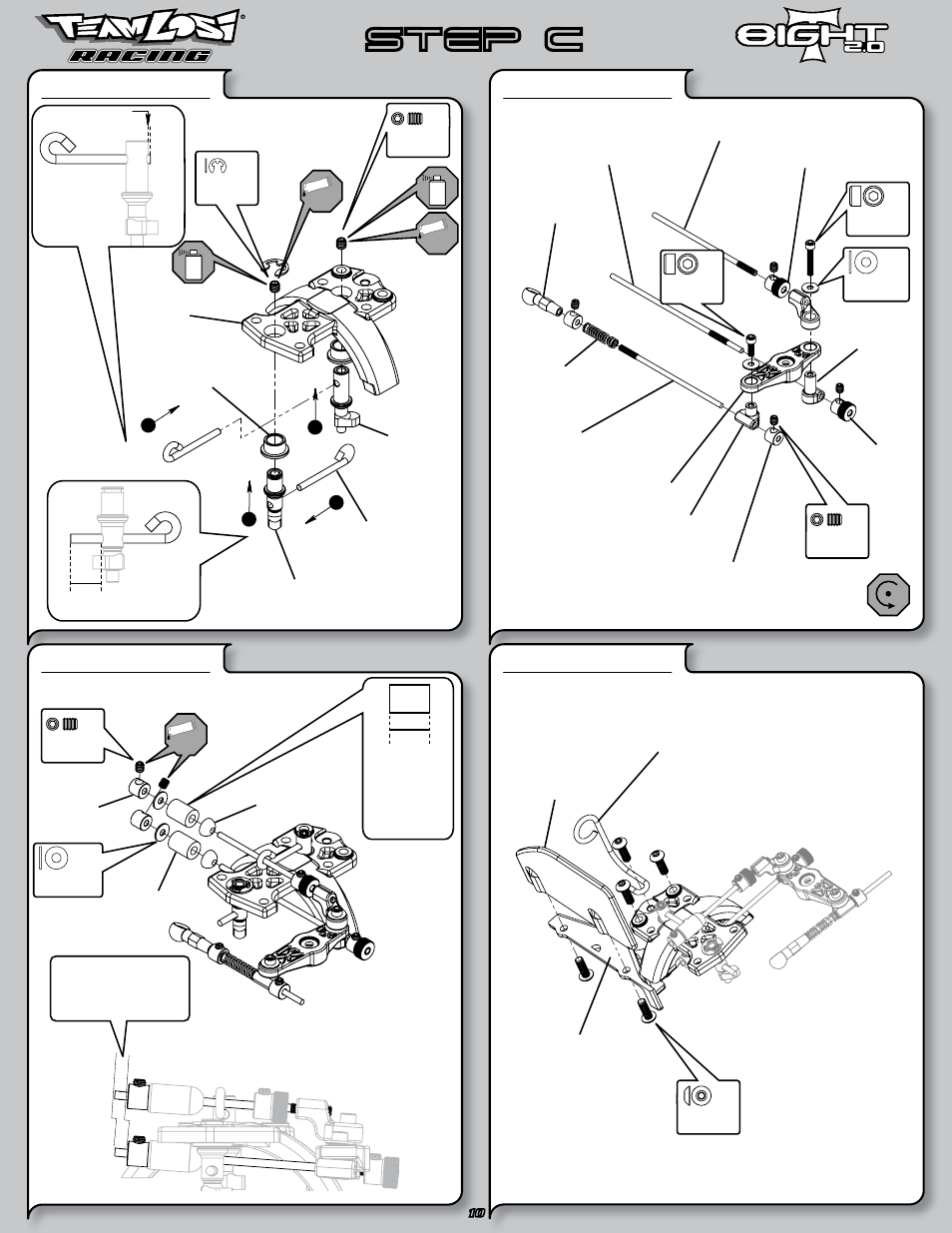

Center Top Brace Assembly STEP C-04 q Linkage Assembly STEP C-05 q
Linkage Assembly STEP C-06 q Air Filter Mount & Guard STEP C-07 q
STEP C
(7mm)
(.2760”)
(.5mm)(.020”)
Assemble both Front and
Rear Brake Lever Collars
2.80mm (.11") from the end
of the Brake Rod.
(9mm)
(.3545")
Cut two pieces
of fuel tubing
to pictured
size.
LOSI-LOK
LOSI-LOK
LOSI-LOK
F 5-40 x 1/8"
A6297
x 2
2-56 x 1/2"
A6254
x 1
5mm E-clip
A6109
x 1
.250x.094x020"
A9168
x 2
C 4-40 x 1/8"
A6227
x 3
2-56 x 1/4"
A6232
x 1
5-40 x 3/8"
A6277
x 5
C 4-40 x 1/8"
A6227
x 2
.250x.094x.020"
A9168
x 2
1
2
1
2
A3544
Rear Brake Cam
A9168
Brake Wire
A3544
Front Brake Cam
A4420
Top Center Brace
A3544
Brake
Cam Bushing
A9168
Front Brake Actuator
A9168
Adjuster Collar
A9168
Brake Lever Collar
A9150
Air Filter Mount
A4422
Splash Guard
A4422
Tank Guard
A9168
Rear Brake
Actuator
A9168
Throttle Actuator
A9168
Throttle Servo Arm
A9168
Threaded Servo Rod
A9168
Threaded Servo Rod
A9168
Rear Brake Rod
A9168
Throttle Rod End
A9168
Throttle Return Spring
A9168
Brake Bushing
A9135
Fuel Line
A9168
Brake Lever Collar
