Step d, Step d-08 q, Step d-09 q – Losi LOSA0805 User Manual

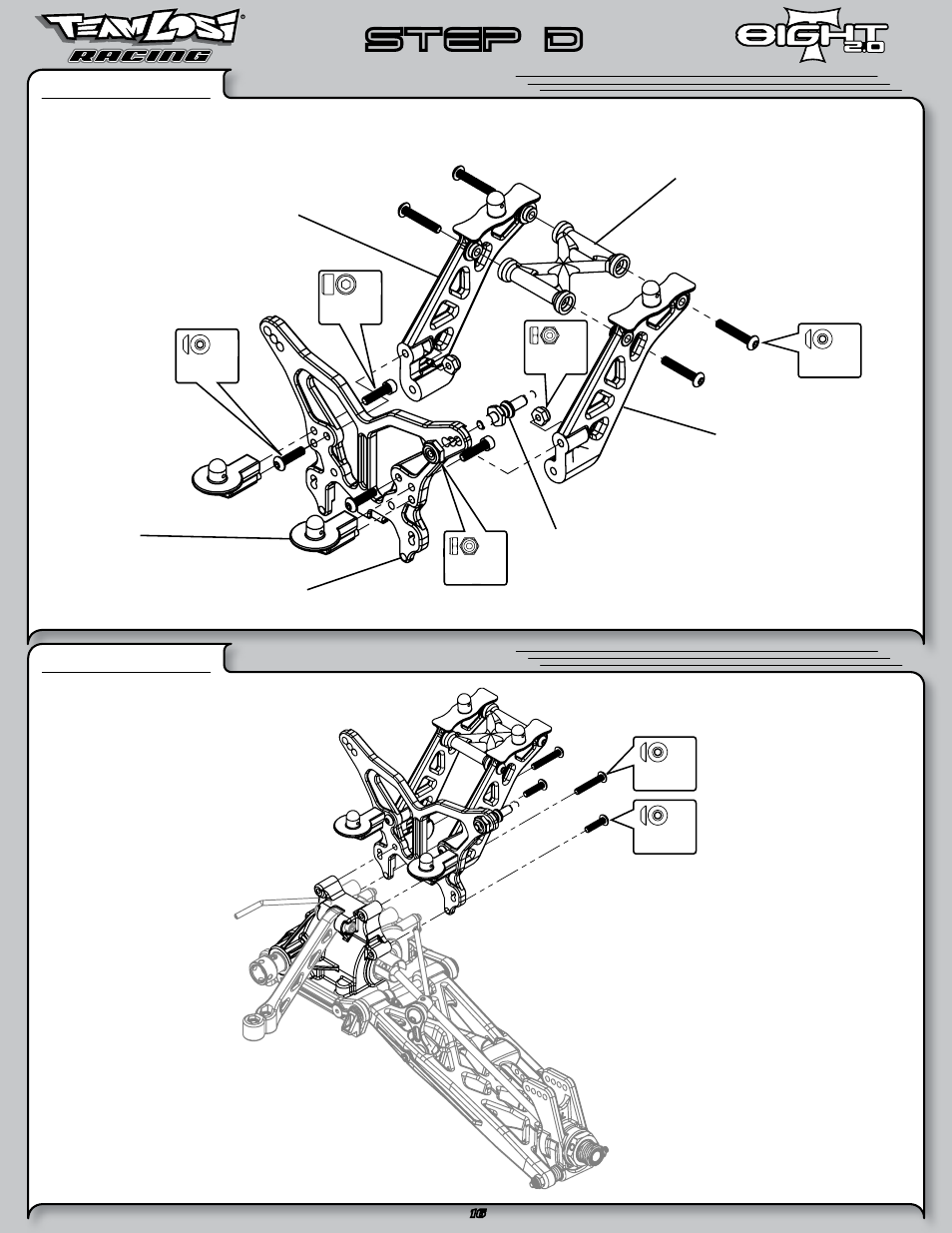

Page 21: Wing mount assembly, Rear shock tower installation
16
Wing Mount Assembly
STEP D-08
q
Rear Shock Tower Installation
STEP D-09
q
STEP D
5-40 x 3/4"
A6279
x 2
5-40 x 1/2"
A6278
x 2
5-40 x 3/4"
A6279
x 4
L 5-40 x 1/4"
A6302
x 2
5-40 x 1/2"
A6278
x 3
5-40 x 1/2"
A6240
x 2
L 8-32 x 11/32"
A6311
x 2
A4435
Right Wing Mount
A4435
Wing Mount Brace
A4435
Left Wing Mount
A5438
Shock Stand-Off
A1740
Rear Shock Tower
A4433
Rear Body Mount
