Step b, Step b-10 q, Step b-11 q – Losi LOSA0805 User Manual
Page 12: Center cv assembly, Steering rod assembly
7

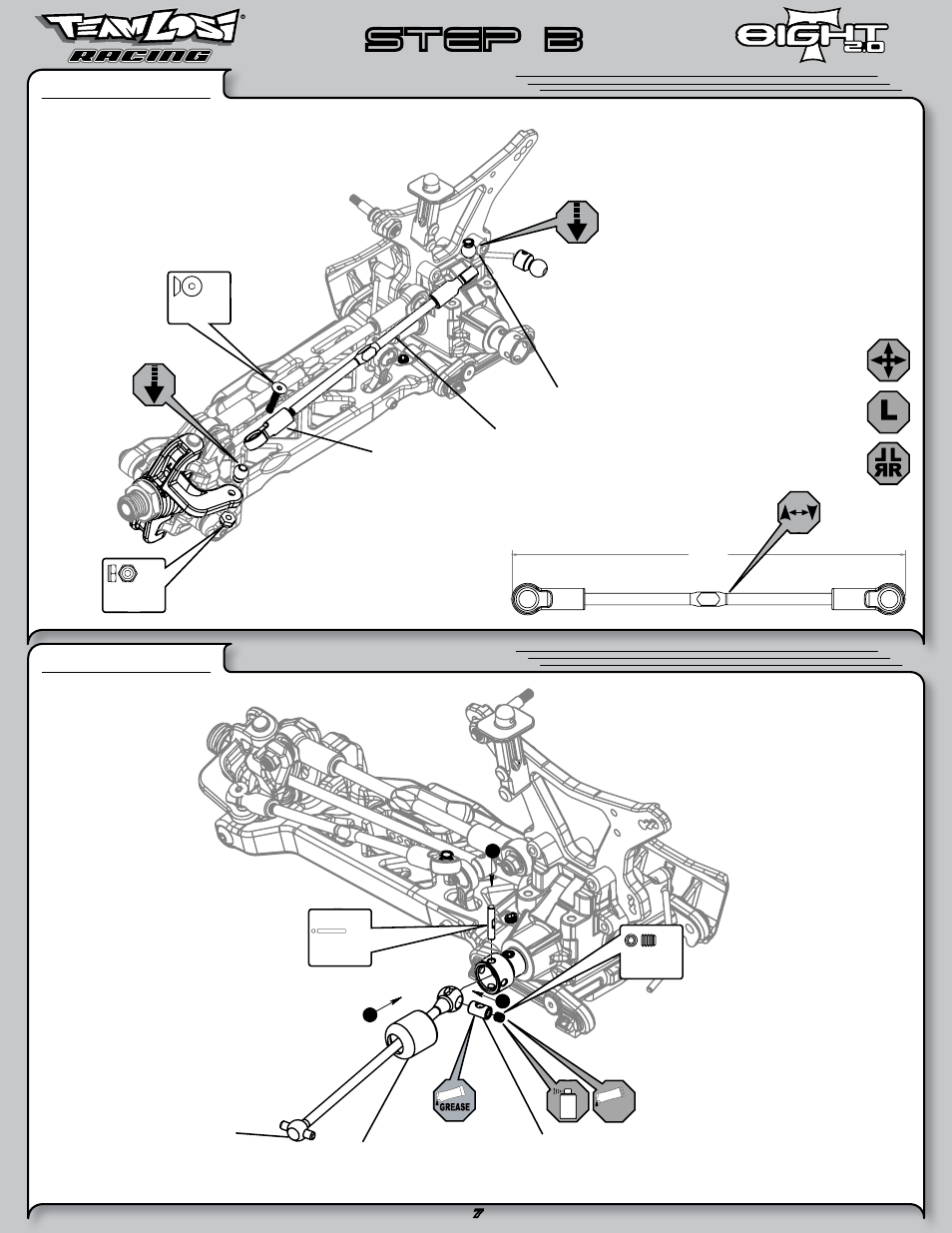

Center CV Assembly
STEP B-10
q
Steering Rod Assembly
STEP B-11
q
STEP B
137.20
Be sure to install the assembled Tie
Rod onto the car with the groove
(next to the center square section)
on the driver’s left side for easier
adjustment later.
LOSI-LOK
3
5-40 x 1/4"
A6302
x 2
5-40 x 5/8"
A6275
x 4
2.5 x 14mm
A3525
x 2
Solid
F 5-40 x 1/8"
A6228
x 2
1
2
A3528
Front Center
Driveshaft
A3537
Grease Boot
A3525
CV Coupling
Center
A6050
Steering Ball
A6046
Steering Rod End
A6547
4mm x 114mm
Turnbuckle
