Step g, Step g-01 q, Step g-02 q – Losi LOSA0805 User Manual
Page 32: Clutch assembly, Clutch bell assembly
27

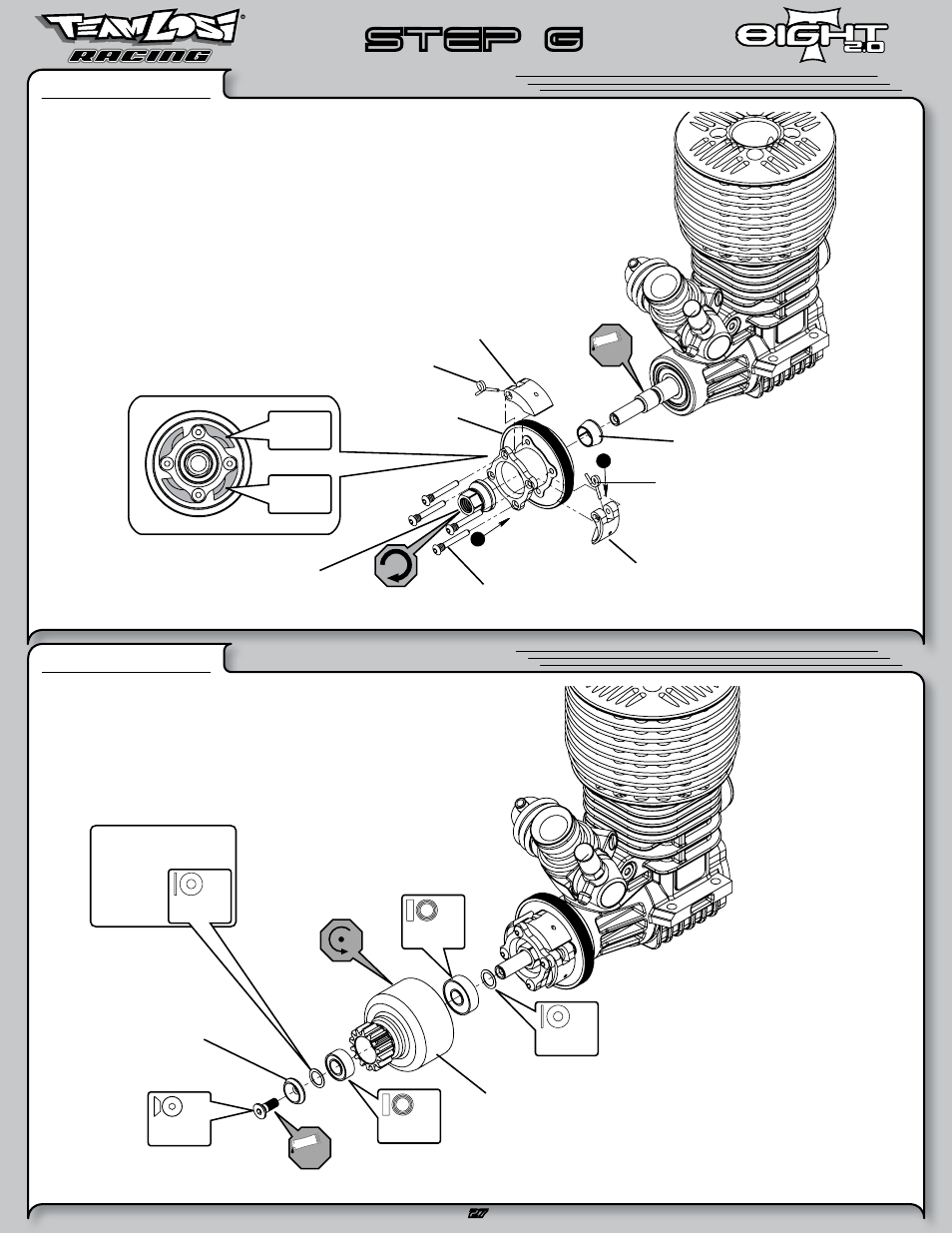

STEP G
Clutch Assembly
STEP G-01
q
Clutch Bell Assembly
STEP G-02
q
LOSI-LOK
LOSI-LOK
5x13x4mm
A6949
x 1
5x10x4mm
A6949
x 1
5x7x0.2mm
A6356
x 1
1
2
5x7x0.2mm
A6356
x 2
3 x 8mm
A9106
x 1
A9108
Aluminum Clutch Shoe
A9105
Flywheel Collet
A9113
Clutch Spring Green
A9108
Aluminum Clutch Shoe
A9105
Aluminum Flywheel
A9114
Clutch Spring Gold
A9103
Clutch Nut
A9106
Clutch Pins
A9126
Clutch Bell 13T
A9106
Clutch Spacer
Aluminum
Shoe
Aluminum
Shoe
Use the appropriate number
of shims to achieve proper
clutchbell end play. Generally
.25mm to
.50mm is
optimum.
