Losi LOSB9558 1/8 Xcelorin Brushless Motor Manual User Manual

Xcelorin 8, Sensorless brushless motor instructions

background image

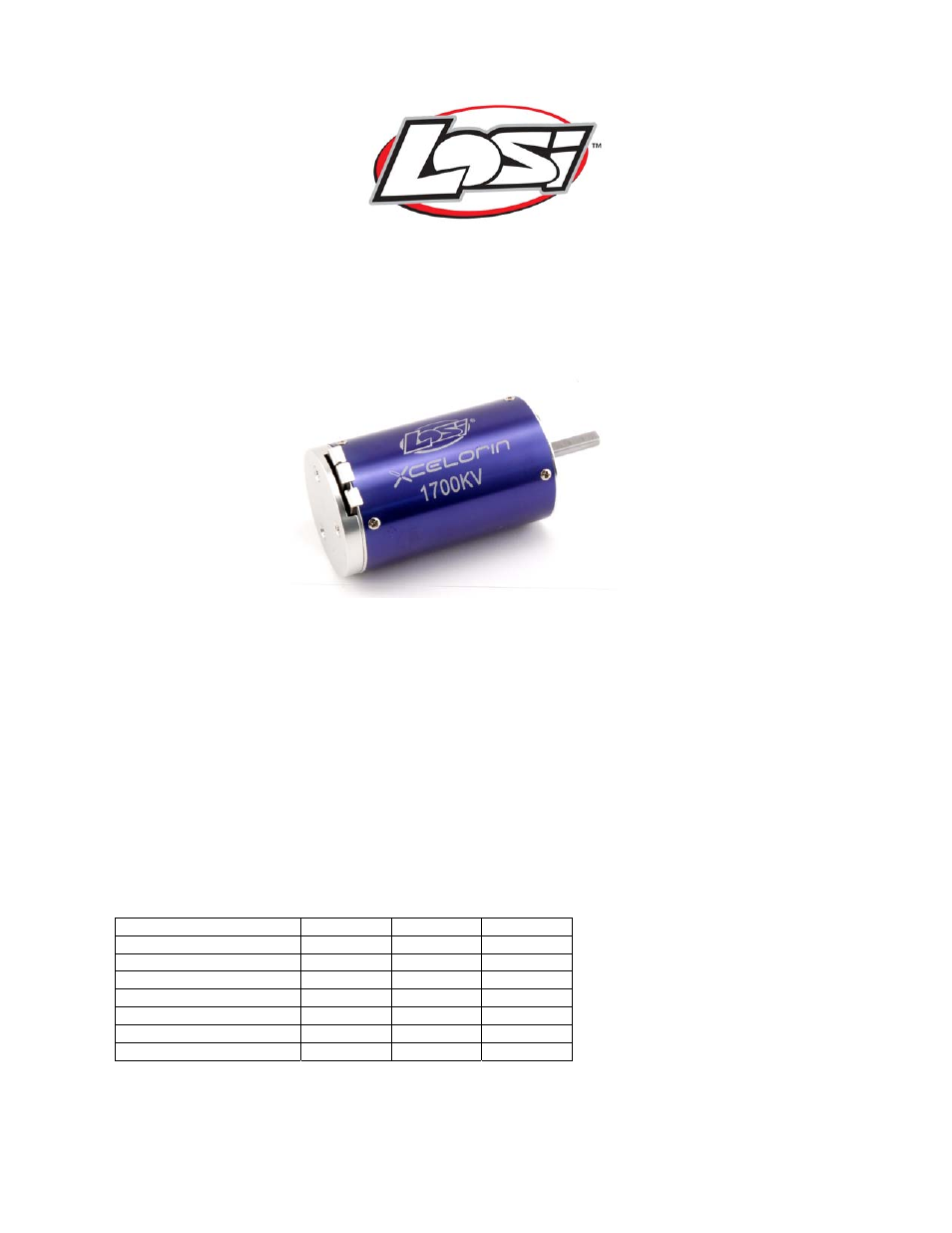

Xcelorin 8

th

Sensorless Brushless Motor Instructions

Xcelorin 8

th

Sensorless Motors v1.0

LOSB9420 1300Kv ◊ LOSB9421

1700Kv

◊ LOSB9422

2100Kv

Thank you for purchasing the Losi™ Xcelorin™ sensorless motor. This motor will provide you the
benefit of the latest in brushless technology.
We believe it will be to your benefit to take the time and effort to read these instructions.
We are confident you will be satisfied with the performance of the Xcelorin Sensorless Motor.

Losi/Horizon Support
If you have any questions concerning operation of your Xcelorin Motor, please call Horizon customer

support at 1 877 504 0233.
You are welcome to call us with any support issue or question you may have.

Safety Precautions and Warnings:

Please read instructions before operating.

DO NOT use a Schottky Diode with this motor.

Avoid over-gearing by monitoring temperature.

Operating temperature should not exceed 190F – 205F (87C – 96C) degrees.

DO NOT over-tighten the motor mounting screws. Damaged threads are not covered under
warranty.

Ensure the motor screws do not go into the motor

more than 0.180 in (4.5mm).

Specifications:


LOSB9420 LOSB9421 LOSB9422
Sensorless

Construction

Yes Yes Yes

Number of Poles

4

4

4

Rotor

Magnet

Sintered Sintered Sintered

RPM @ 11.1V

14,430

18,870

23,310

RPM per Volt

1300

1700

2100

Power (W)

1200

1500

1900

Efficiency

90%

90%

86%

Common Specifications:

Precision Ball Bearings

Compatible with 2S thru 5S LiPo batteries, and from 6 to 12 cells

Weight: 10.8 oz (306 g)
