3.2.5

Processor

All Intel Xeon Quad Core Processors 5500 Series up to 130W and all Intel Xeon Six Core Processors 5600
Series are supported.

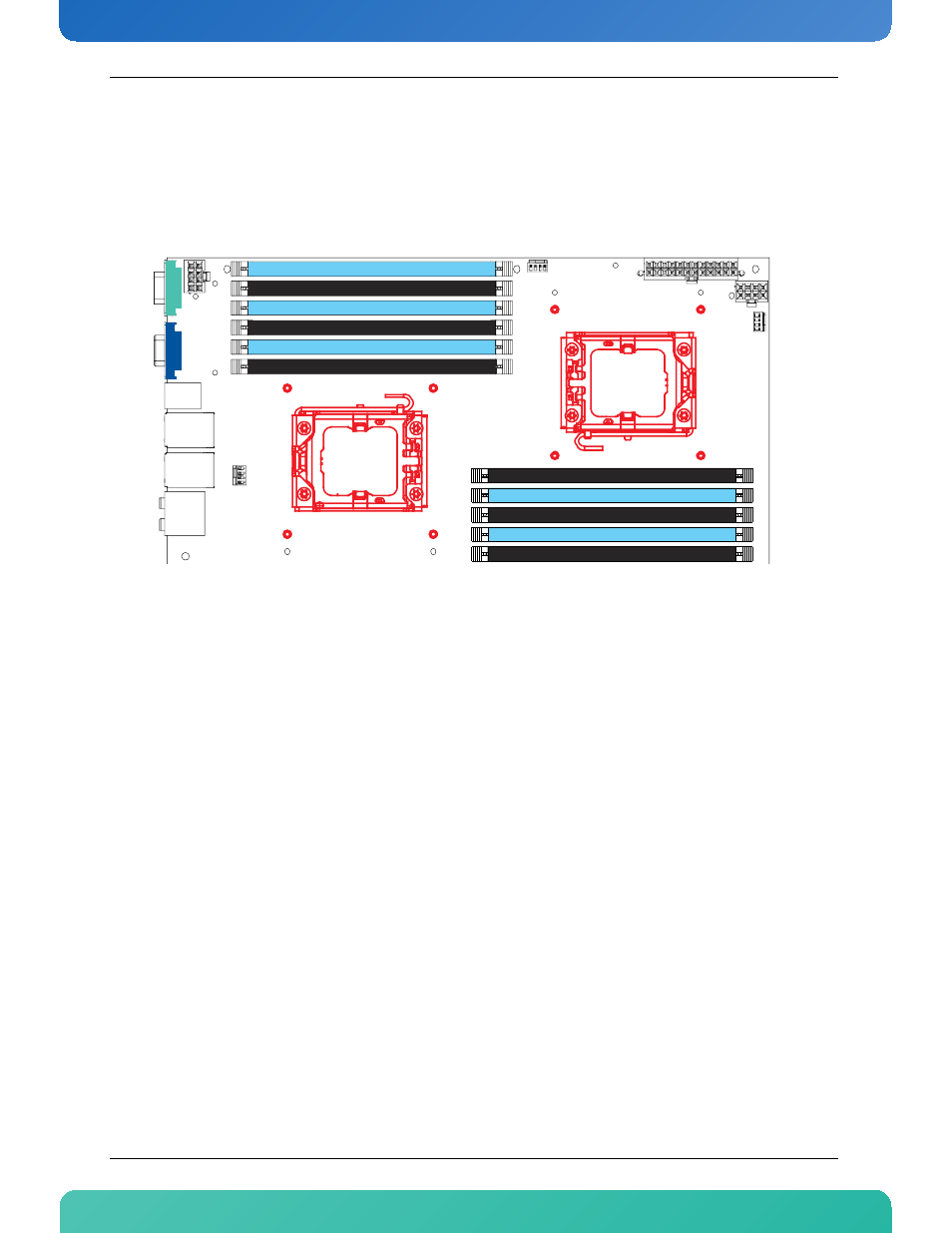

Figure 3-7: Processors Locations

3.2.5.1

Processor Installation

In the case only one processor is installed on the KTC5520/EATX, CPU1 shall be installed to keep the
temperature monitoring features of the CPU. Otherwise, if it is installed in the other CPU socket, the
processor temperature reading will not be possible and the fan management will raise CPU0 fan speed to
maximum. Sensors 08 and 09 values will display “No Reading” and sensors 44 and 45 status will indicate a
Configuration Error.

Make sure to follow the instructions provided with the processor and it’s thermal solution when installing it
and it’s thermal solution.

CPU 1

CPU 0

Audio

RJ45 LAN1

USB

RJ45 LAN2

USB

PS2 kbd

mouse

VGA

Serial

CPU1 Fan

CPU0 Fan

EATX POWER

EATX 12V

Mem1

Fan

DDR 3 ECC Registered Channel 2 Slot 0

DDR 3 ECC Registered Channel 1 Slot 0

DDR 3 ECC Registered Channel 0 Slot 0

Fill First

DDR 3 ECC Registered Channel 2 Slot 1

DDR 3 ECC Registered Channel 1 Slot 1

DDR 3 ECC Registered Channel 0 Slot 1

Fill Second
