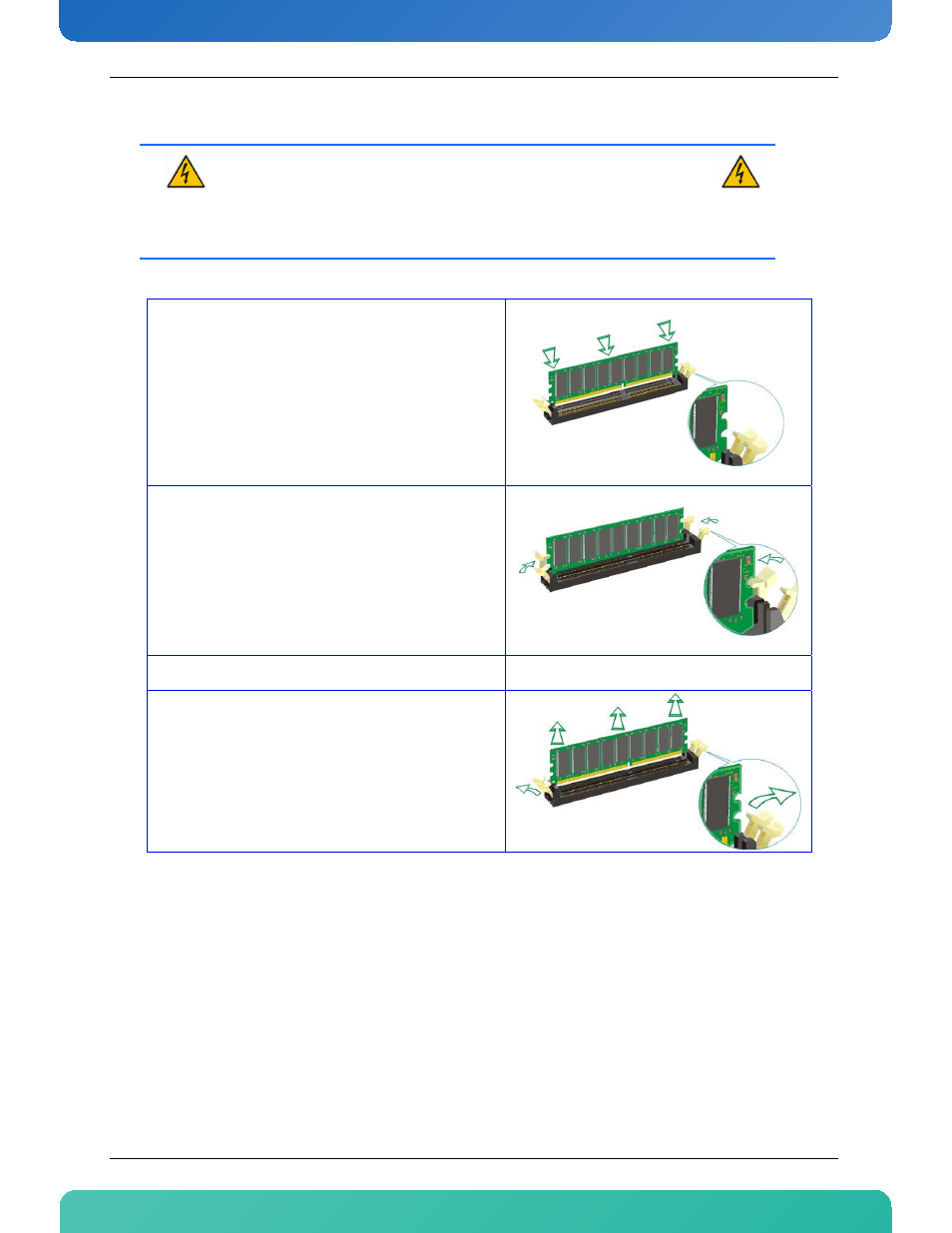

Figure 3-6: Memory Installation
WARNING
Because static electricity can cause damage to electronic devices, take the following
precautions:
Wear a grounding wrist strap before removing the board from its package; this will
discharge any static electricity that may have built up in your body.
Insert the memory module into a socket, aligning
the notches on the module with the socket’s key
inserts.
Push down the memory module until the retaining
clips lock on each side.
Repeat these steps to populate the other socket.
To remove a memory module from a socket, push
sideway the retaining clips on each side of the
socket, to release the module. Pull out the memory
from the socket.
