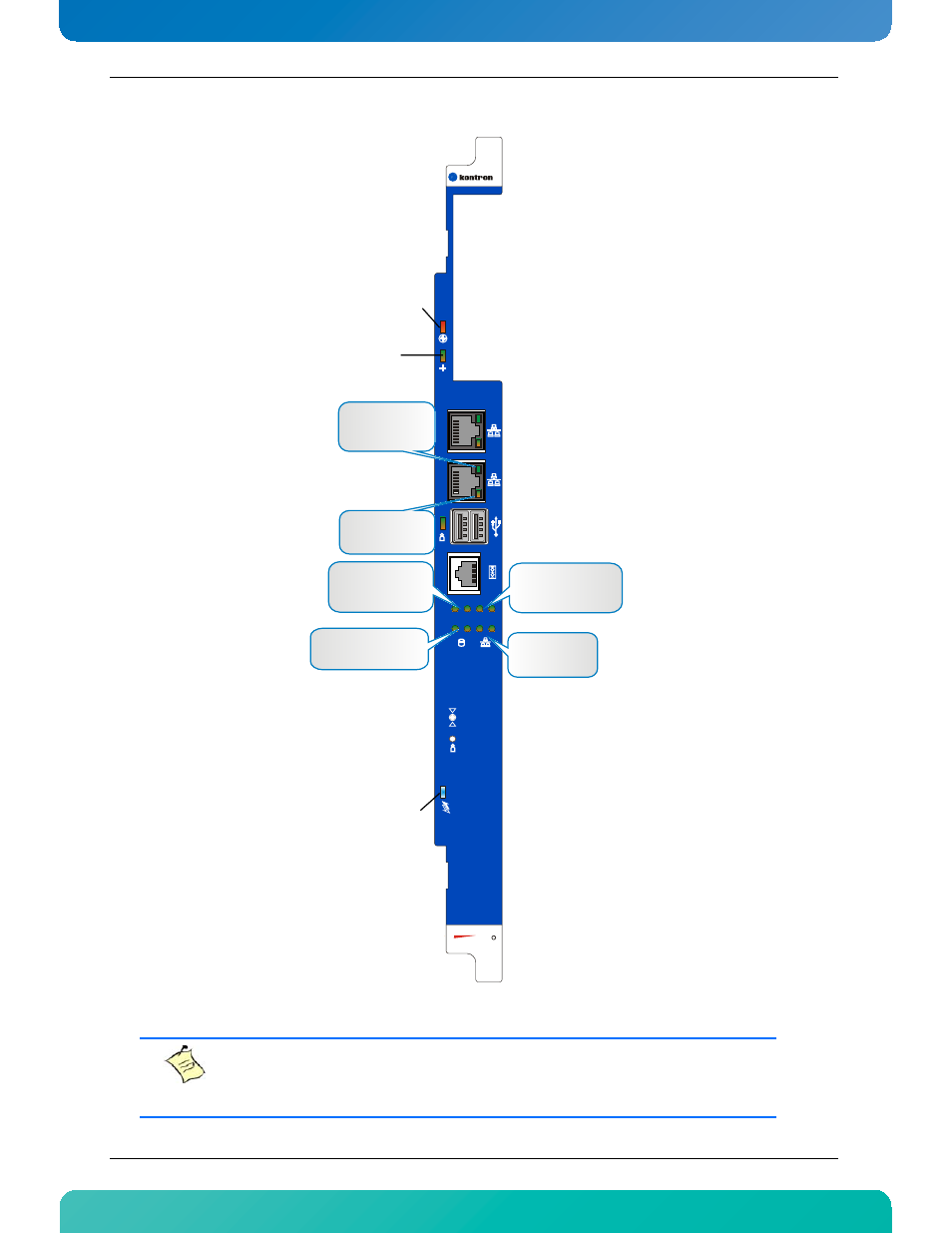

Figure 2-10: Faceplate LEDs
Note:
Disk activity is obtained directly from the ICH for SATA and from RTM-Link for SAS links of the SAS
controller located on the RTM.
If the SAS controller is accessed through the Update Channel it doesn't provide any activity status.
0 1 L R
B.I. F.I.
A dvanced TCA R
Link / Act
Off: No link
Green: Link
Blinking: Activity
Speed
Off: No link
Amber: 10/100Mb
Green: 1000 Mb
Hard Disk Act (Local / Remote)
Off: No activity
Blinking: Activity
Base Interface: Link / Act
Off: No link
Green: 1Gb Link
Amber: 10/100Mb Link
Blinking: Activity
1 1 2 2
Fabric Interface: Link / Act
Off: No link
Green: 10Gb Link
Amber: 1Gb Link
Blinking: Activity
Link / Act
Off: No link
Green: 1Gb Link
Blinking: Activity
Hot Swap LED
Out Of Service LED
Healthy LED
