Specifications
Absolute Level Accuracy:
± 3 dB plus display resolution with KX3 preamp on.
Relative Level Accuracy:
± 0.1 dB plus display resolution
Display Update Rate:
Selectable 1 Hz to 20 Hz (slower at narrowest spans)
Amplitude Scale:
10 dB minimum, 80 dB maximum
Span:
2 kHz minimum, 200 kHz maximum
Resolution Bandwidth:
Span / 450, 8 Hz minimum
Power Requirements:
9 to 16 VDC. Approximately 195 mA at 13.8 VDC (max. screen brightness)
Weight:
12.7 oz (360 grams)
Size:
See Figure 46 below.

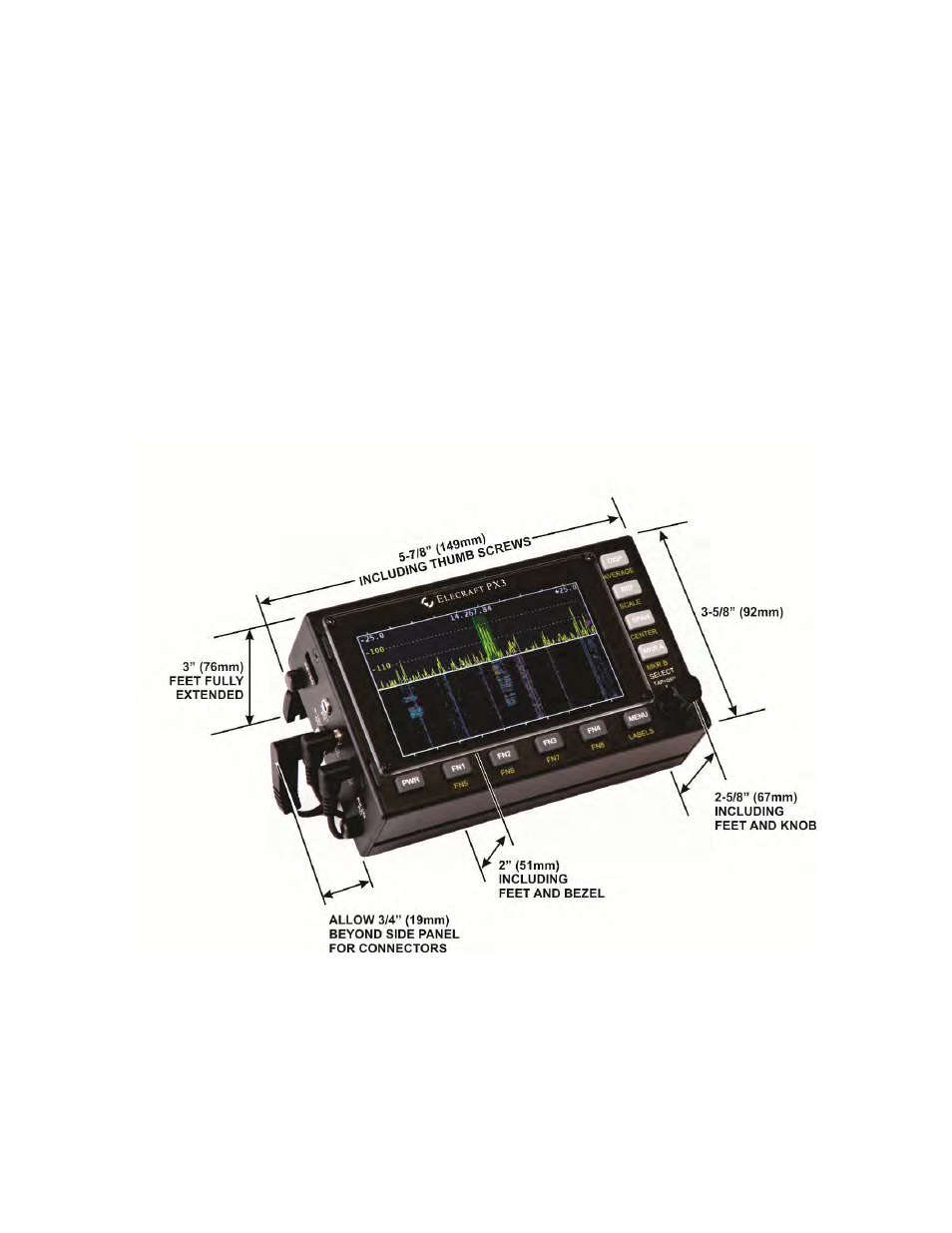

Figure 46. PX3 Dimensions.
