Elecraft PX3 Owner's Manual User Manual
Page 41
41

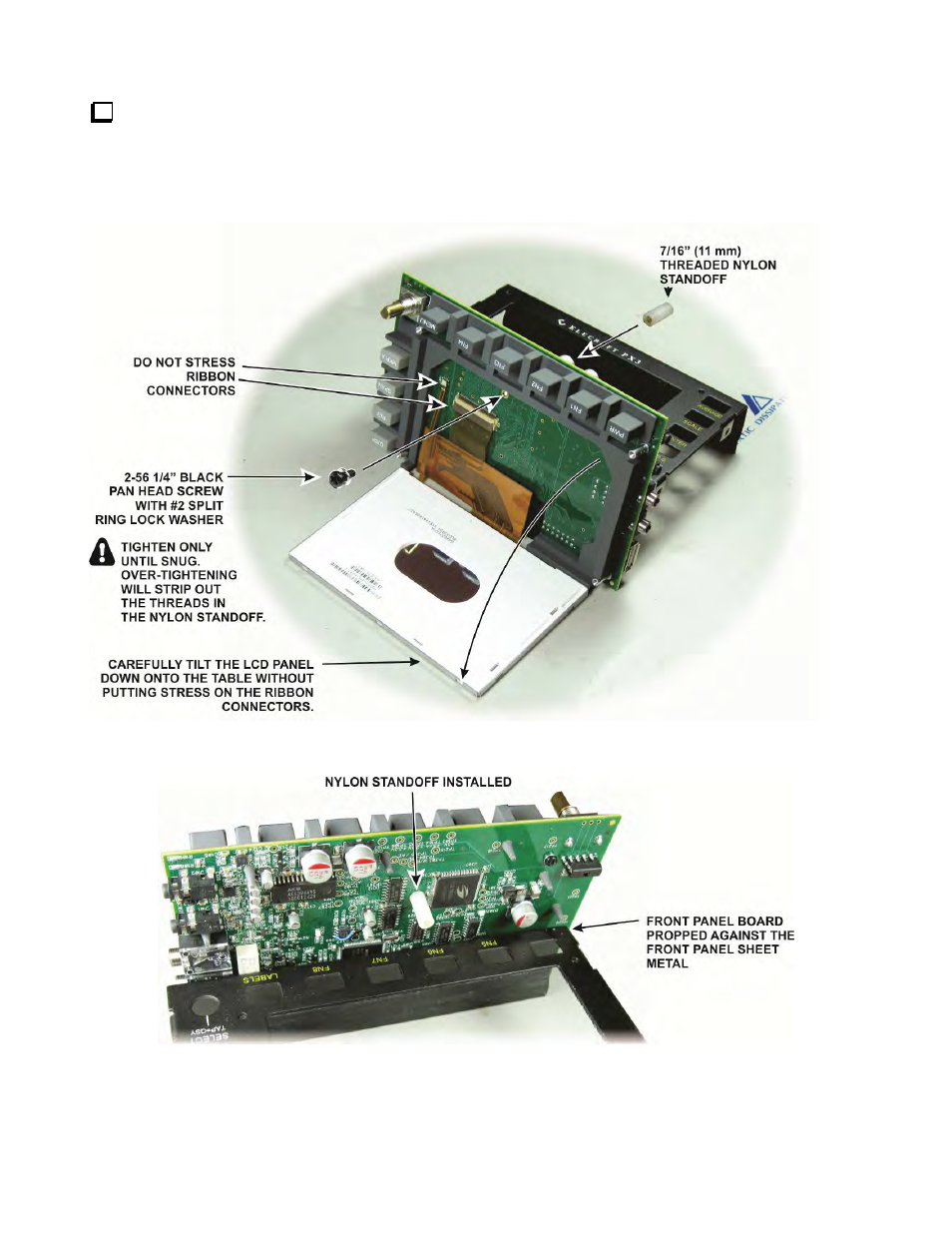

Place the front panel face up on you work table. Carefully remove the rubber band holding the LCD in
place and prop the front panel board up on its top edge against your work table. Install the threaded nylon
standoff on the board as shown in Figure 26. Tighten only until the standoff is snug. Do not over-tighten or you
will strip the threads in the standoff. The installed standoff is shown Figure 27, If one of the ribbon cables does
come loose, see Replacing the LCD on page 51.
Figure 26. Installing the Nylon Standoff on the Front Panel PC Board.
Figure 27. Nylon Standoff Installed.
