Basic Operation
This section covers the fundamentals of PX3
operation. Once you're familiar with the PX3,
please go on to Advanced Operating Features
(page 17).
Using Tap/Hold Switches
Most PX3 switches have two options. Tapping
(pressing for less than 1/2 second) activates the
function labeled in white on the switch. Holding
(pressing for more than 1/2 second) activates the
function labeled in yellow below the switch.
Initial Power-Up
 Connect your PX3 to the KX3 as shown in
Figure 2 on page 8 or Figure 3 on page 9.

Apply power to the KX3 and enable operation
with the PX3 in the KX3’s menu:
MENU: RX
I/Q On
 Press
P W R to turn the PX3 on, if it is not on
already. The screen should light and you should
see a spectrum or combined spectrum and
waterfall display. If a KX3 is connected via the
ACC1 cable you should see the correct
frequency at the top center of the display.
Configuring the Display
Tap D I S P to cycle between spectrum and combined
spectrum and waterfall displays.
Hold AV E R A G E to turn on averaging and to set the
averaging time constant with the SELECT knob.
You can hold AV E R AG E again to turn off
averaging or just tap the same switch to clear the
parameter-entry text from the display while leaving
averaging enabled.
Hold
L AB E L S to show or hide the function switch
labels.
There are also several MENU functions that
configure the display, such as LCD Brt (display
brightness), Peak hold, Freeze display, Font size
and Waterfall height.
Using the Menu
 Tap
M E N U to access the menu. The menu
will appear near the top of the display .

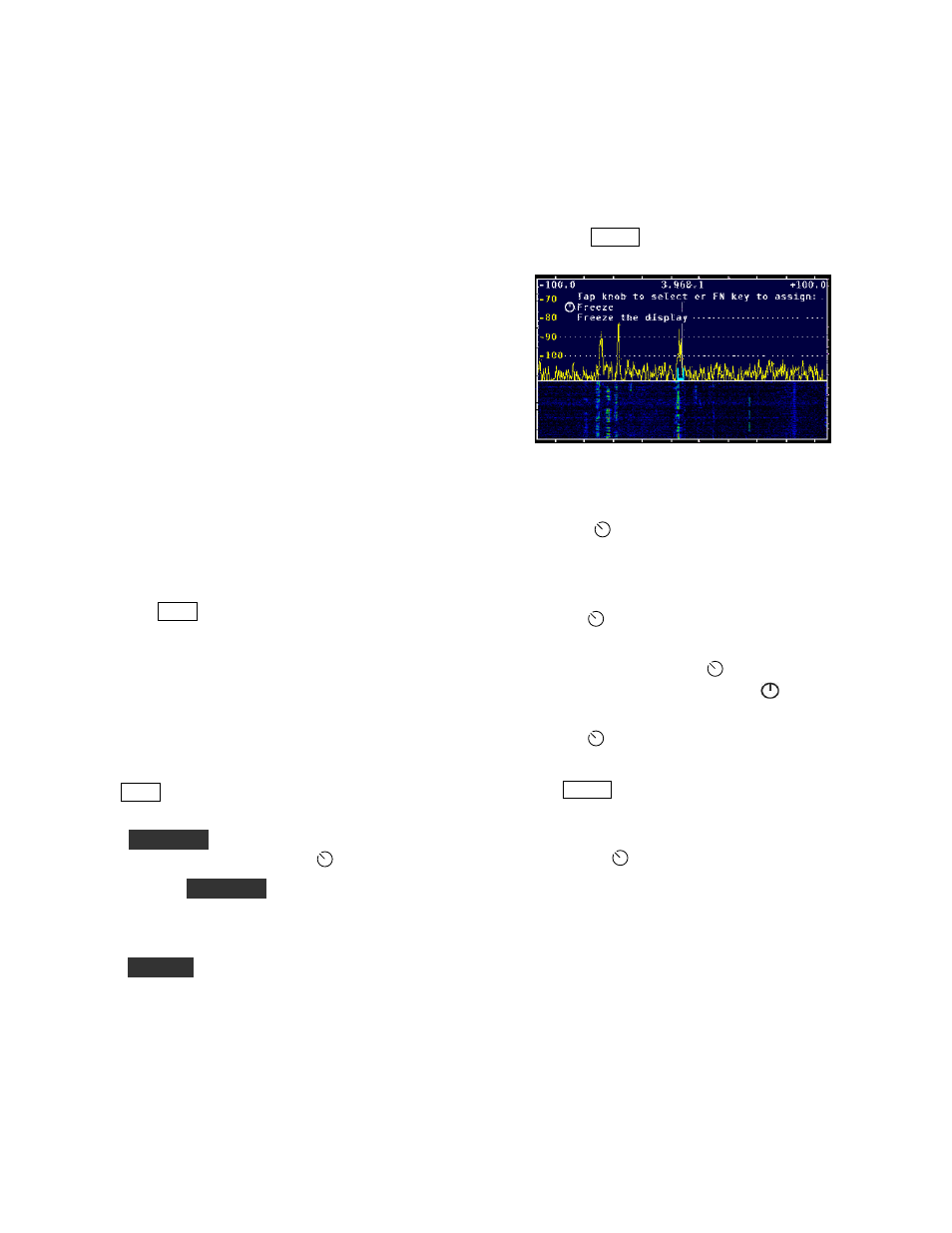

Figure 7. Typical Display Showing a Menu
Selection.
 Turn the
SELECT knob to scroll through an
alphabetical list of available menu functions, as
documented in the Menu Functions section
(page.28).
 Tap the
SELECT knob to select a function.
 Most functions have a parameter which can
then be changed with the SELECT knob.
Those functions all start with the symbol on
the display.
 Tap the
SELECT knob again to exit the
function.
 Tap
M E N U again to exit the menu.
 Some menu items are toggle functions. The
parameter changes automatically every time
you tap the
SELECT knob.
Programmable Functions
Most menu functions can be assigned to any
programmable function switch, FN1 to FN8 to
allow quick access without using the menu.
Common examples of such functions you may wish
to access quickly are
Peak hold and Freeze display.
