Ground Hooks
Version 5 Model 200i and 250i Motorcycle Dynamometer Installation Guide
2-43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GROUND HOOKS
You may wish to install additional ground hooks (included with your dyno) for
securing the motorcycle. Use the following instructions as a guide in placing your
ground hooks.
1
Locate each ground hook approximately 96.5 cm (38 inches) from the front of the
dyno and approximately 20 cm (8 inches) from the side of the dyno
(approximately 152.40 cm, 60 inches, apart).
2 Using the ground hooks as a pattern, install the Red Head anchors using the
hardware included with the ground hook kit. Install the Red Head anchors
according to the instructions in Appendix A.

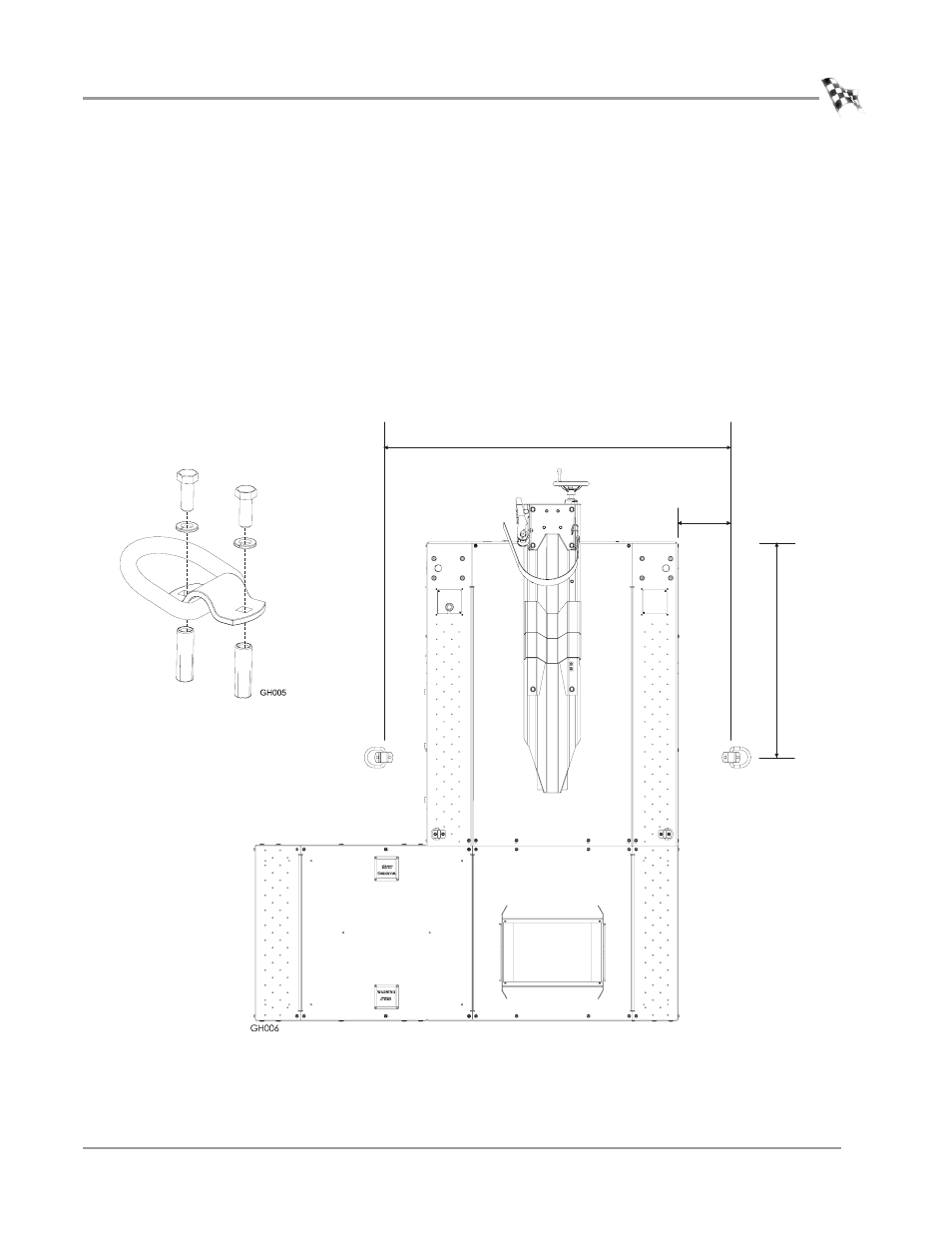

Figure 2-45: Ground Hooks
approx. 152.40 cm (60 in.)
approx.
20 cm
(8 in.)
ap
p
rox. 96
.5
cm
(3
8 in.)
