I N S T A L L A T I O N
Eddy Current Brake
Version 5
Model 200i and 250i Motorcycle Dynamometer Installation Guide
2-19
S
ECURING
THE
D
RUM
AND
B
RAKE
M
ODULE
TO
THE
F
LOOR
Dynojet recommends you anchor the eddy current brake, along with the dyno, to the
floor in your dyno room using concrete anchors. You will want to drill the holes and
secure the dyno before placing the covers on your dyno.
1
Mark and drill the holes for the Red Head anchors.
2
Install the Red Head anchors according to the instructions in Appendix A.
3
Secure the eddy current brake to the ground using the same holes used to secure
the brake to the crate. Secure the dyno to the ground using the holes you drilled
previously.

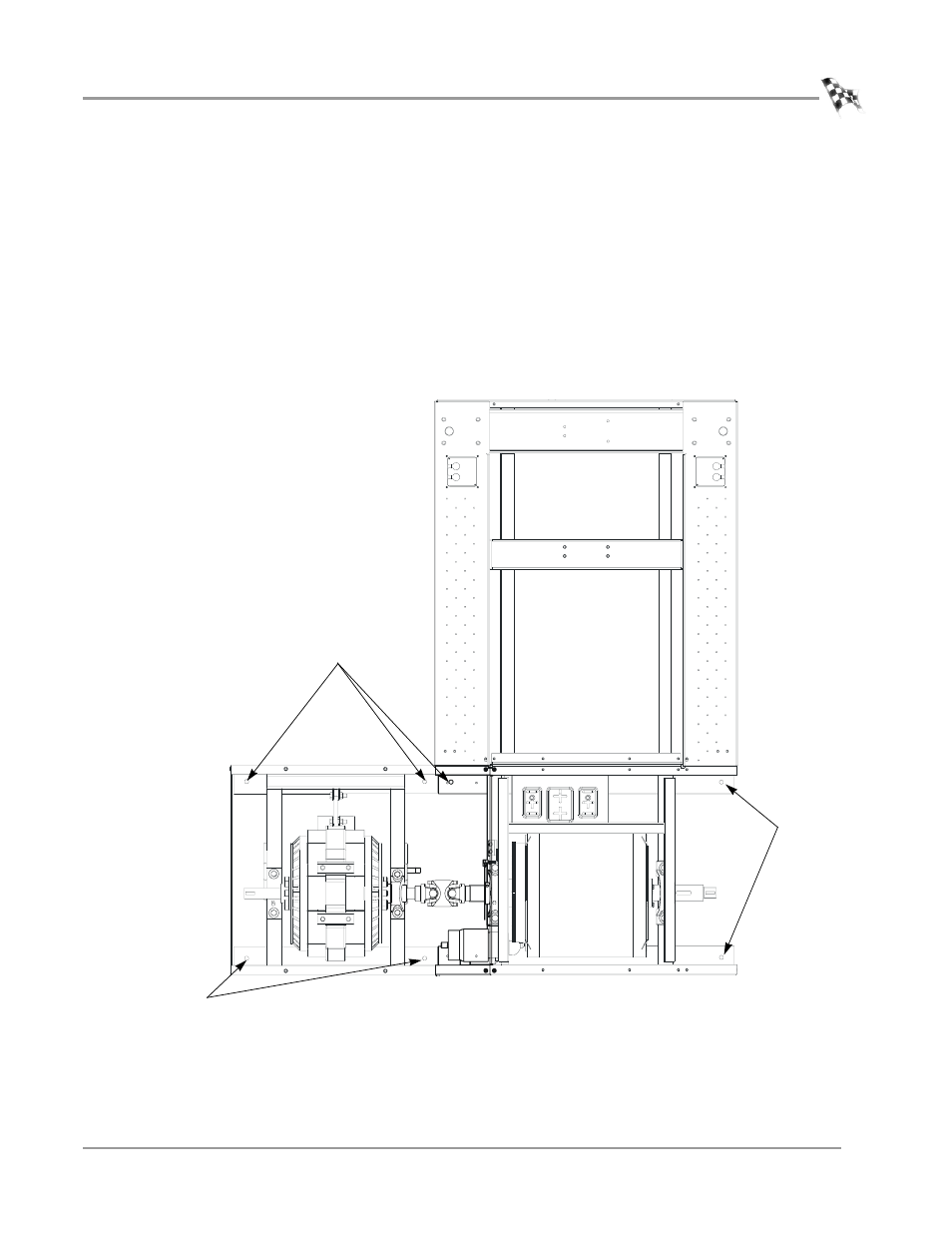

Figure 2-20: Secure the Dyno and Brake Module to Floor
MC122
mark and drill
holes for red
head anchors
mark and drill
holes for red head
anchors
mark and drill
holes for red
head anchors
