Operating the Autoloader: Dell™ PowerVault™ 124T LTO6 SAS Autoloader
User's Guide
Operator's Panel Functionality
Using Cartridges
Using Magazines and Magazine Blanks
Viewing Status Information
Running an Inventory
Data Compression
IPv6 Phase 1 Support
Operator's Panel Functionality
NOTE: If security is enabled and you try to execute a command without entering a password, the autoloader displays the Enter Password
screen until you enter a password. Once you enter a password, the autoloader takes you back to the command screen that you were at prior
to entering the password.

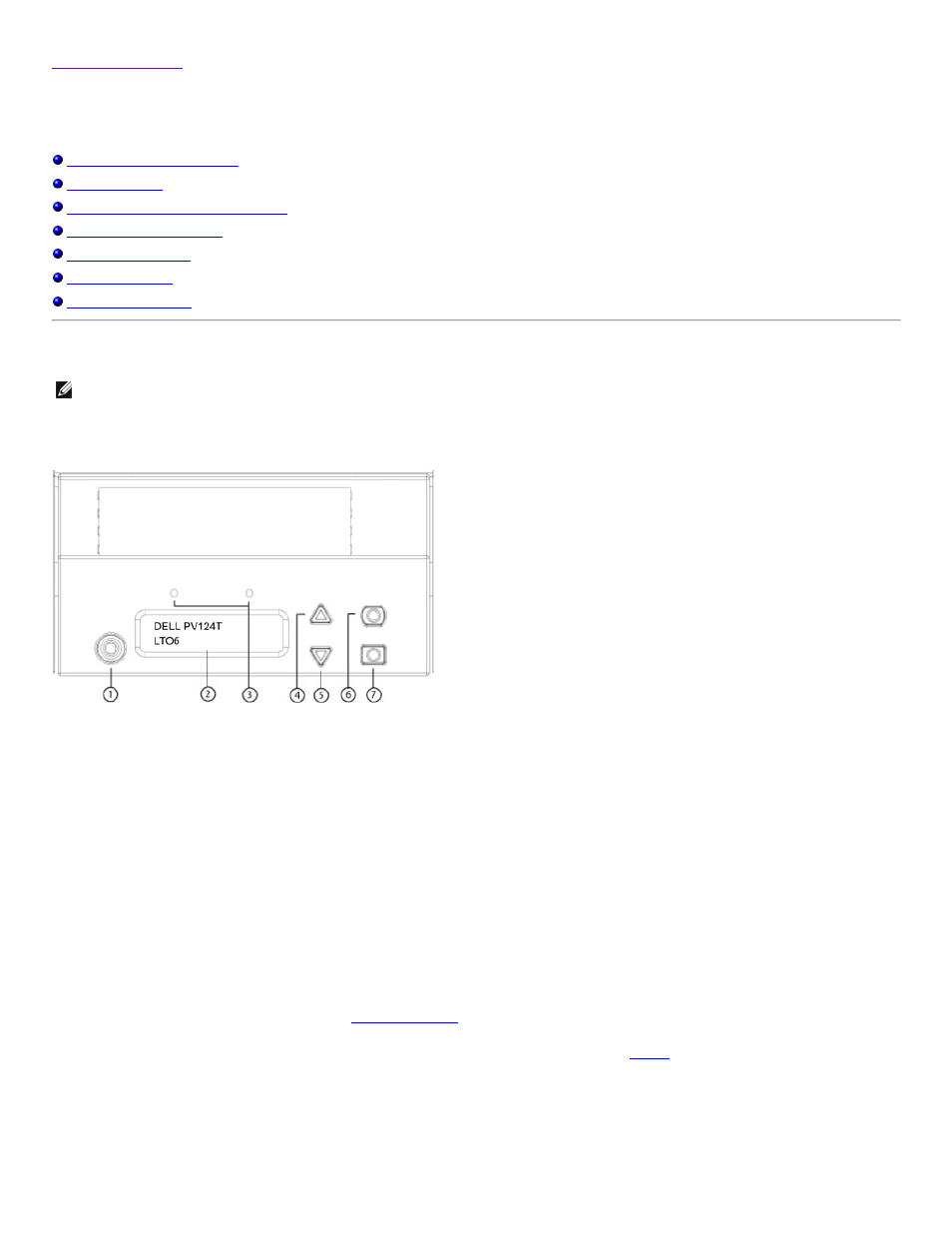

The Operator's Panel consists of two LEDs, five buttons, and a 2-line by 16-character LCD screen. The Operator's Panel provides everything needed
to monitor autoloader status and to control all of its functions.
1 Power switch
2 Front panel LCD screen
3 Front panel LEDs
4 Scroll up button
5 Scroll down button
6 Escape
7 Enter
All the functionality accessed from the scrolling menu can be password-protected. Two levels of security are built into the menu. The lower-level
security is the operator level and the higher-level security is the administrator level. There are separate passwords for each level.
The administrator password allows access to all the functionality available. The operator password allows access to all the functionality in the
Command and Status submenus.
Enter Passwords
Many functions on the autoloader may be password-protected to ensure data integrity. To access the menu items necessary to execute these
functions, you must first enter your password (see " Setting Passwords "). All passwords are six numeric digits long. These passwords are specific to
the front panel and are different from Remove Management Unit (RMU) passwords.
When you enter a password, all password-protected functionality is available until you log out (see " Logout "). If you do not use the front panel for
a period of time, the main screen reappears on the LCD. When the main screen reappears, the autoloader has automatically logged you out. You
will have to re-enter your password again to access the menu functionality.
Logout
To logout of the autoloader:
1. From the main menu, scroll to Commands, and then press Enter.
