so may cause damage to the magazine or the autoloader.
Manually Operating the Magazine

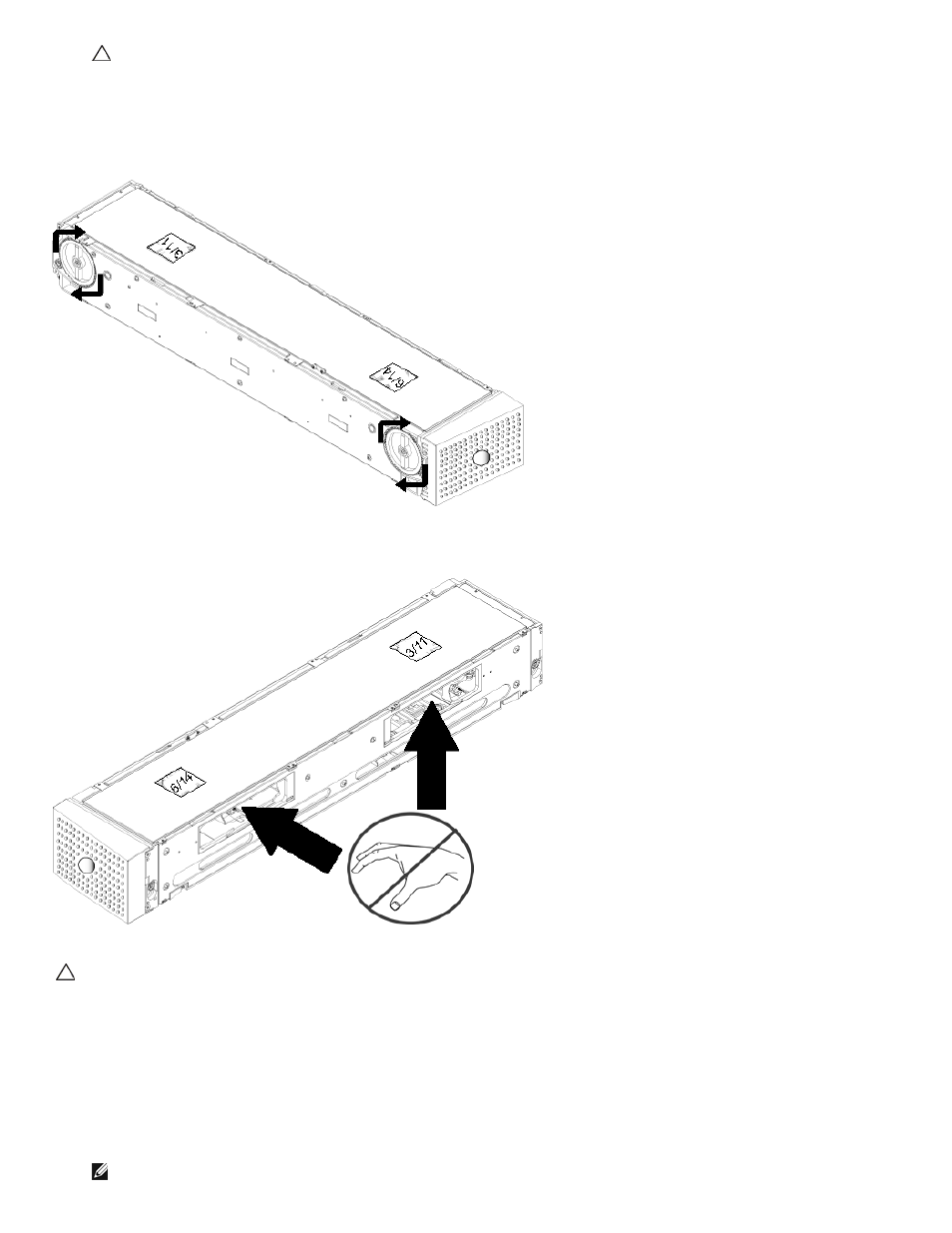

There are two white thumbwheels, located on each end of the magazine. You can move the slots within the magazine by turning these two white
thumbwheels in either direction and aligning a slot with one of the two openings.
Do not rotate the magazine by inserting your hand and pushing the cartridge carriers. You can use the openings in the magazine to load and
unload cartridges from the eight slots within each magazine.
Caution: It is recommended that you fully remove the magazine to load and unload cartridges. If the magazine is not fully removed, do not
rotate the magazine.
To identify a slot:
Each slot has an identification number that is exposed when the slots are in the upper section of the magazine. With the magazine removed from
the autoloader, you can see the identification mark on the top side of the magazine through one of two windows on the upper surface of the
magazine. Each magazine carrier is labeled 1/9, 2/10, 3/11, and so forth. Lower numbers 1 - 8 reference slots in the left magazine. Higher numbers
9 - 16 reference slots on the right magazine if the optional right magazine is installed.
To load cartridges into a fully ejected magazine:
1. To load cartridges into the magazine, center a slot within one of the openings located on the side of the magazine.
2. Properly orient the cartridge; tape upright and bar code label facing outward.
NOTE: There is a keying feature in each slot that only allows you to fully insert the cartridge one way. Make sure there are no labels
adhering to the cartridge at any point other than the designated label area.
