Optional Stand: Dell™ OptiPlex™ GX1 Small-Form-Factor System
User's Guide
To remove the optional stand, perform the following steps:
1. Turn the computer over so that the stand is at the top.
2. Loosen the captive screw and lift the stand away (see Figure 1).
3. Place the computer in a horizontal position.

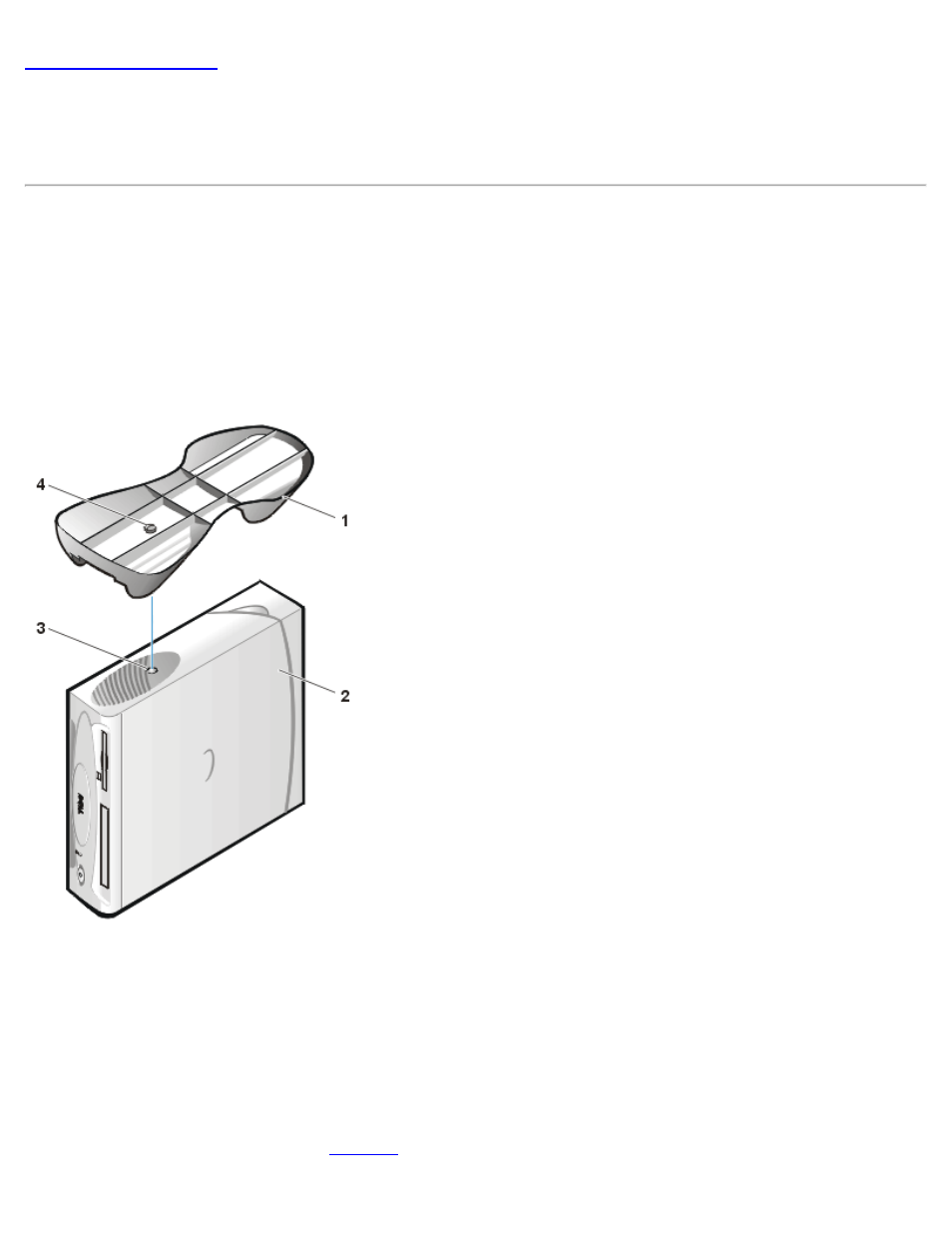

Figure 1. Optional Stand
1 Stand
2 Computer
3 Captive screw hole
4 Captive screw
To attach the optional stand, perform the following steps.
NOTICE: Attach the optional stand to the computer only as described in this procedure. Operating the
computer with the stand attached in any other position may damage the computer.
1. Turn the computer onto its right side.
2. Fit the stand onto what now is the top of the computer.
Position the stand as shown in Figure 1 . Align the captive thumbscrew in the stand with the screw
