Broadcom Gigabit Ethernet Teaming Services: Broadcom NetXtreme BCM57XX User Guide

file:///C|/Users/Nalina_N_S/Documents/NetXtreme/English/teamsvcs.htm[9/5/2014 3:32:13 PM]

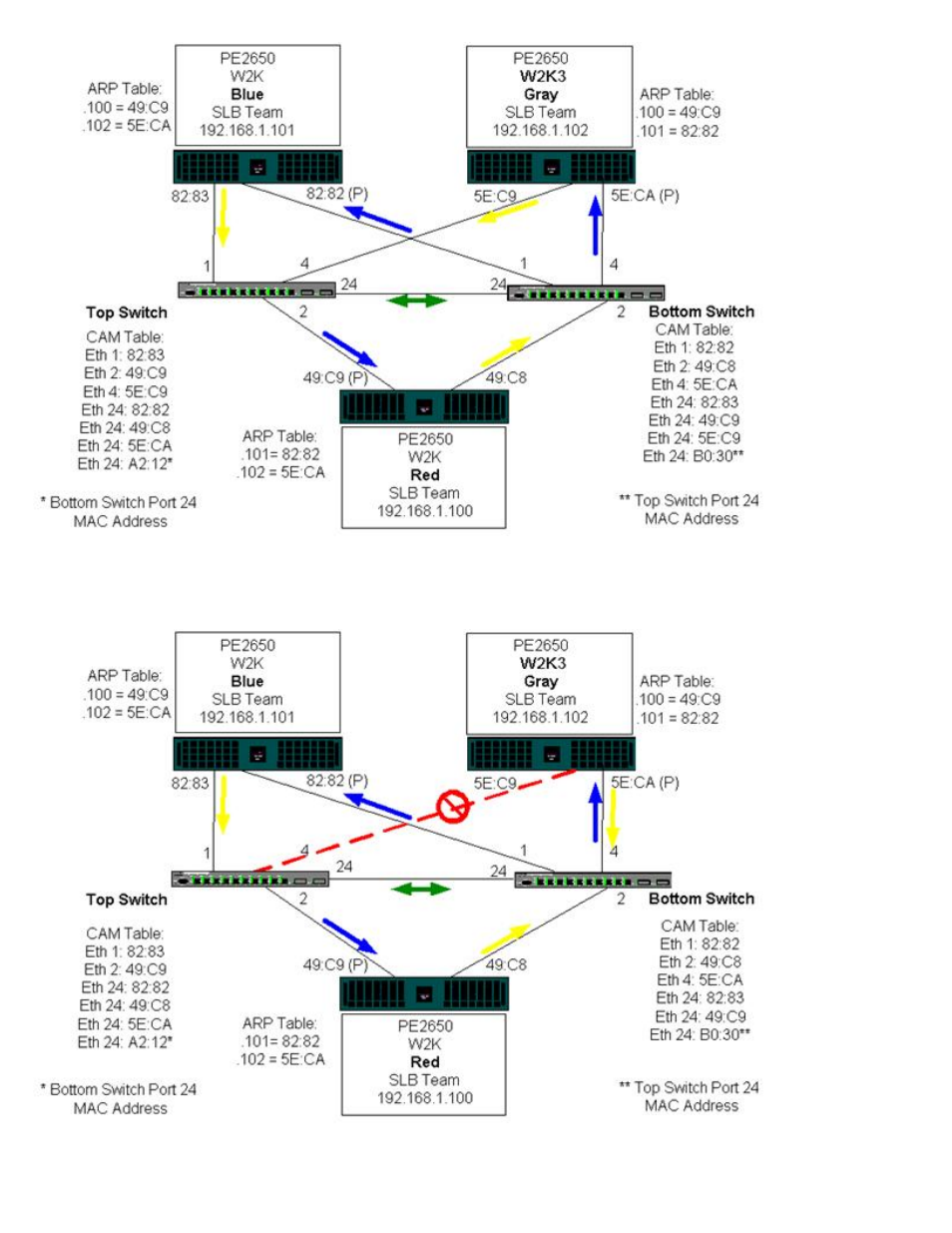

Figure 5

represents a failover event in which the cable is unplugged on the Top Switch port 4. This is a successful failover with

all stations pinging each other without loss of connectivity.

Figure 5. Failover Event

Spanning Tree Algorithm
