ADS Environmental Services RainAlert II QR 775008 A2 - Manual (Page 95)

5-28 ADS RainAlert II Manual

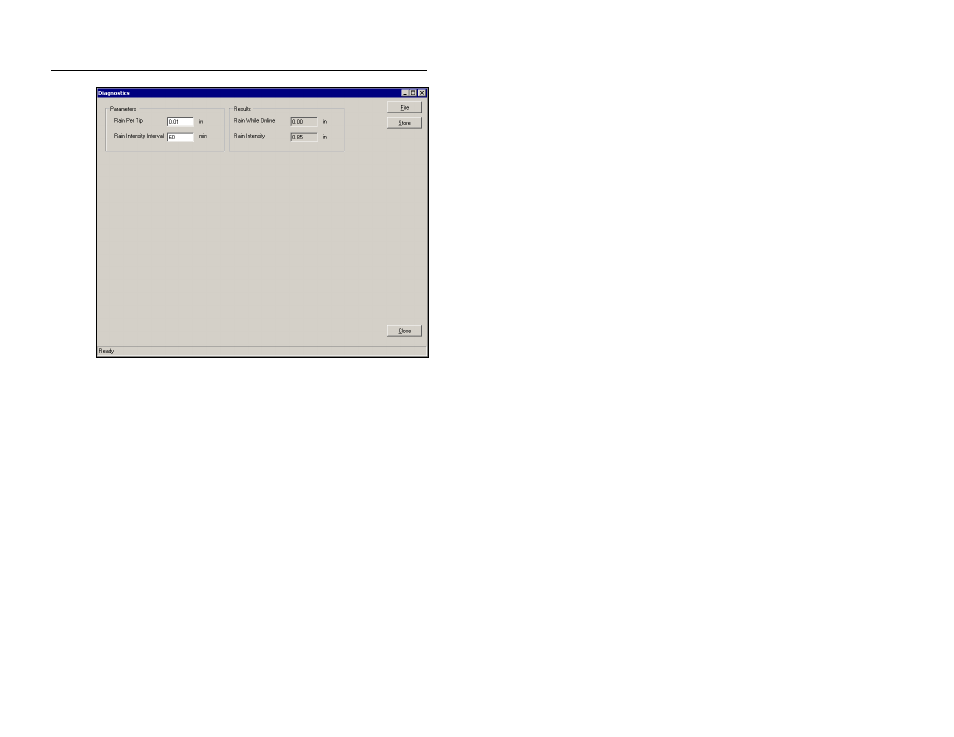

Diagnostics dialog for the Rain device following readings
5. View the results, and edit the configuration settings in the
Parameters section as necessary. Refer to Editing the Rain
Device on page 5-8 for descriptions of the individual
configuration parameters. Save any modifications to the LIF in
the monitor as follows:
 Select the Store button to save any changes made in the
device parameters to the LIF in the database.
 Select the Close button to exit the Diagnostics dialog for
the rain device and return to the Monitor Diagnostics
dialog.
 Select Activate from the Functions drop-down list, and
then select the Perform button. For more information on
activating a monitor, refer to Activating the Monitor on
page 5-16.
