4-6 ADS RainAlert II Manual
4. Use a 5/16-inch open end wrench to remove the top nut and
washer securing the board’s antenna connector to the metal tab.

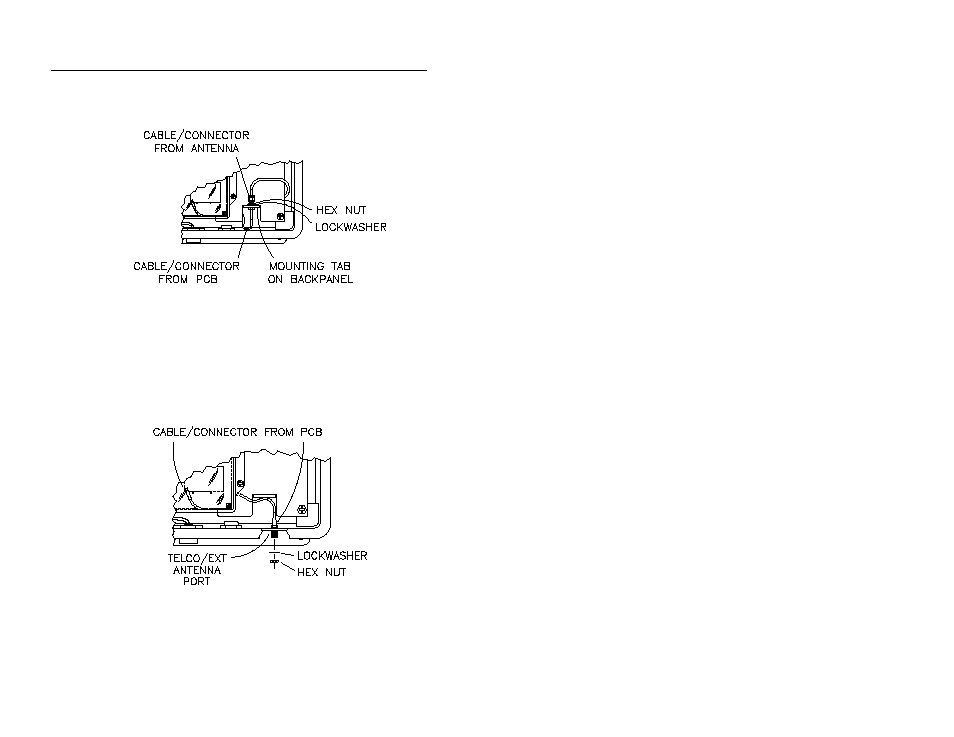

Removing connector from tab
5. Remove the connector from the tab and the sealing plug from
the TELCO/EXT ANTENNA port on the outside of the
enclosure.
6. Insert the connector through the hole in the TELCO/EXT
ANTENNA port from the inside out.
Inserting the connector from the cable through the port from the inside out
7. Replace the nut and washer onto the connector from the outside
and secure.
