Communication

4-17

Preparing the Telephone Cable

The next step in establishing telephone service is preparing the
telephone cable for connection to the lightning protection module.
Prepare the cable in the following way:

1. Carefully strip about 3 inches of the external insulation from

each end of the telephone cable.

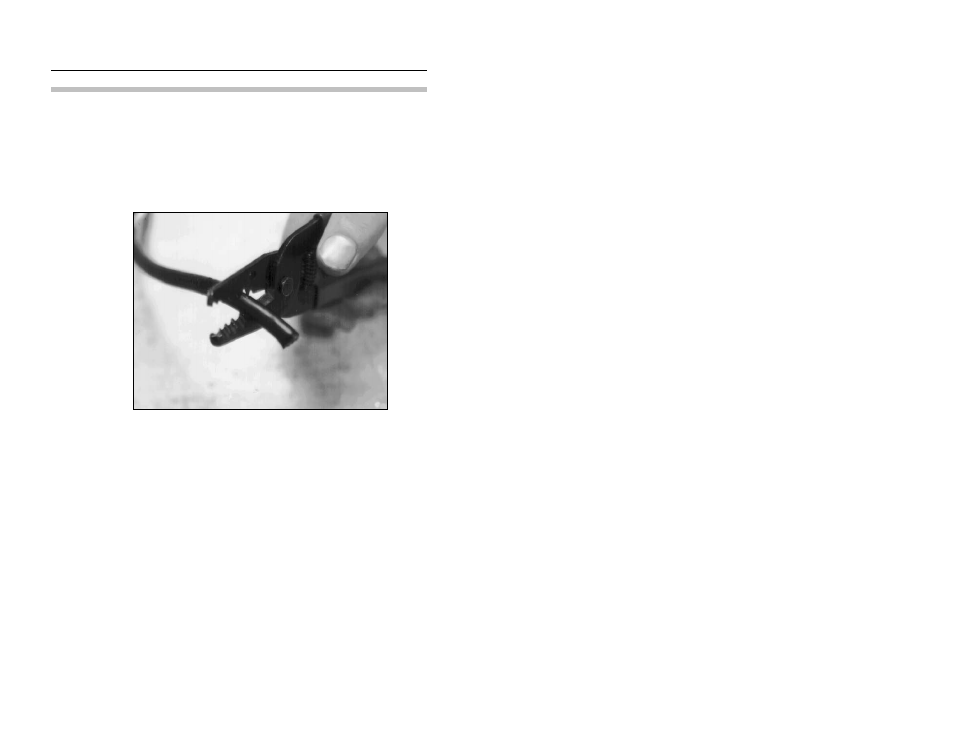

Stripping the external insulation from the telephone cable

2. Remove the internal braiding, and separate the four insulated

wires.
