ADS RainAlert II Manual

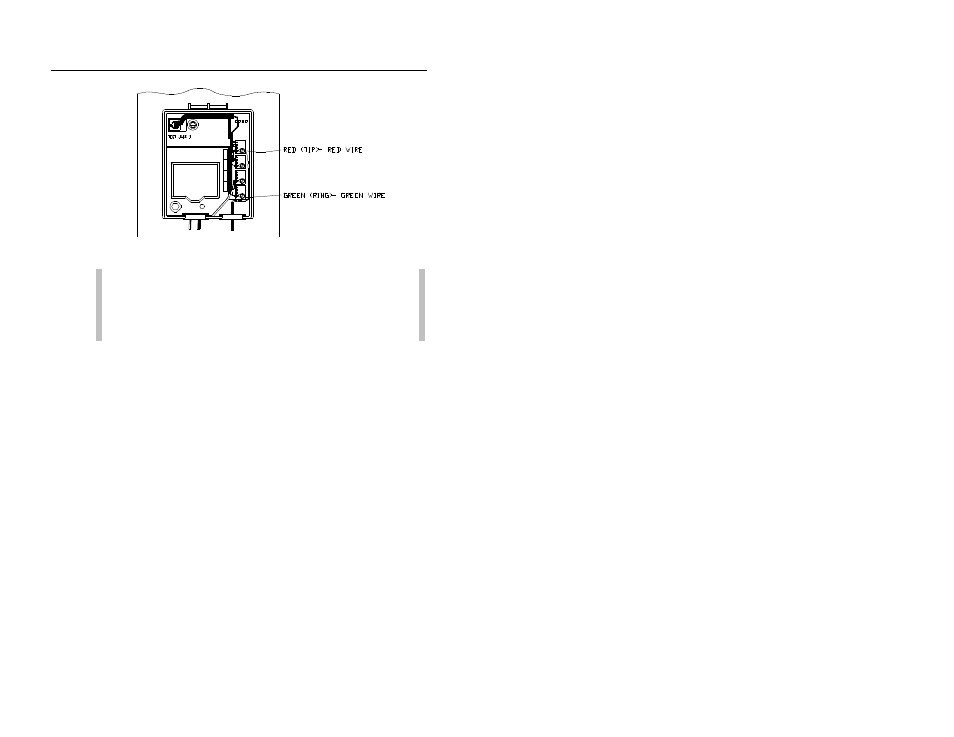

Wiring diagram of a typical telephone company network interface box

Note: Since the colors inside some boxes vary, this
manual does not reference colored posts for connection.
The installer should connect the wires to the posts in
reference to ring and tip.

7. Re-connect the test plug.

8. Close and secure the cover of the network interface box.
