Hardware Installation 3-19
Connecting the Tipping Bucket to the
Monitor
Connecting the tipping bucket to the monitor primarily involves
running the cable from the tipping bucket to the monitor and
connecting the cable to the tipping bucket port on the monitor.
Applications involving a customer-supplied tipping bucket also
require an intermediate pigtail cable (ADS p/n 5000-0721) that runs
between the tipping bucket cable and the monitor.
Connect the tipping bucket to the monitor in the following way:
1. Run the cable from the tipping bucket to the monitor location.
When the tipping bucket and monitor are in different locations,
consider the following when running the cable:
 Always obtain permission for the cable route from the
property owner, when applicable.
 Prepare the route and run the cable according to the
property owner’s specifications.
2. Locate the TIPPING BUCKET port on the bottom of the
monitor.
Product Complies With: FCC Part 15, Part 68
US: 6KDMD06AHS1
Contains GSM/GPRS Transceiver
FCC ID: MIVGSM0108
TIPPING
BUCKET SERIAL
COMM.
EXTERNAL
AC/DC PWR.
TELCO/EXT
ANTENNA

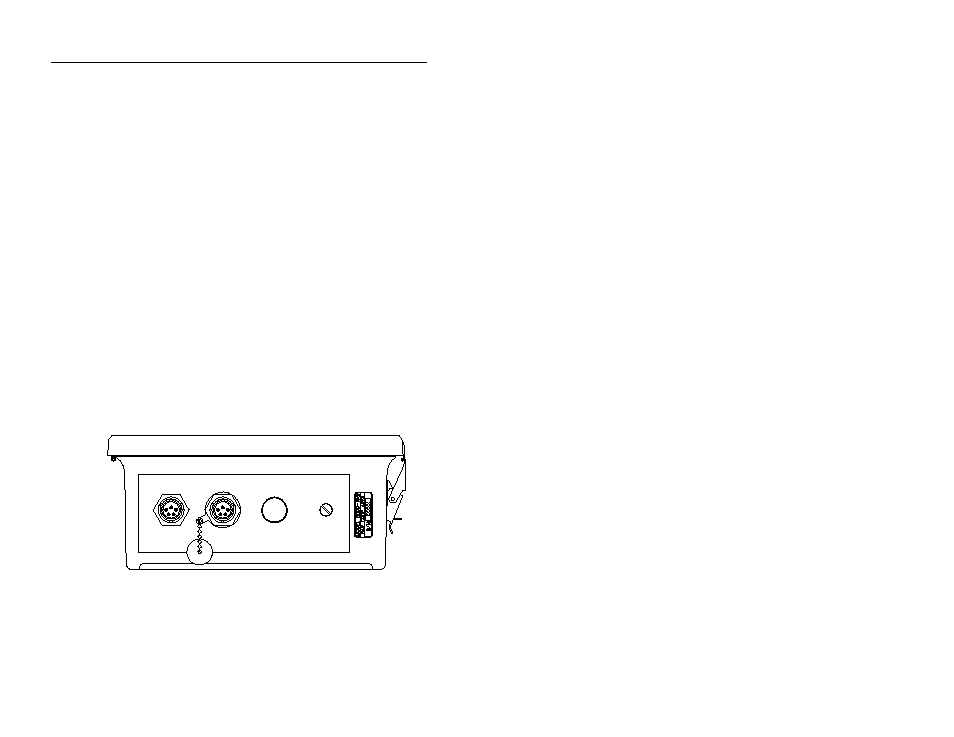

Cable connector ports
3. Visually inspect the connector on the cable (and adapter, when
applicable) and the TIPPING BUCKET connector port on the
monitor for debris or moisture. Clean off any debris, and dry
