5-38 ADS RainAlert II Manual
Viewing Diagnostic and Data Logs
Profile generates detailed logs for many activities performed
through Diagnostics, such as monitor activation, data collection,
and firmware downloading. These logs are available immediately
following the activity and for future access to historical information.
1. Select the monitor location for which you want to run
diagnostics on a device from the Profile main screen, and then
click on the Diagnostics toolbar button.
Diagnostics toolbar button
The Monitor Diagnostics dialog displays.

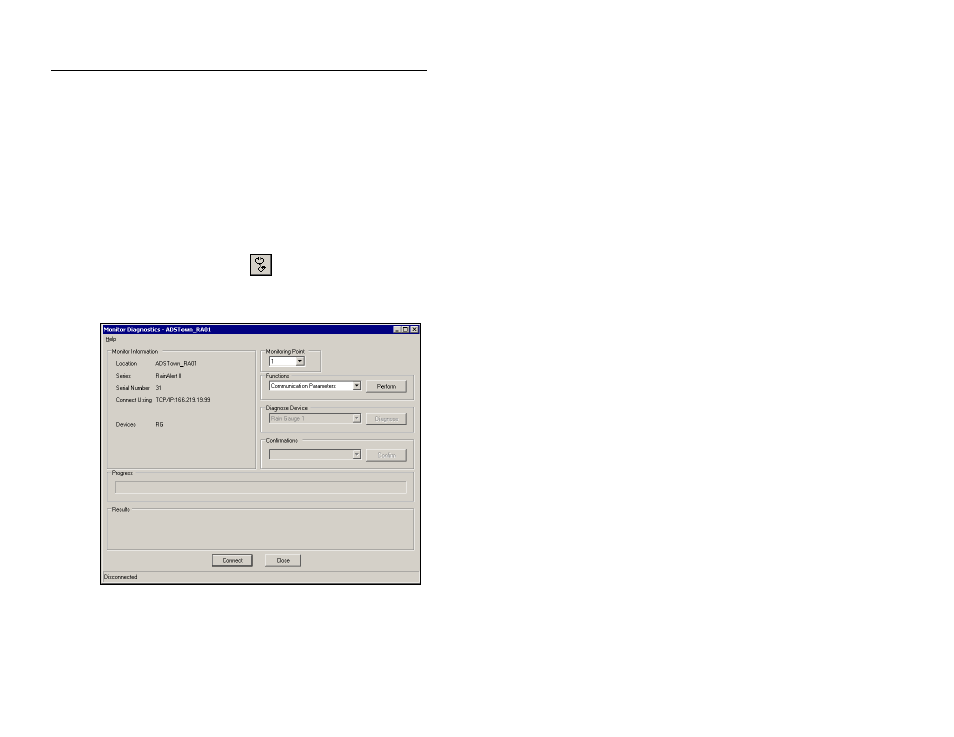

Monitor Diagnostics dialog
2. Select Logs from the Functions drop-down list.
3. Click on the Perform button.
