7/12/2005 401-182M
81 Veris Drive Operating Instructions

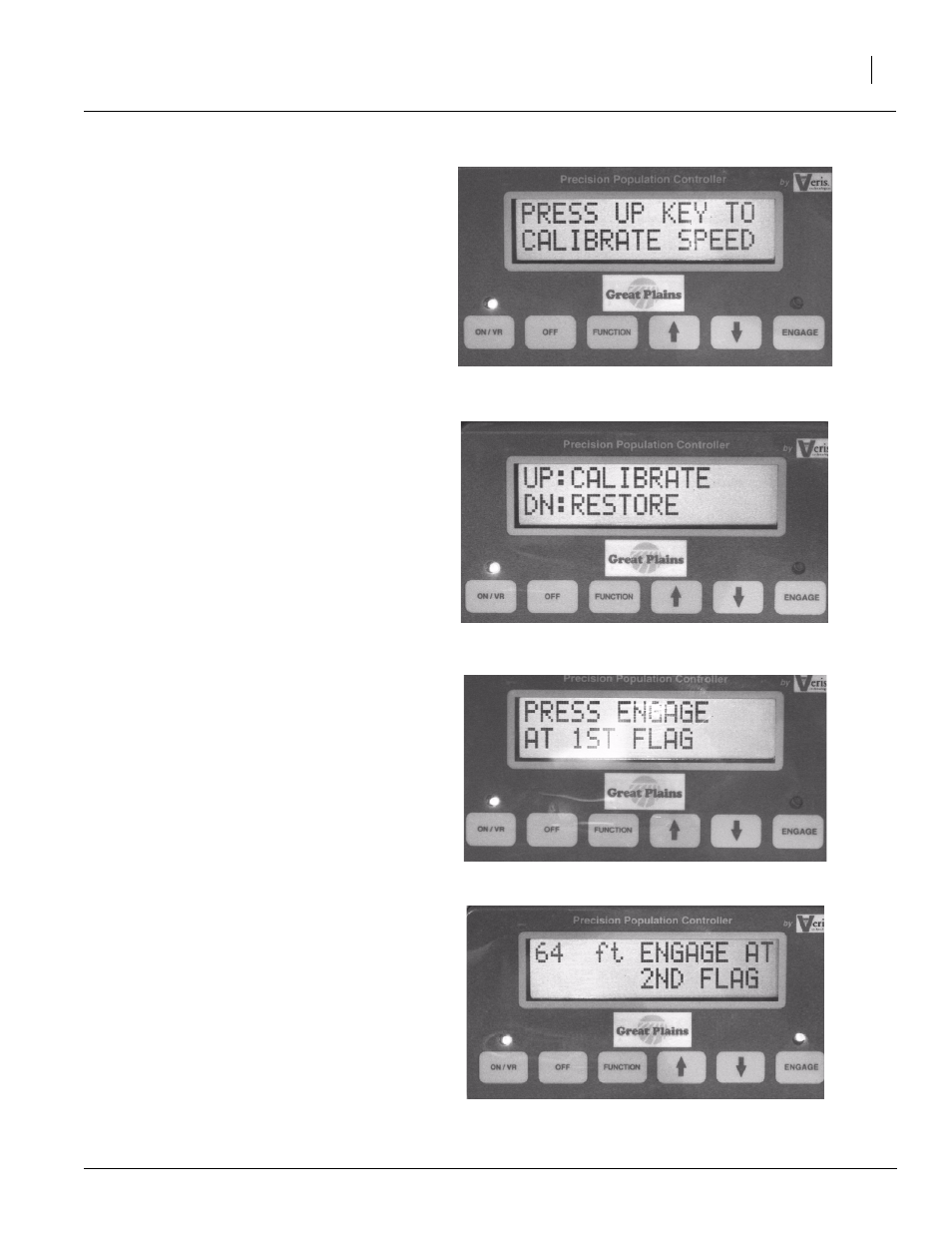

Figure 92
Figure 95
Figure 94
Figure 93
Speed Calibration
In order to fine-tune the default speed calculation
or to convert to radar speed signal, the controller
may be calibrated as follows:
Refer to Figure 92
1. To calibrate the Controller for speed, press
the Function key until the screen appears, as
shown.
Refer to Figure 93
2. Press up to initiate new speed calibration rou-
tine; press down to restore factory default set-
tings.
Refer to Figure 94
3. Set two flags 400’ apart (100 meters if in met-
ric mode). Begin driving at a normal field
speed; when the tractor passes the first flag,
press engage.
Refer to Figure 95
4. The display will show the distance traveled.
