PAK 200i
Manual 0-5335 INSTALLATION 3-7
3.07 Connect Gas Supply Lines

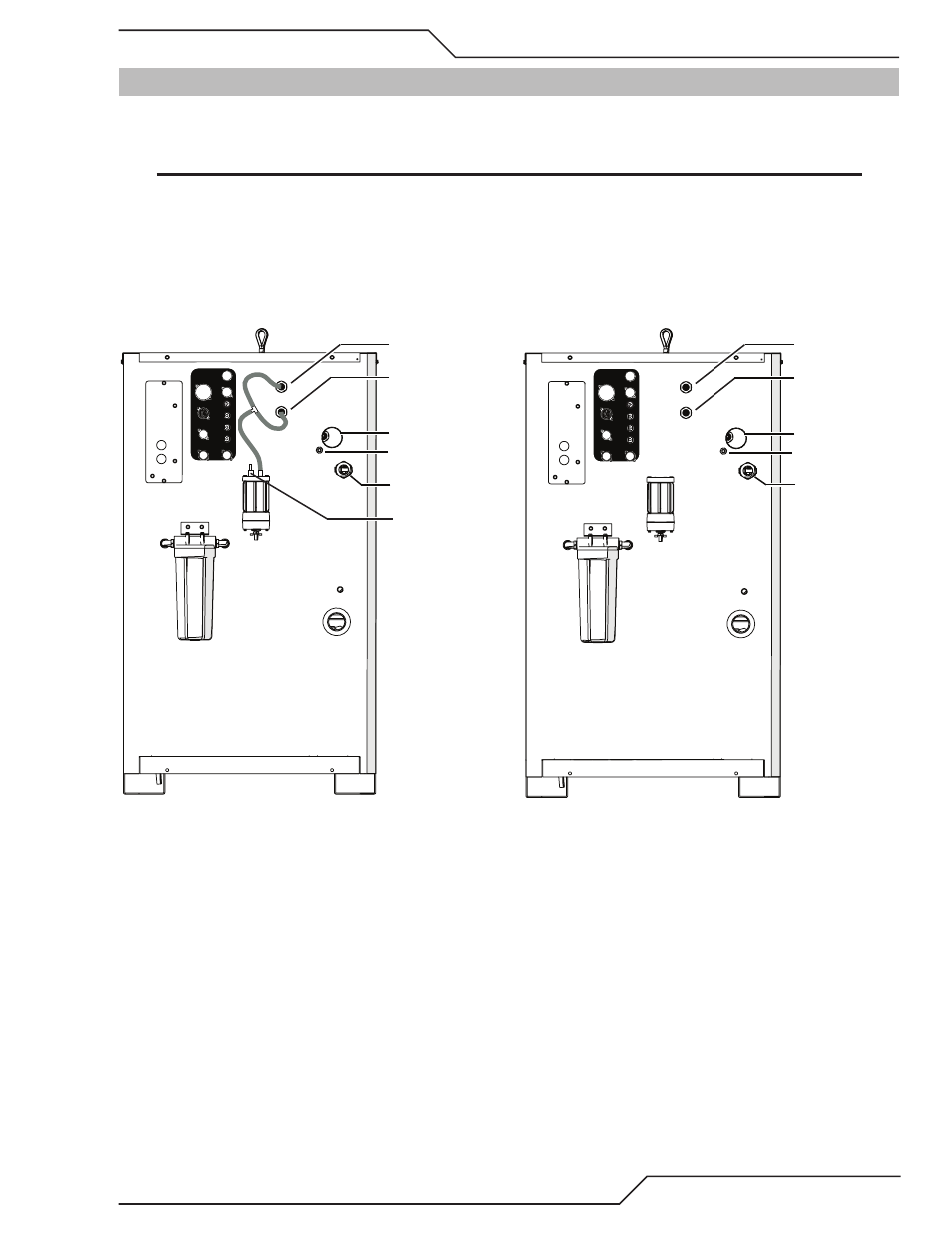

1. Connect the gas supply lines to the appropriate input ports shown below. The first view shows factory
default for using shop air. All other gasses to use the second view, bypassing the two stage air filter.
NOTE
When using shop air, connection must be made through the two stage air filter located in the center of the rear panel.
Do not use the two stage air filter for other gases.
Art # A-12374
Torch Leads Port
Work Cable Port
Shield Gas Port
Plasma Gas Port
Torch Leads
Ground Terminal
J15 - CNC
CB4 - 5A 120 VAC
F1 - 8A SB 230 VAC F2 - 8A SB 230 VAC
CB3 - 5A 24 VAC
CB2 - 5A 120 VAC
USER INPUT
HEIGHT CONTROL
AIR / O2 PLASMA N2 / H35 PLASMA
IN OUT
Shop Air Input
Factory Default Air/Air Using Shop Air
Art # A-12375
Torch Leads Port
Work Cable Port
Shield Gas Port
Plasma Gas Port
Torch Leads
Ground Terminal
J15 - CNC
CB4 - 5A 120 VAC
F1 - 8A SB 230 VAC F2 - 8A SB 230 VAC
CB3 - 5A 24 VAC
CB2 - 5A 120 VAC
USER INPUT
HEIGHT CONTROL
AIR / O2 PLASMA N2 / H35 PLASMA
All Gases Except Air
