Page 30
PAK 200i
3�6
INSTALLATION
Manual 0-5335
3.06 Connect Work Cable

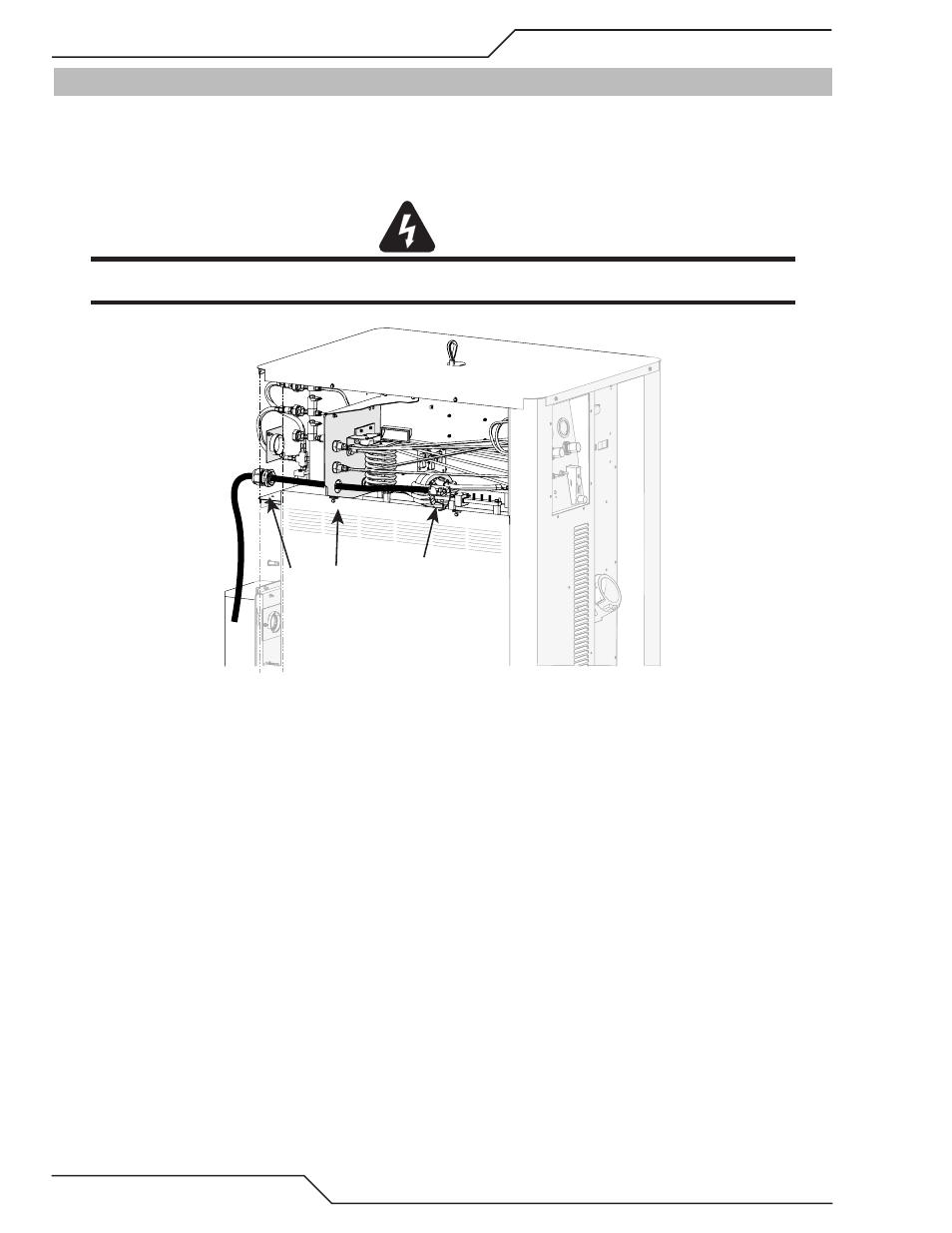

1. Refer to the illustration below. Pass the end of the work cable through the cord grip at the back of the power
supply rear panel, then through the bottom opening in the bulkhead panel.
2. Refer to the illustration below. Connect the lead to the bolt in the first hole on the bus bar as shown. Tighten
securely. Do not overtighten.
WARNING
Ensure that lead attachment hardware is properly sized. Excess length may cause damage if hardware contacts
other parts of the system.
Art # A11951
