PAK 200i
Manual 0-5335 SPECIFICATIONS 2-1
SECTION 2: SPECIFICATIONS
2.01 General Description Of The System
A typical PAK 200i plasma cutting system includes:
• One Power Supply
• General Purpose Plasma Cutting Torch with Connecting Leads
• Torch Spare Parts Kit
The components are connected at installation.
2.02 Plasma Power Supply
The power supply provides the necessary current for cutting operations, and monitors system performance. The
power supply also cools and circulates the liquid coolant for the torch and leads.
2.03 Plasma Cutting Torch
The torch delivers the controlled current to the work through the main arc, causing the metal to be cut.

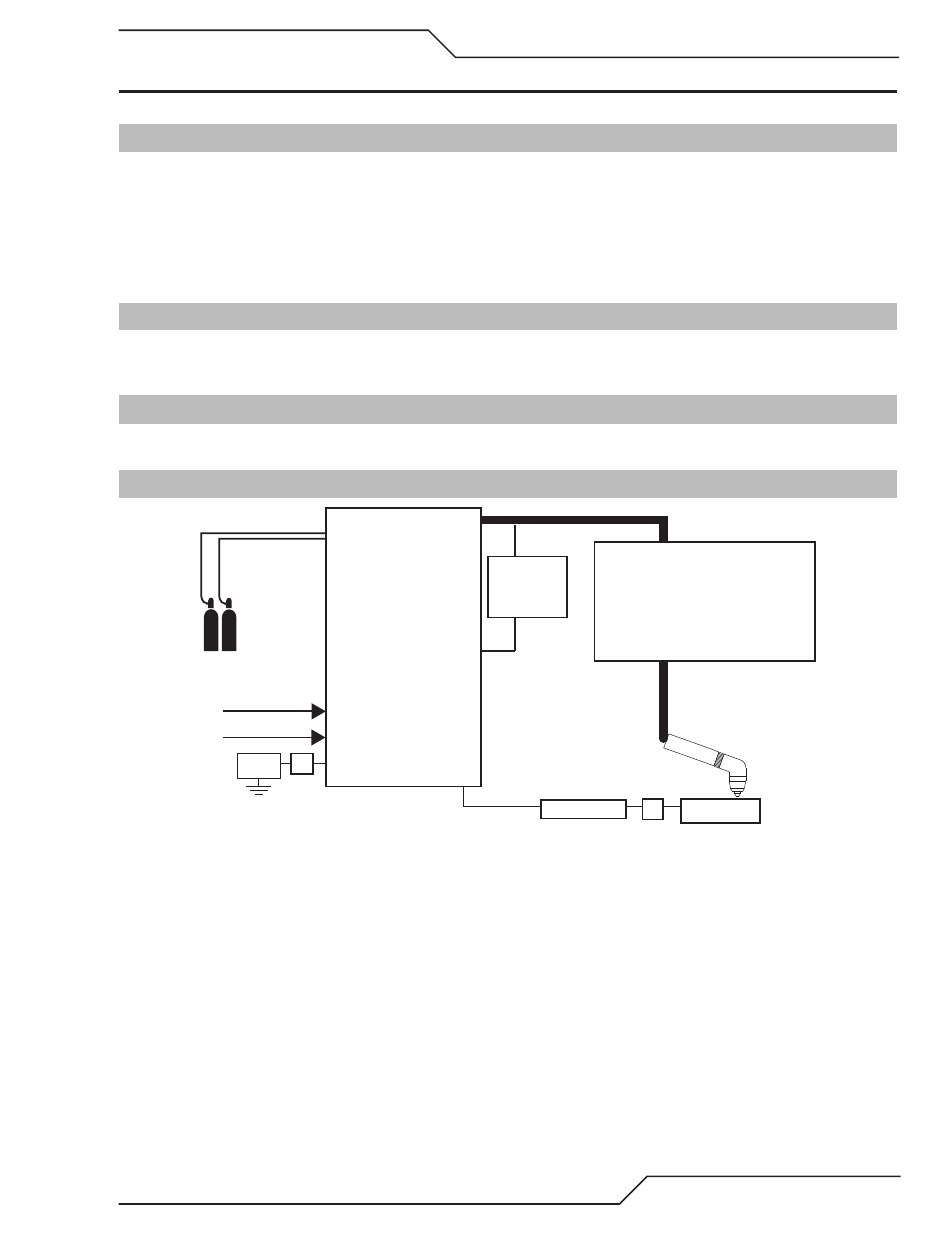

2.04 System Component Layout
Primary power
Ground
Cable
Work
Art # A-12371
Torch
Work Cable O
PAK 200i
Power Supply
G: Torch Lead Set, Shielded
- Coolant Supply w/Negative
- Coolant Return
- Control Cable
- Plasma Gas w/Pilot Return
- Shield Gas
F1
Torch
Control/
Pendant
