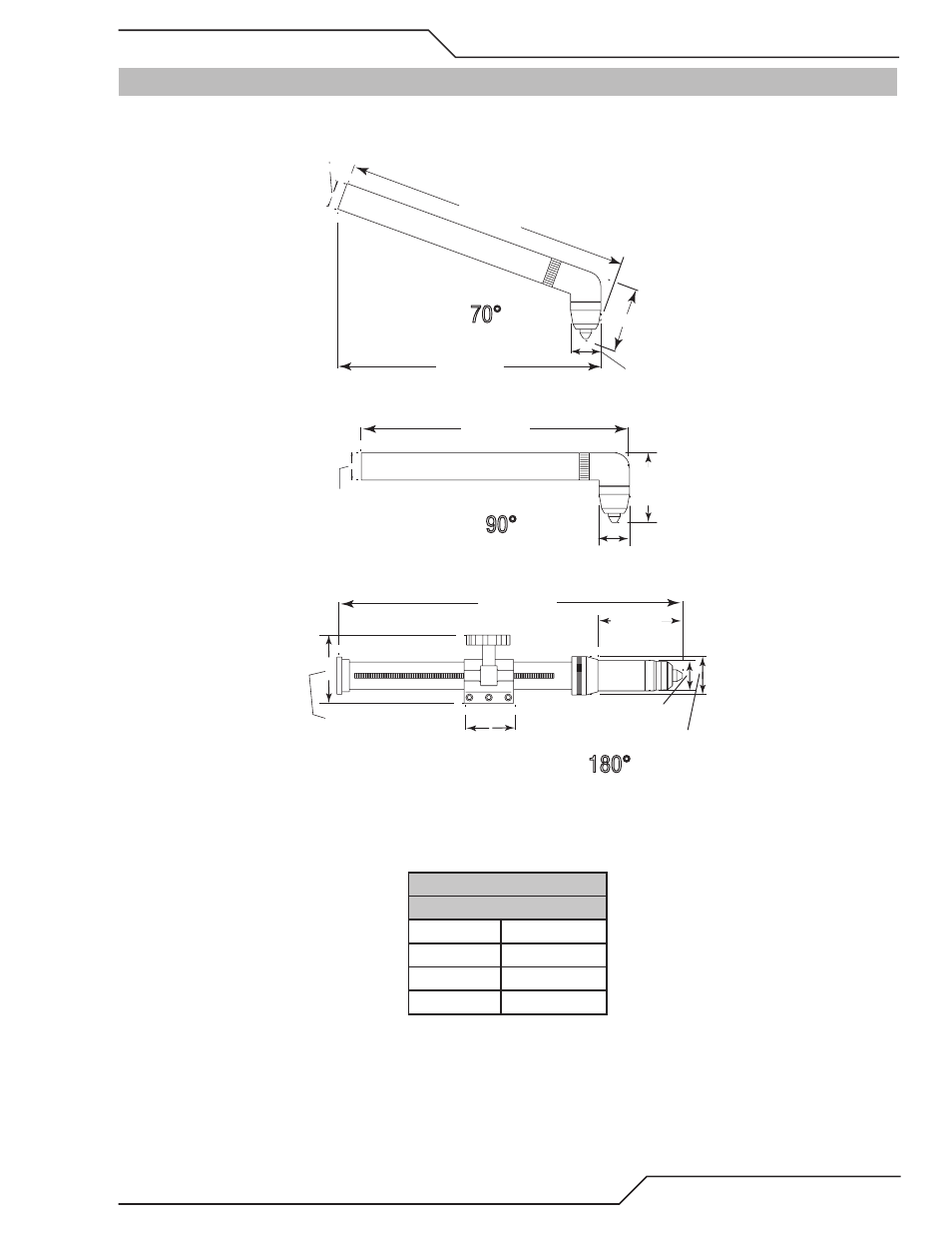

2.09 PCH/M 200 Torch Specifications
A. Torch Dimensions
17.4 in.
4.3 in.
(109.2mm)
2.5 in.
1.5 in.(38.1mm)
1.9 in. (48.3mm)
3.5 in.
14.3 in.
13.3 in.
3.3 in.
1.5 in.
1.4 in.
1.5 in.
1.4 in.
13.5 in.
A-02683
(337mm)
(342.9mm)
(38.1mm)
(363.2mm)
(35.6mm)
(83.8mm)
(38.1mm)
(88.9mm)
(35.6mm)
(44.2mm)
(86.4mm)
(68.5mm)
70°
90°
180°
3.4 in.
Figure 2-9: PCH/M 200 Torch Specifications
B. Torch Leads Lengths
Gas Lead Assemblies
Length
Feet Meters
25 7.6
50 15.2
*100 *30.4
Table 2-10: Gas Lead Assemblies
* Available as custom order.
