PAK 200i
Manual 0-5335 INSTALLATION 3-5

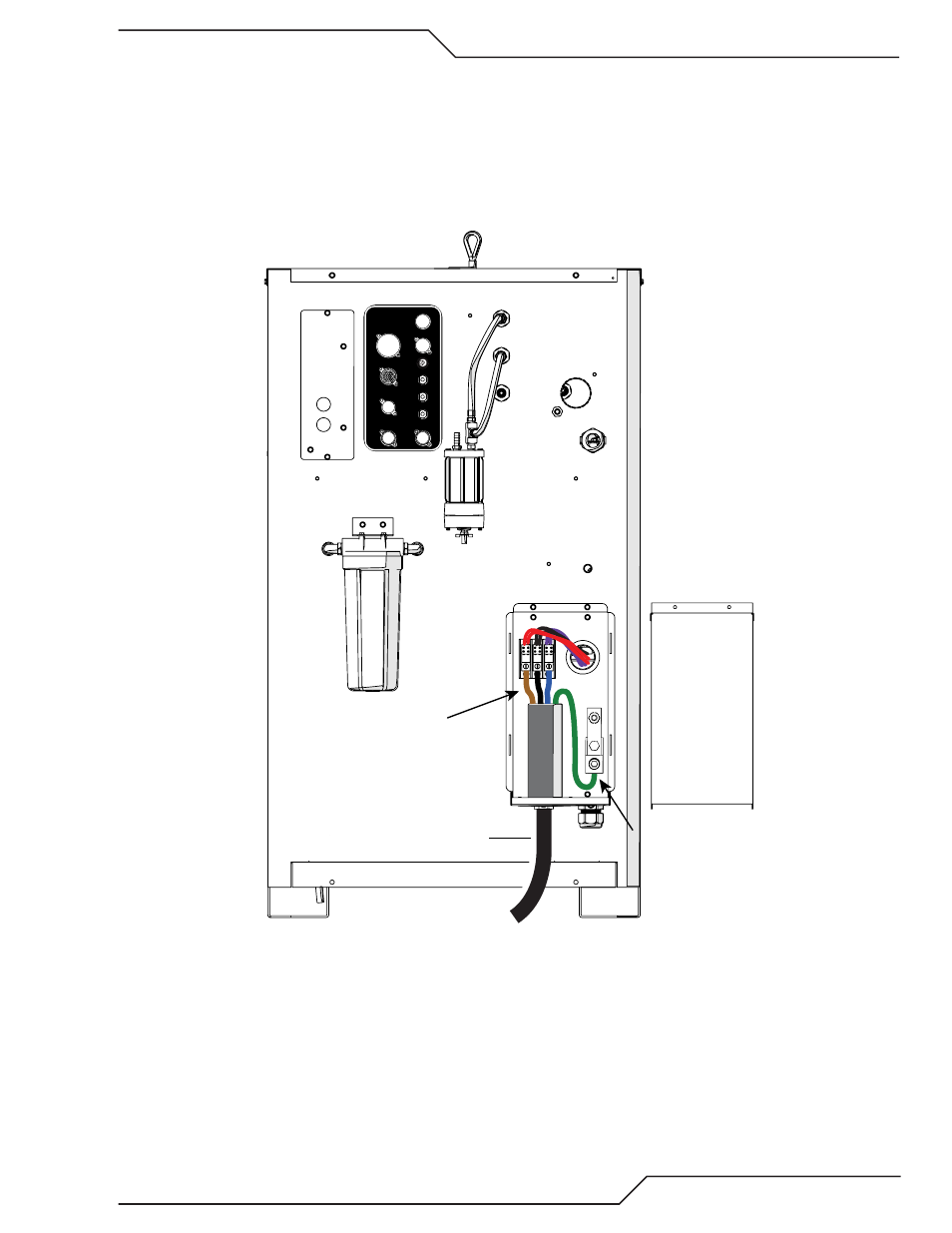

Connect Input Power and System Ground Cables for 400V CE systems
1. Remove the input power cover to the right of the coolant filter at the rear of the power supply. To do this
remove the two screws then lift up and pull away.
2. Carefully cut back the outer sheath on the primary input power cable to expose the individual wires. Cut
back the insulation on the individual wires. Route the cable upward through Input Power Port at the bottom
of the panel. There are 2 extra plates included at the cable entrance. Discarding one or both allows changing
the opening size for larger cable/strain relief.
J15 - CNC
CB4 - 5A 120 VAC
F1 - 8A SB 230 VAC F2 - 8A SB 230 VAC
CB3 - 5A 24 VAC
CB2 - 5A 120 VAC
USER INPUT
HEIGHT CONTROL
AIR / O2 PLASMA N2 / H35 PLASMA
Input Power
Art # A-11949
3. Install stripped end of 3 phase wires into the terminal block L1, L� and L3 and connect the individual cables
as shown.
