IMPORTANT INFORMATION:
Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances. These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these devices to ensure compliance.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at
www.soundoffsignal.com/sales-support.
If you have questions regarding this product, contact
Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800338.7337 (press #4 to skip the automated message).
Questions or comments that do not require immediate attention may be emailed to
SUPERIOR CUSTOMER RELATIONSHIPS. SMARTLY DESIGNED LIGHTING & ELECTRONIC SOLUTIONS.
nFORCE™ LED Lightbar
nForce Lightbar 05.14
POWER SPECIFICATIONS
Input Voltage Range:
10 -16 Vdc
Light Bar
Component
Current Draw
(Average = Flashing)
Power Consumption
(Watts)
Standby Current
Ignition ON
Ignition OFF
Ignition ON
Ignition OFF
0.010 Amps
0.002 Amps 0.13 Watts
0.03 Watts
Reverse Polarity
Protected
Load Dump
Protected
Wiring
Power Cable 15ft 14 AWG Wires, (+) Red, (-) Black
Data Cable 25ft RJ-45 Type
TECHNICAL SPECIFICATIONS
Material:
Aluminum Base, polycarbonate
outer lenses, ASA/PC top cover.
Roof Attachments:
1/4" bolt Stainless A2
Operating Temperature:
-40º to +65º C
LENGTH
# OF INBOARDS
DIMENSIONS
24"
2
12"D x 2.5"H
inboard
36"
4
42"
5
48"
6
54"
7
60"
8
72"
10

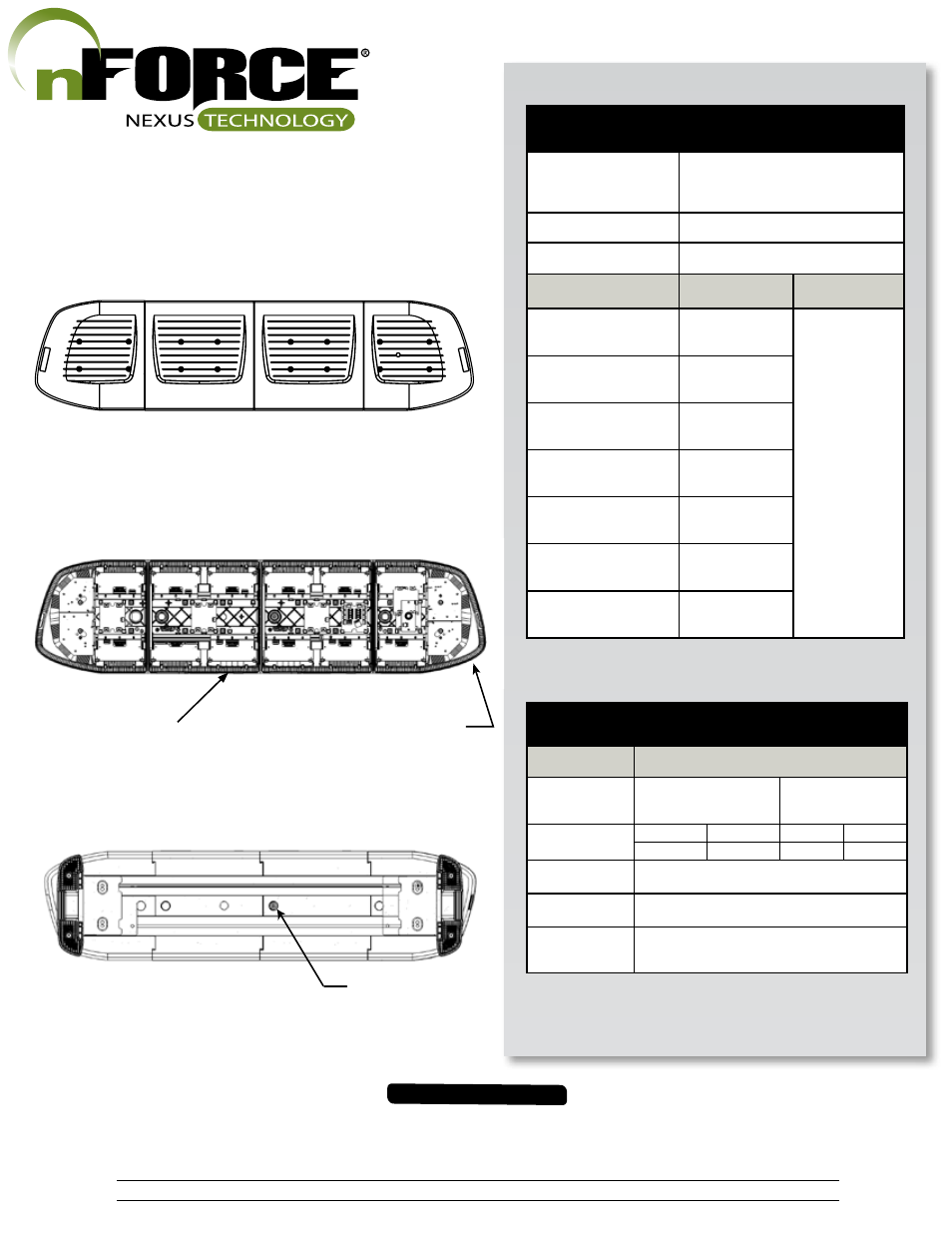

TOP VIEW WITH COVERS ON
CORNER MODULE
TOP VIEW WITH COVERS OFF
INBOARD LED MODULES
BOTTOM VIEW
Wire Exit Holes
REAR
FRONT
REAR
FRONT
REAR
FRONT
3.
