SoundOff Signal XP 63 Deck/Grille Light - Manual

To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product please visit our website at www.soundoffsignal.com and select the “Warranty & Returns”
link along the left column of our home page. If you have questions regarding this product please contact Technical Services, Monday - Friday, 8 am to 5 pm at 1.800.338.7337, press #4 to
skip the automated message. Questions or comments that do not require immediate attention may be emailed to [email protected].
1.800.338.7337. / www.soundoffsignal.com / Thank you for trusting us with your safety!
!
WARNING
This product contains high intensity LED devices.
To prevent eye damage, DO NOT stare into the
light beam at close range.
Please see reverse for
Technical Specifi cations
• Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances.
These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these
devices to ensure compliance.
• DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to your vehicle
Owner’s Manual for the location of any air bag deployment zones.
• DO NOT connect this device to a strobe power supply. This product is self-contained and does not
require an external power supply.
EL6GD(x) 4.09
Important Information:
XP 63 LED LIGHT
EL6GD(x)

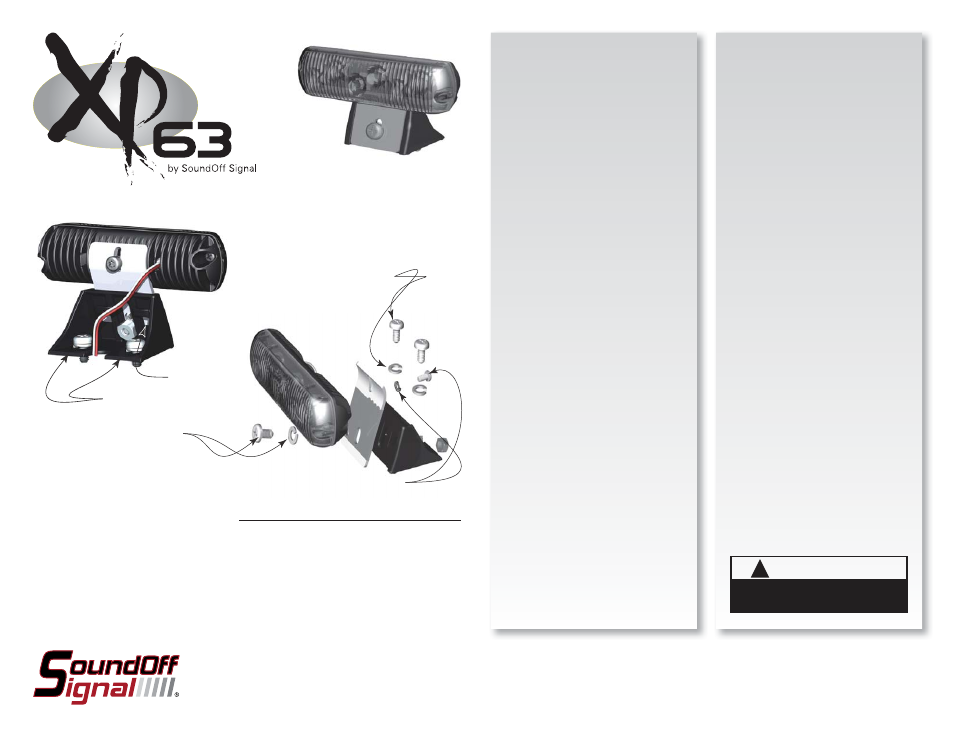

BRACKET MOUNTING
IMPORTANT: DO NOT over tighten mounting
screws or nuts. This could cause permanent
damage to the bracket or case.
NOTE: The XP63 is shipped preassembled.
Some disassembly is required to properly
mount and align light.
1. Locate fl at or slightly arched mounting
location for XP63 Bracket.
2. When position of bracket is determined
mark location of oblong slots assuring that
light will be perpendicular to long axis of
vehicle and drill pilot holes. If wires are to
be routed to interior of vehicle a hole should
be made between the pilot holes. If the
connection is to be made inside the vehicle
this can be a small hole but if the cable is
to pass through the surface it must be large
enough to accommodate the connector.
3. Place bracket over pre-drilled pilot holes
and secure to vehicle using 2-1/4” customer
supplied screws and lock washer (preferably
stainless steel). DO NOT OVER TIGHTEN
SCREWS.
4. Make cable connections as follows:
Red-power, Black-ground. White is for ID
and pattern selection and will be taped
after selection is made. If the fi nal location
of the cable will be inaccessible, ID and
pattern selection must be made before
fi nal installation. Loose wires from the light
should be wrapped under the strain relief in
the base.
5. Light is adjusted by loosening the
vertical and angular adjustment screws
and positioning the light for optimum
performance. Make certain that light is
positioned horizontally and at the desired
height.
OPERATING INSTRUCTIONS
The XP63 comes equipped with its own
selectable 16 pattern fl asher and pattern
memory. When desired pattern is selected,
it will automatically be stored in the unit’s
memory and will come up every time the
light is turned on.
1. Connect the unit’s BLACK wire to a
good, convenient ground.
2. Connect the unit’s RED wire to one side
of a user supplied on/off switch. Connect the
other side of the switch, through a 7.5Amp
fuse, to a source of +12Vdc.
PATTERN SELECTION
1. Turn unit ON.
2. Touching and removing the WHITE wire
to ground will advance the XP63 to the
next fl ash pattern. See fl ash pattern table.
Continuing to touch and remove the WHITE
wire to ground will allow you to scroll
through the pattern list. After pattern #16
is reached the list will start over again at
pattern #1.
NOTE: The unit is equipped with fl ash
pattern memory. Once you have selected a
pattern the unit will always activate to that
pattern every time the unit is turned on. Tape
up and secure WHITE wire so that it will not
accidentally change your selected pattern.
Oblong Slots
Strain Relief
1/4” Screw and Lock Washers
(customer supplied)
Screw and Lock Washer
for vertical adjustment
Screw and Lock Washer
for angular adjustment
