EP2SGS1(x) 02/08

WARNING

: Warning devices are strictly

regulated and governed by Federal, State and
Municipal ordinances. These devices shall be
used ONLY on approved vehicles. It is the sole
responsibility of the user of these devices to
ensure compliance.

SINGLE EXTERIOR DECK / GRILLE

WARNING SYSTEM

ASSEMBLY INSTRUCTIONS

EP2SGS1(x)

BRACKET MOUNTING

Important: DO NOT over tighten
mounting screws or nuts. This could
cause permanent damage to the bracket
1. Locate flat mounting location for

Predator II Light Bracket.

2. When position of bracket is determined

use supplied template for hole
locations.

3. Drive in Customer Supplied Hex Head

screws. Leave about a 1/16” space
between the mounting surface and
underside of screw head.

4. Place Light over screws using the

holes in brackets and slide to the right
to lock the brackets underneath the
head of the bolts.

5. Using a open-end wrench, tighten the

hex head bolts down tight to secure
the light to the mounting surface.

6. Adjust angle of the light to best suit

your application by loosening the 2
nuts on either end of the light.

7. After the Predator is set to the desired

angle, tighten the 2 nuts on either end
of the light. DO NOT OVER TIGHTEN
nuts as damage to bracket or light can
occur. Tighten nut until snug plus 1/8
turn.

8. Make electrical connections using the

following instructions.

!

WARNING

This product contains high intensity LED

devices. To prevent eye damage, DO NOT

stare into light beam at close range.

NOTE: The PREDATOR II is a factory

sealed unit that CANNOT be serviced
in the field. Any attempt to gain
access to the PREDATOR II unit will
most likely cause permanent damage
and void its warranty.

IMPORTANT: DO NOT connect this

device to a strobe power supply.

OPERATING INSTRUCTIONS

See setup procedure on second page.

The single Predator II comes equipped

with an internal flasher with 33 user
selectable patterns that can be
synchronized either alternating or
simultaneous with up to three other lights.
It can also be put into slave mode and
driven through an external flasher.

1. Connect the PREDATOR II BLACK wire

to a good, convenient ground.

2. Connect the PREDATOR II RED wire to

one side of a user supplied on/off switch.
Connect the other side of the switch,
through a 5Amp fuse, to a source of
+10-30Vdc.

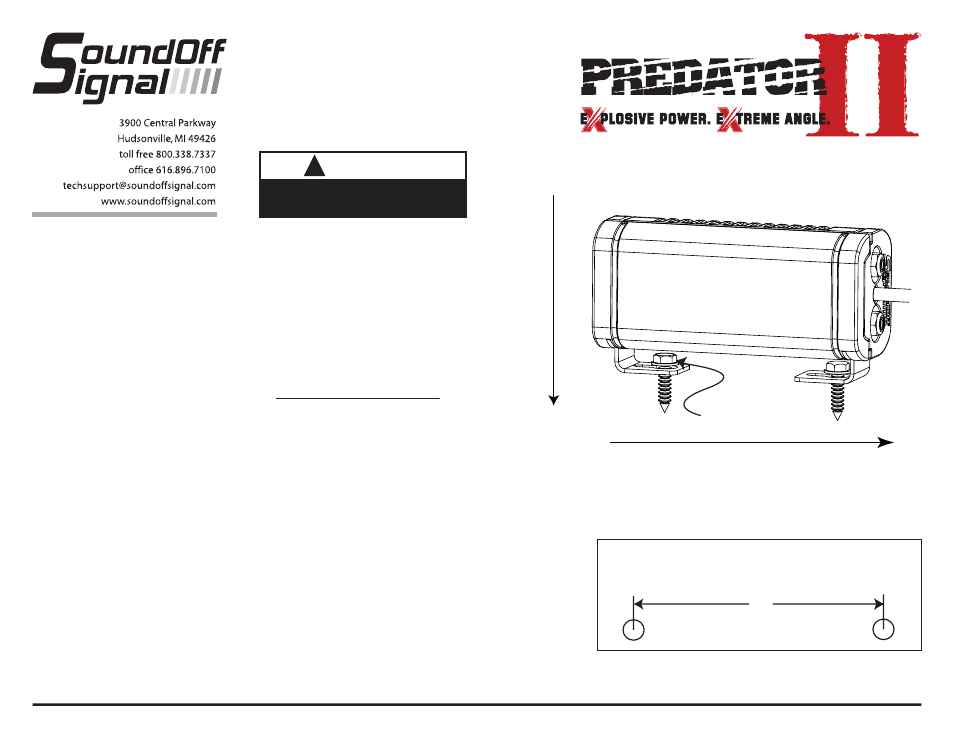

Install Screws (user supplied)
first using template on back

Plac

e Light o

v

er scr

ews using k

e

y

w

a

y

in br

ack

e

ts

Slide Light to the Right and tighten screws using box end wrench

SCREW PLACEMENT DRILL TEMPLATE

(Be sure to use appropriate drill size for your screw size)

2.77
