SoundOff Signal Caprice-Ghost Compass Light User Manual
Warning, Compass fender light, Fig. 1 fig. 2 fig. 3
1.800.338.7337 / www.soundoffsignal.com
ECPGHKC1B(xx) 11.12
!
WARNING
This product contains high intensity LED devices. To
prevent eye damage, DO NOT stare into the light
beam at close range.

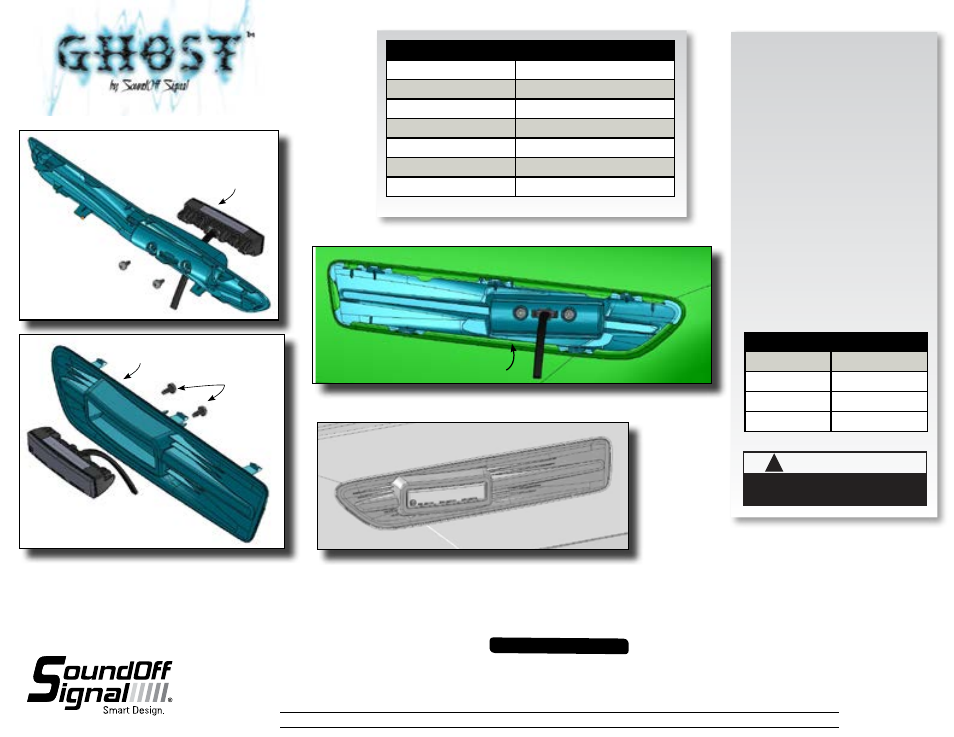

COMPASS FENDER LIGHT
ECPGHKC1B(xx) - GM CAPRICE
- Fender Light pre-assembly -
- Fender Light pre-assembly -
Fig. 1
Fig. 2
Fig. 3
Trim Panel
Ghost
Light Assembly
#10-16 Torx
Screws 2x
-View from inside of fender-
Mounting clips must rest on
inside edge of body opening.
INSTALLATION:
1. Remove the vent panel from the vehicle
per manufacturers instructions.
2. Run the Ghost Light cable through the wire
hole in the Trim Panel.
3. Install the Ghost Light in the
Trim Panel. Use the 2 supplied #10 Torx
Screws to attach the Light Assembly to the
Trim Panel. Tighten Snug. See Figure 2.
4. Run the cable assembly into the fender and
install to the power source. See page 2.
5. Snap the Compass Fender Light assembly
to the fender opening. Figure 3.
- Back view -
-View from outside of fender-
Fig. 4
OPERATION:
1 Make secure connections as shown in
Wire Hook-Up Table below.
2 To sync light and make pattern selections
see reverse side.
WIRE HOOK-UP TABLE
WIRE COLOR:
CONNECT TO:
RED
+10-16Vdc
BLACK
Ground (-)
WHITE ID/Pattern Select
TECHNICAL SPECIFICATIONS
Overall Dimensions:
14”L x 2.75”W x 1.5”D
Flash Patterns:
33 flash patterns
Input Voltage Range:
10 - 16 Vdc
Current Consumption:
~0.75 Amps /module*
# of LEDs:
6 Generation 3 LEDs
Light Sync Technology:
Yes
Operating Temperature:
-40º to +65º C
*Pattern Dependent
- Front View -
IMPORTANT INFORMATION:
Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances. These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these devices to ensure compliance.
To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at
www.soundoffsignal.com/sales-support.
If you have questions regarding this product, contact
Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800338.7337 (press #4 to skip the automated message).
Questions or comments that do not require immediate attention may be emailed to
SUPERIOR CUSTOMER RELATIONSHIPS. SMARTLY DESIGNED LIGHTING & ELECTRONIC SOLUTIONS.
