IMPORTANT INFORMATION:

Warning devices are strictly regulated and governed by Federal, State and Municipal ordinances. These devices shall be used ONLY on approved vehicles. It is the sole responsibility of the user of these devices to ensure compliance.

To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at

www.soundoffsignal.com/sales-support.

If you have questions regarding this product, contact

Technical Services, Monday - Friday, 8 a.m. to 5 p.m. at 1.800338.7337 (press #4 to skip the automated message).

Questions or comments that do not require immediate attention may be emailed to

[email protected].

SUPERIOR CUSTOMER RELATIONSHIPS. SMARTLY DESIGNED LIGHTING & ELECTRONIC SOLUTIONS.

nFORCE™ LED Lightbar

nForce Lightbar 05.14

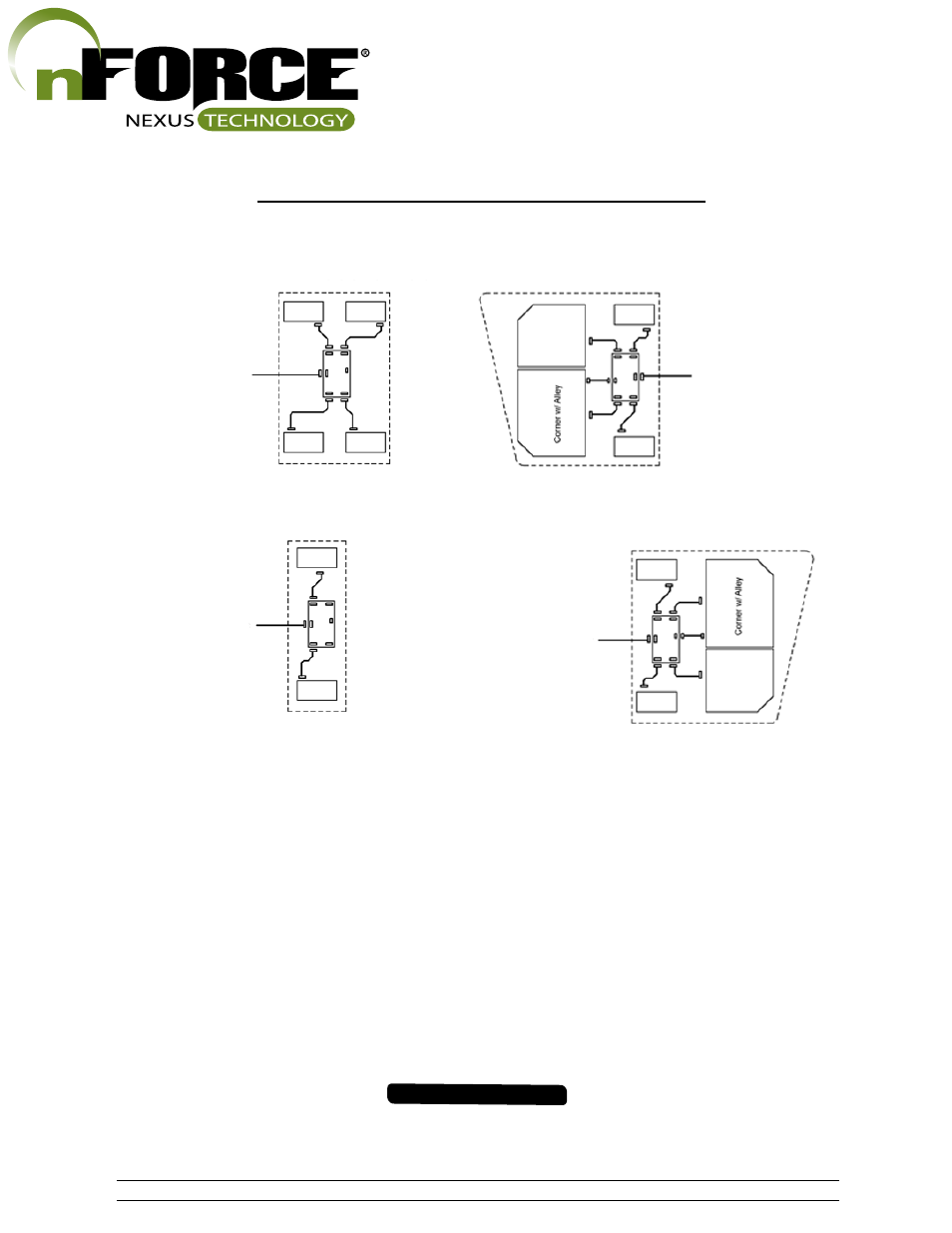

LIGHT MODULE WIRE HARNESS LOCATIONS

REPLACEMENT OF INBOARD AND CORNER MODULES:

1. Disconnect main power.
2. Remove top cover by removing screws.
3. Locate module. If it has a bracket, remove the screw (if no bracket skip this step).
4. Push down on black tab to un-clip the module.
5. Remove connector from rear of module by carefully pulling connector body from back of module.
6. Push module connector into replacement module ensuring locking latch is seated properly or connector is fully seated.
7. Replace screw if the module has a bracket (if no bracket skip this step).
8. Restore power to bar and test new module to ensure functionality.
9. Replace top cover of bar with screws removed in step 2.

12" Inboard Tub

Front

6" Inboard Tub

Front

Driver Side End Tub

Front

Passenger Side End Tub

Front

3 Wire Harness to Power Distribution PCB

11.

Rear
